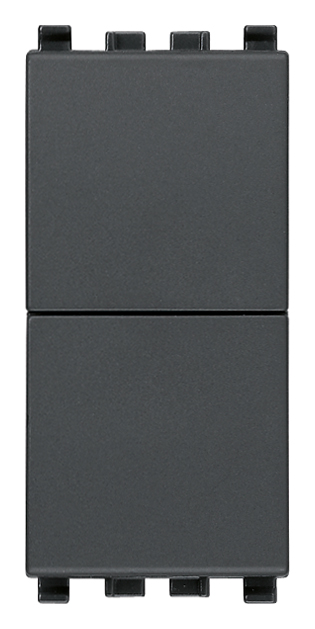

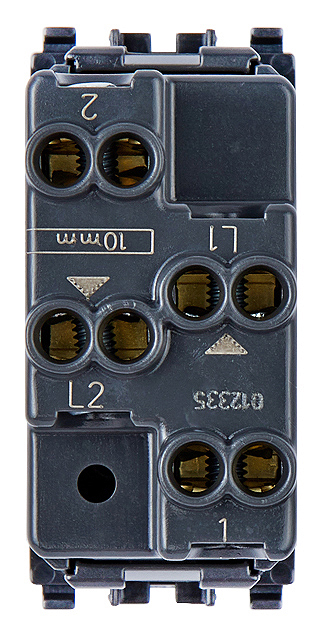

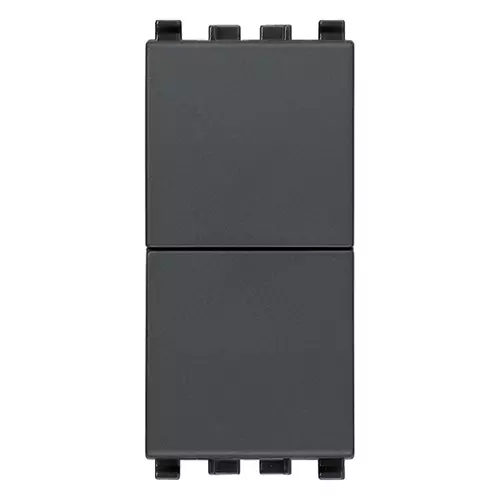

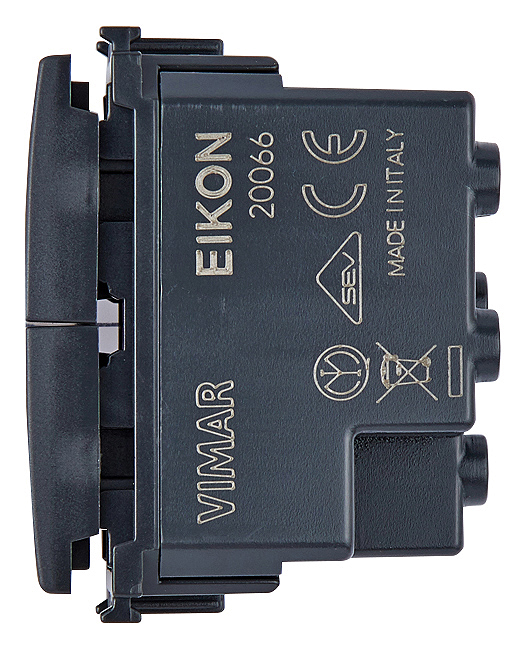

Two independent NO+NO 10A pushes grey
Two independent push buttons, 1P NO + 1P NO 10 A 250 V~, grey. They allow the simultaneous closing of the two circuits and are thus not suitable for reversing motors (roller blinds, gates, etc.)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Contacts
1 make contact (NO)
Number of poles
1
Feedback-signal contact
No
Number of rockers
2
Number of modules (module system)
1
With lighting
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (akin)
7024
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
39,00 mm
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352253247
1 NR
4.1x2.8x5.3 [cm]
33 [g]
Barcode Qty 10 NR
8007352253254
10 NR
14.4x9x6 [cm]
364.93 [g]
Barcode Qty 160 NR
8007352626201
160 NR
37.5x30x13.5 [cm]
6,238.5 [g]
Question: Is it possible to interface the Vimar Due Fili 20557 doorbell with normal buttons?
Answer: Yes, you can connect buttons 20066-20557 with appropriate connection cables.
