Axial 1P 16AX 2-way switch white - 20105.B

Pdf

20105.B
Wiring devices / Traditional wiring devices / EIKON / Devices

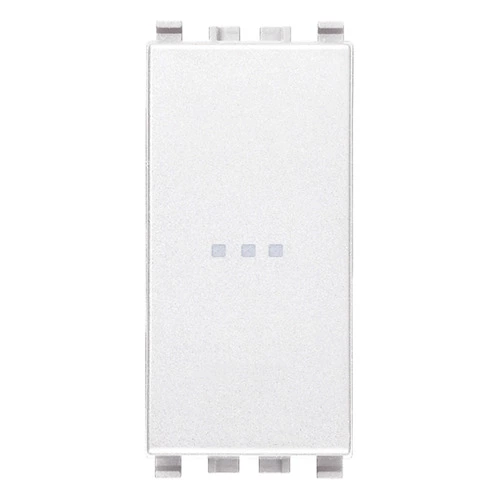

Axial 1P 16AX 2-way switch white
Axial 1P 16 AX 250 V~ 2-way switch, lightable, replaceable button, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
44,00 mm
Built-in depth
34,50 mm

00. CE Marking - EU

14. TSE - Turkey

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

34. PSE - Japan

36. ISI - India

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352459960
1 NR
5.1x2.8x5.3 [cm]
32.1 [g]
Barcode Qty 20 NR
8007352459977
20 NR
27x11.6x6 [cm]
710.7 [g]
Barcode Qty 120 NR
8007352651296
120 NR
37.5x30x13.5 [cm]
4,620 [g]
