2P+E 5A English switch.socket+pilot whit - 20215.L.B

Pdf
20215.L.B

Eikon white / Devices / Controlled socket outlets

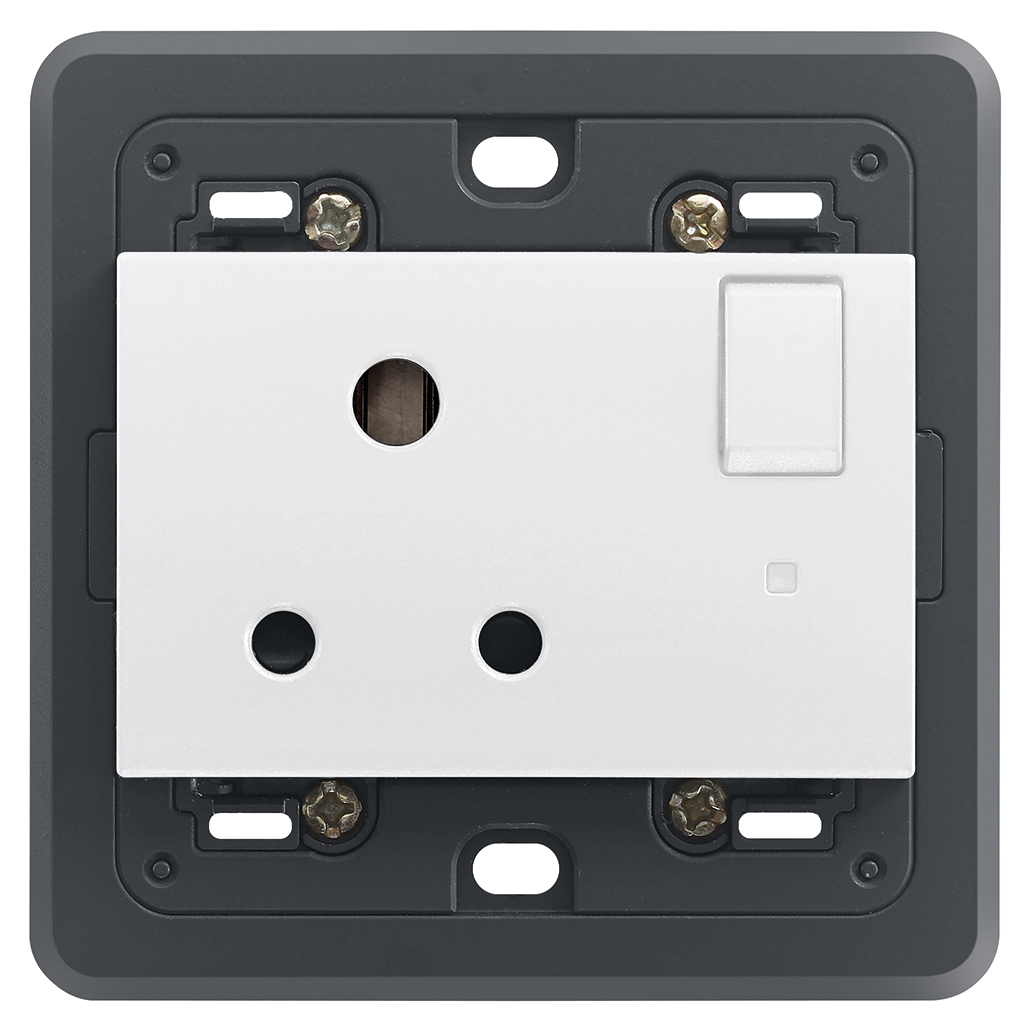

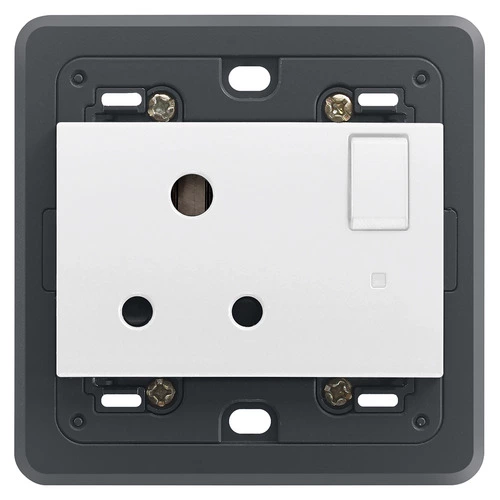

2P+E 5A English switch.socket+pilot whit
2P+E 5 A 250 V~ SICURY socket outlet, English standard, 2P 1-way switch, indicator unit, with built-in mounting frame for 3-module British standard installation, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
With built-in USB power supply
No
Number of units
2
Number of modules (module system)
2
Number of socket outlets switchable
1
Imprint/indication
None

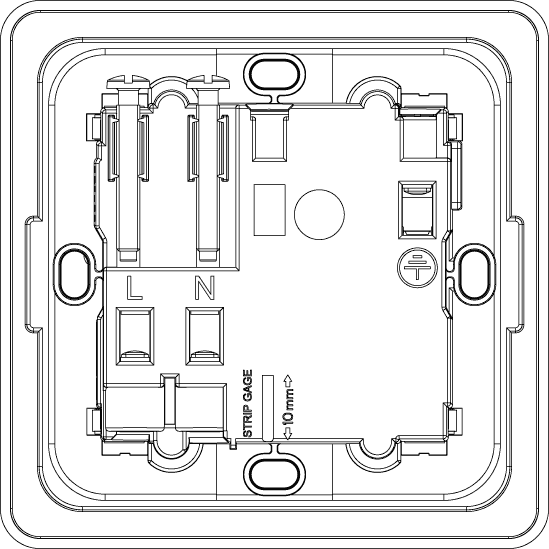

Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
Yes
With loop through function
No
Rotated central insert
No
Nominal current
5 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other

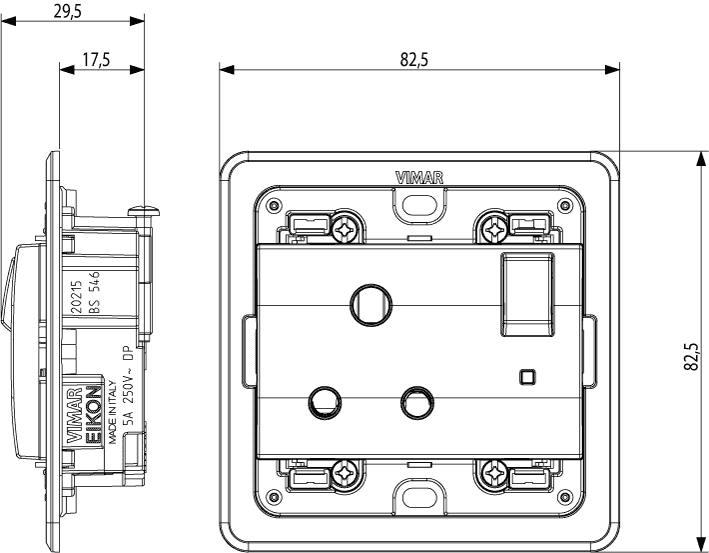

Width of device
82,50 mm
Height of device
82,50 mm
Depth of device
29,50 mm

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352399839
1 NR
8.5x3.9x8.6 [cm]
102.1 [g]
Barcode Qty 10 NR
8007352399846
10 NR
20.7x18.5x9.6 [cm]
1,120 [g]
