2P+E 13A SICURY multi-outlet+switch Next - 20255.N

Pdf
Vimar - 20255.N - 2P+E 13A SICURY multi-outlet+switch Next
Vimar - 20255.N - 2P+E 13A SICURY multi-outlet+switch Next

20255.N
Wiring devices / Traditional wiring devices / EIKON / Devices

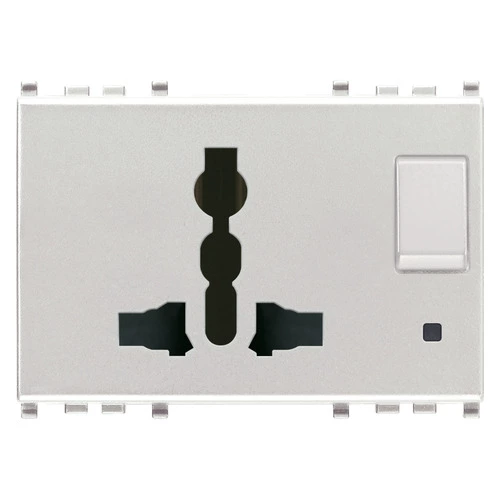

2P+E 13A SICURY multi-outlet+switch Next
2P+E 13 A 250 V~ SICURY socket outlet, multi standard with 1P 1-way switch, lightable, Next - 3 modules

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of modules (module system)
2
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Silver
RAL-number (similar)
9022
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
13 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
67,30 mm
Device height
49,00 mm
Device depth
31,10 mm

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352598669
1 NR
5.3x3.9x7.6 [cm]
70 [g]
Barcode Qty 10 NR
8007352598676
10 NR
28.1x13.1x6 [cm]
781.8 [g]
Barcode Qty 120 NR
8007352717282
120 NR
38.5x29x30 [cm]
9,381.6 [g]
