1P+N C6 120-230V CB grey - 20405.06

Pdf

20405.06
Wiring devices / Traditional wiring devices / EIKON / Devices

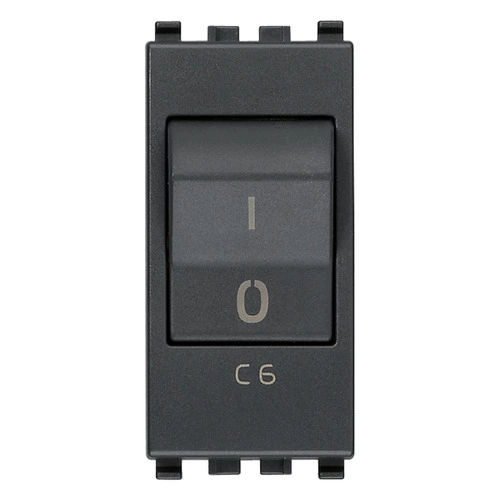

1P+N C6 120-230V CB grey
1P+N C 6 circuit breaker, supply voltage 120-230 V~ 50-60 Hz, breaking capacity 1500 A, grey

Product Status
3 - Active

Drawings

Class group
Circuit breakers and fuses
Class
Miniature circuit breaker (MCB)
Built-in depth
38,00 mm
Release characteristic
C
Number of poles (total)
2
Number of protected poles
1
Rated current
6 A
Rated voltage
230 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
1,50 kA
Voltage type
AC
Frequency
50 - 60 HZ
Current limiting class
1
Concurrently switching neutral conductor
Yes
Over voltage category
3
Width in number of modular spacings
1
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352257559
1 NR
6x2.8x5.3 [cm]
54.47 [g]
Barcode Qty 5 NR
8007352257566
5 NR
14.2x6.7x5.9 [cm]
303 [g]
