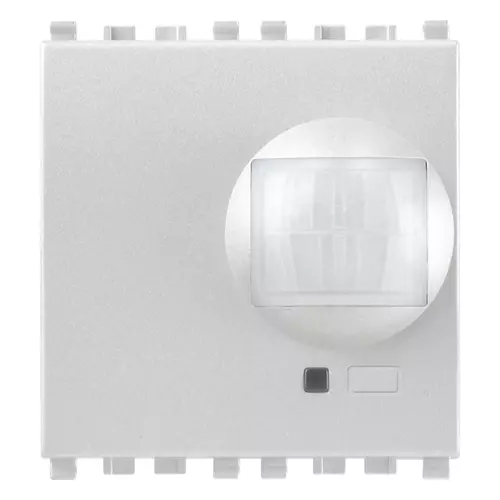

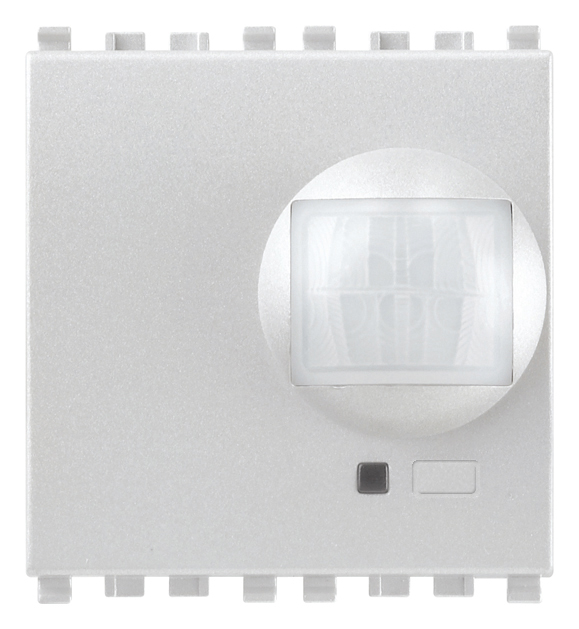

By-alarm - IR+microwaves detector Next
By-alarm passive infrared and microwave motion detector, Next – 2 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (610 kb)
• Full Multilanguage instructions sheet (1194 kb)
• Feuille d’instructions (1008 kb)
• Anwendungshinweise (1010 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Alarm installations, emergency call and signalling

Class
Movement detector for danger detection system

Type of messaging
Infrared/microwave (Dual)

Mounting method
Built-in

Operating current
28,00 mA

Operating voltage
12,00 - 12,01 V

Height
49,00 mm

Width
44,80 mm

Depth
43,50 mm

Characteristic
Other

Cover monitoring
Yes

Radio system
No

00. CE Marking - EU

21. IMQ-SICUREZZA - Italy

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352548787

1 NR

11.2x9.6x9.8 [cm]

114.2 [g]

8007352648401

18 NR

37.5x30x21 [cm]

2,492 [g]
