Table frame 8M grey - 20788

Pdf
20788

Eikon / Mounting boxes / Table mounting

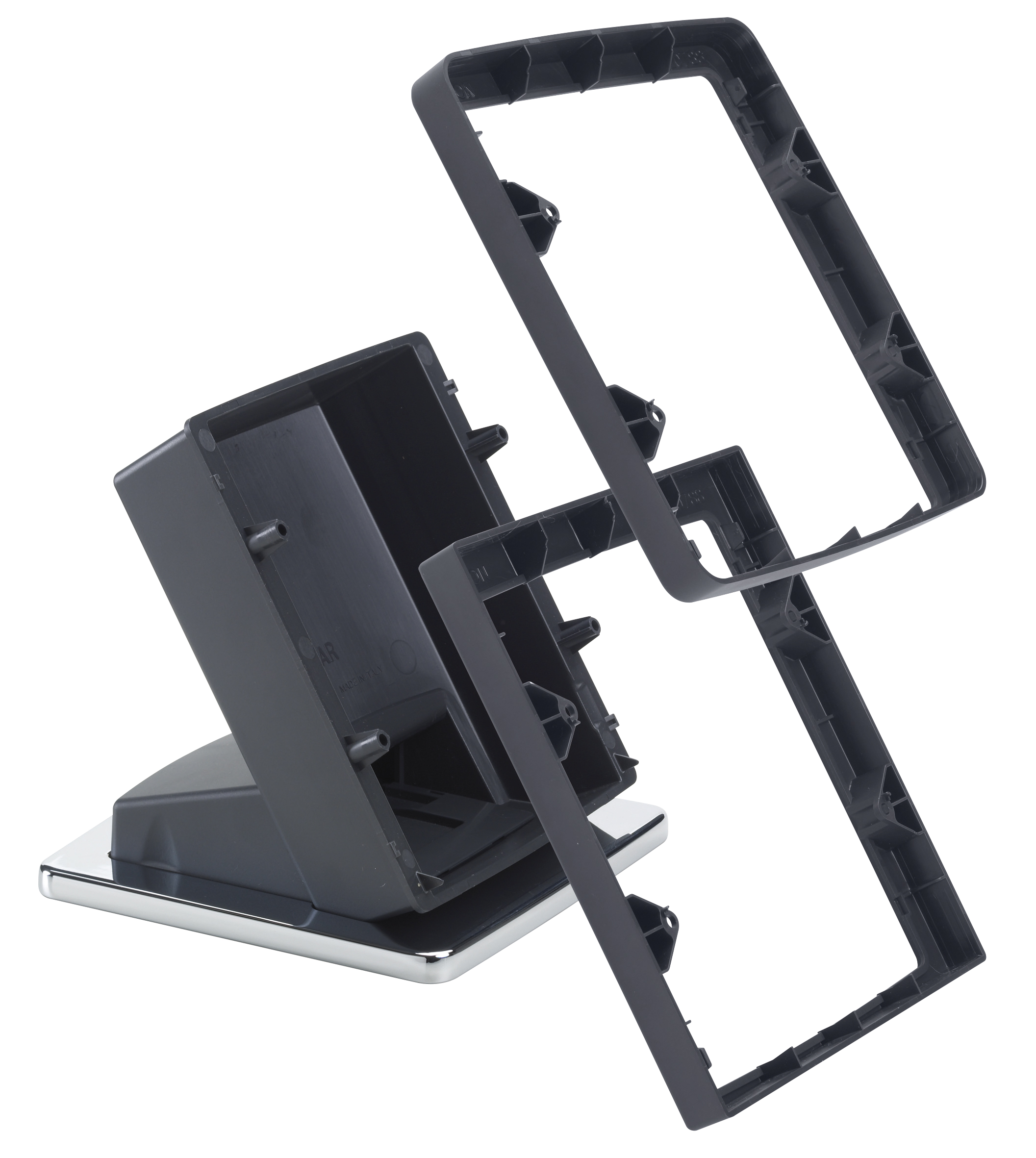

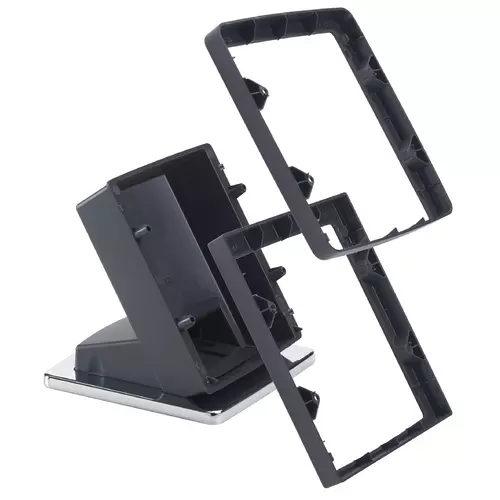

Table frame 8M grey
Table mounting box, 8(4+4) modules, grey. Delivered with frame for Eikon Classic or Round cover plate

Product Status
3 - Active

Class group
Domestic switching devices
Class
Surface mounted housing for flush mounted switching device
Assembly arrangement
Other
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
8
Number of units
8
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
With cover frame
No
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20
Width of device
142,30 mm
Height of device
150,30 mm
Depth of device
134,00 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352353961
1 NR
19x16.5x13 [cm]
1,003 [g]
