Frame 8M with screws - 21618

Pdf
21618

Eikon / Mounting frames / For rectangular boxes

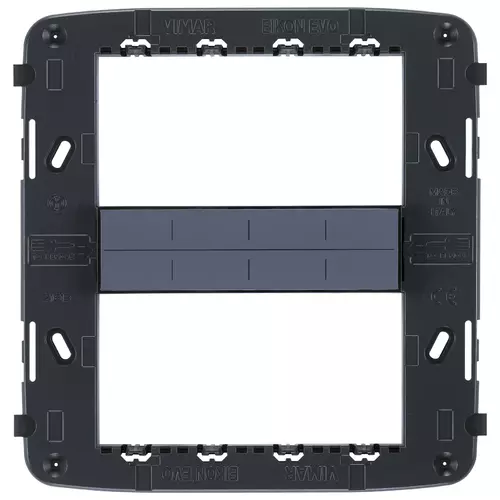

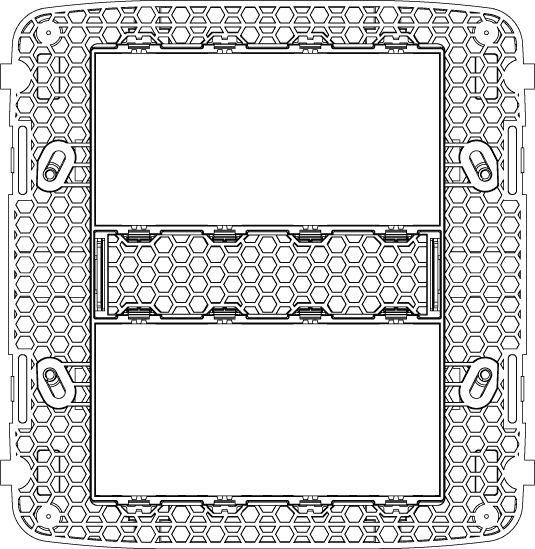

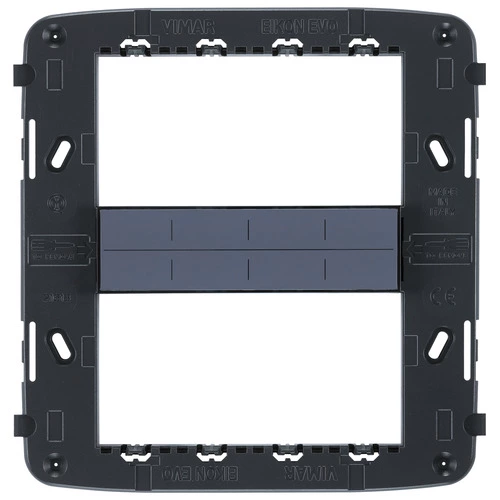

Frame 8M with screws

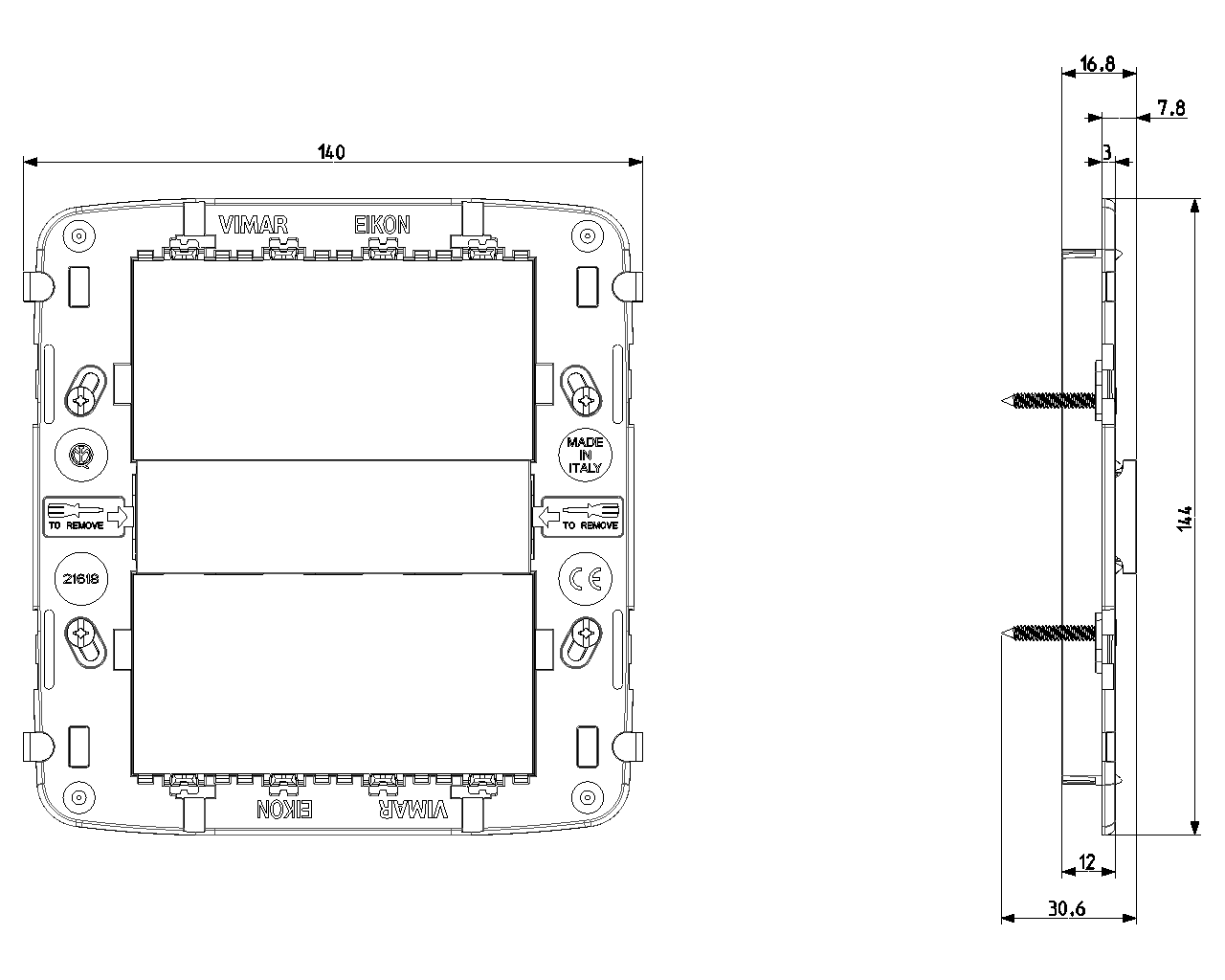

8 (4+4)-module mounting frame, with screws, for V71318 and V71718 flush and 20788 table mounting boxes

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush mounted (plaster)
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Suitable for flush-mounted installation
Yes
Suitable for floor box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352425545
1 NR
14x14.4x1.7 [cm]
53.7 [g]
Barcode Qty 5 NR
8007352425552
5 NR
17.5x16.3x9.8 [cm]
359.4 [g]
