Plate 4M (2+2) 71mm glass milky white - 22643.71

Pdf

22643.71
Wiring devices / Traditional wiring devices / EIKON / Cover plates

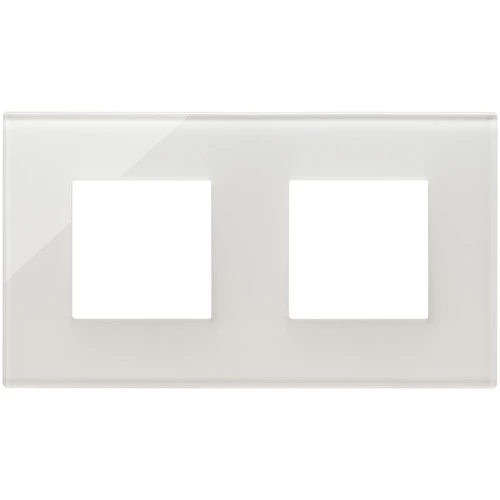

Plate 4M (2+2) 71mm glass milky white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Glass
Halogen free
Yes
Surface protection
Other
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9010
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
161,00 mm
Height
90,00 mm
Depth
11,60 mm
Built-in width
161,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352669161
1 NR
20x11.4x3.2 [cm]
174.9 [g]
Barcode Qty 35 NR
8007352669178
35 NR
38x34x24 [cm]
6,640 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
