1P 10AX 2M axial 2-way switch mechanism - 30004.2

Pdf

30004.2
Wiring devices / Traditional wiring devices / LINEA / Devices

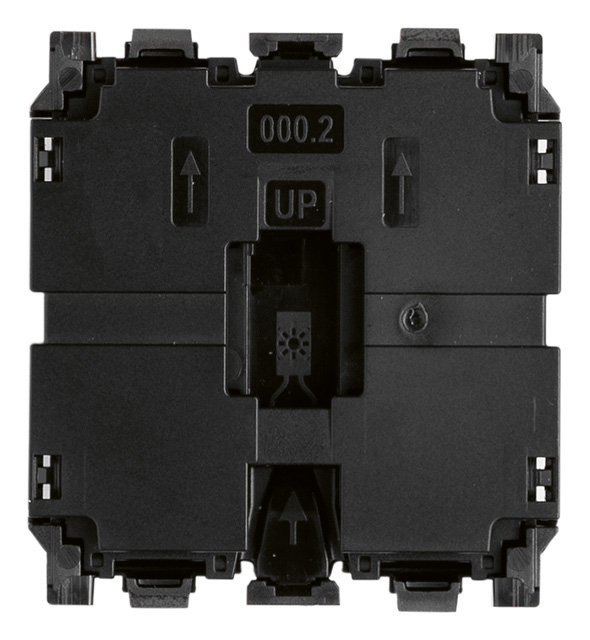

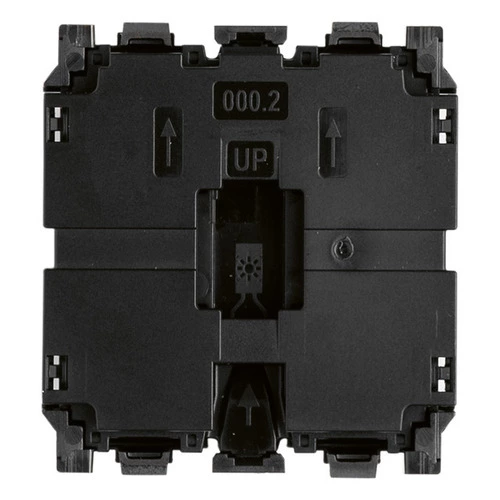

1P 10AX 2M axial 2-way switch mechanism
1P 10 AX 250 V~ lightable 2-way switch mechanism, to be completed with 2-module button - 2 modules. Max 100 W for lamps with built-in power supply unit (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

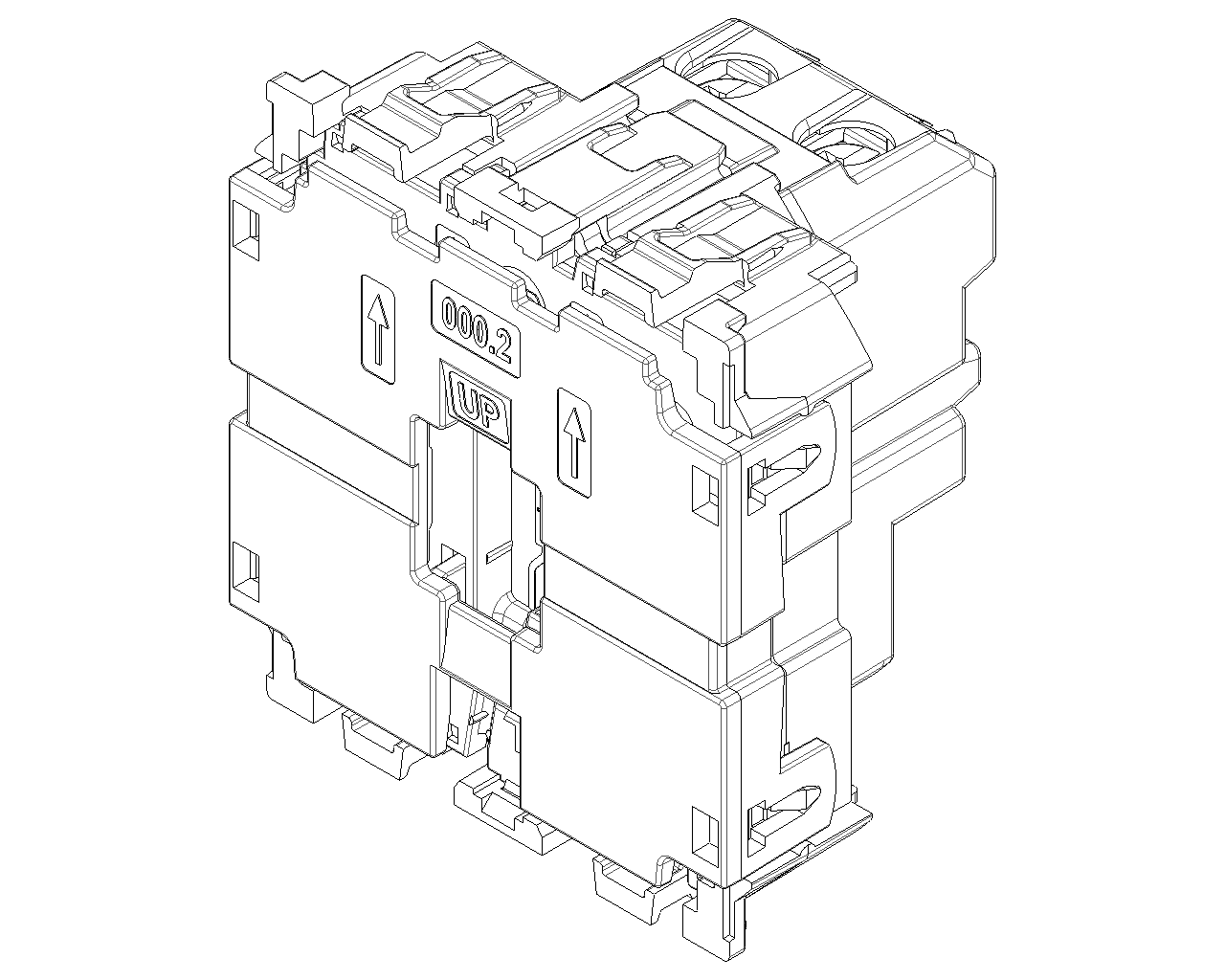

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7021
Label space/information surface
No
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 V
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No

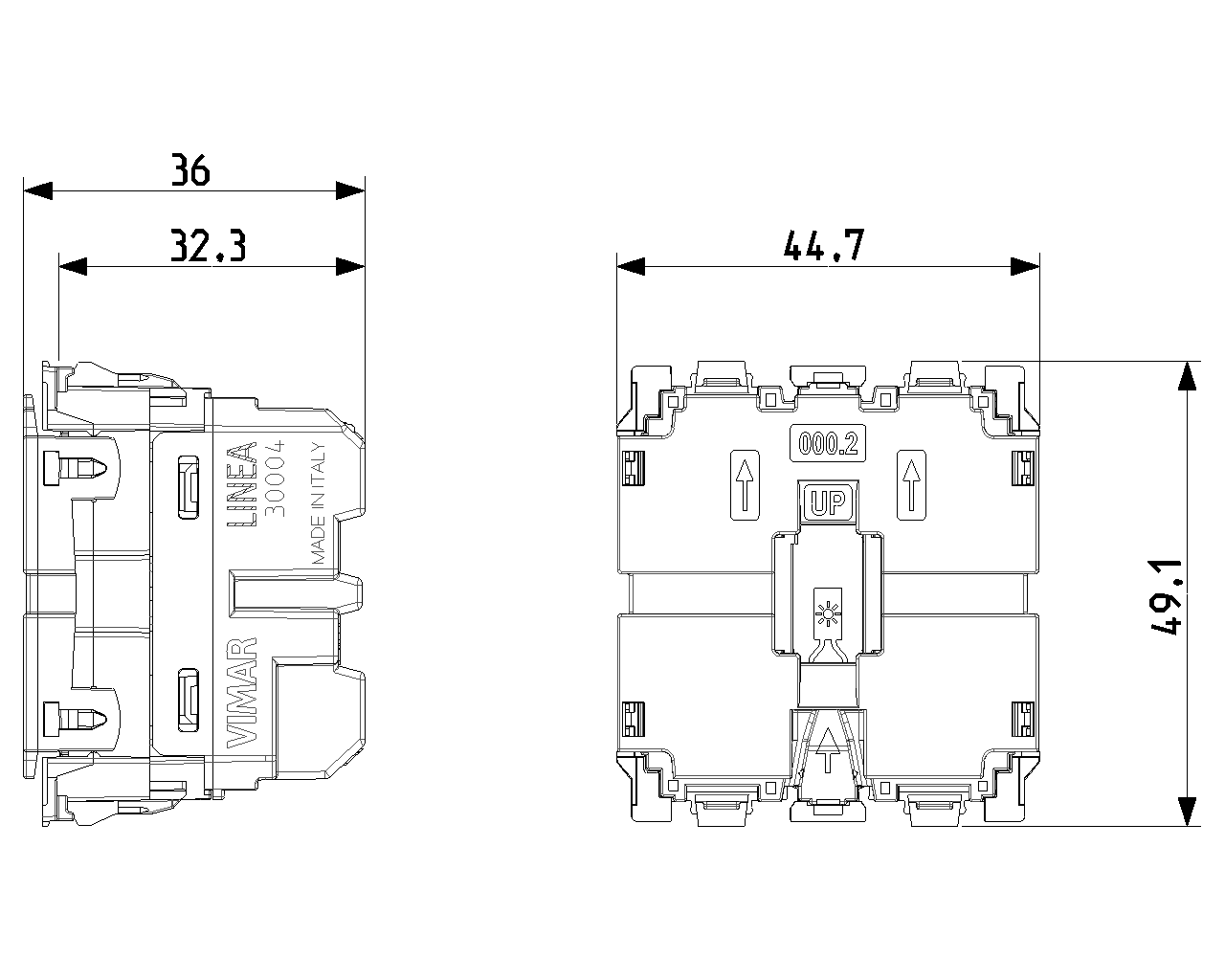

Device width
44,70 mm
Device height
49,10 mm
Device depth
36,00 mm
Built-in depth
32,30 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352714755
1 NR
5.2x4.3x5.6 [cm]
38.22 [g]
Barcode Qty 20 NR
8007352714762
20 NR
23x11.2x12.8 [cm]
864.2 [g]
Barcode Qty 120 NR
8007352714779
120 NR
35x25x24 [cm]
5,550 [g]
