30016.2B
Wiring devices / Traditional wiring devices / LINEA / Devices

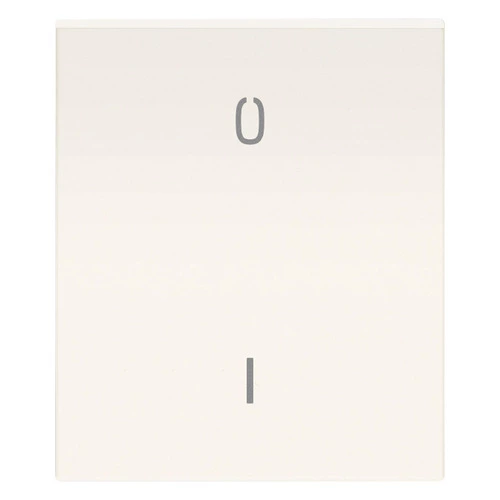

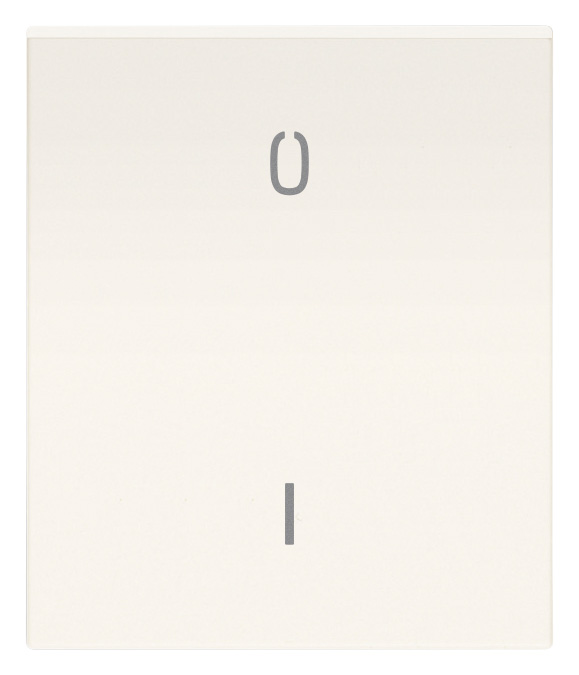

2M 2P 20AX rocker switch white
2P 20 AX 250 V~ 1-way switch, lightable, white - 2 modules. Max 250 W for lamps with built-in power supply unit (IEC 60669-1:2017)
Product Status
3 - Active

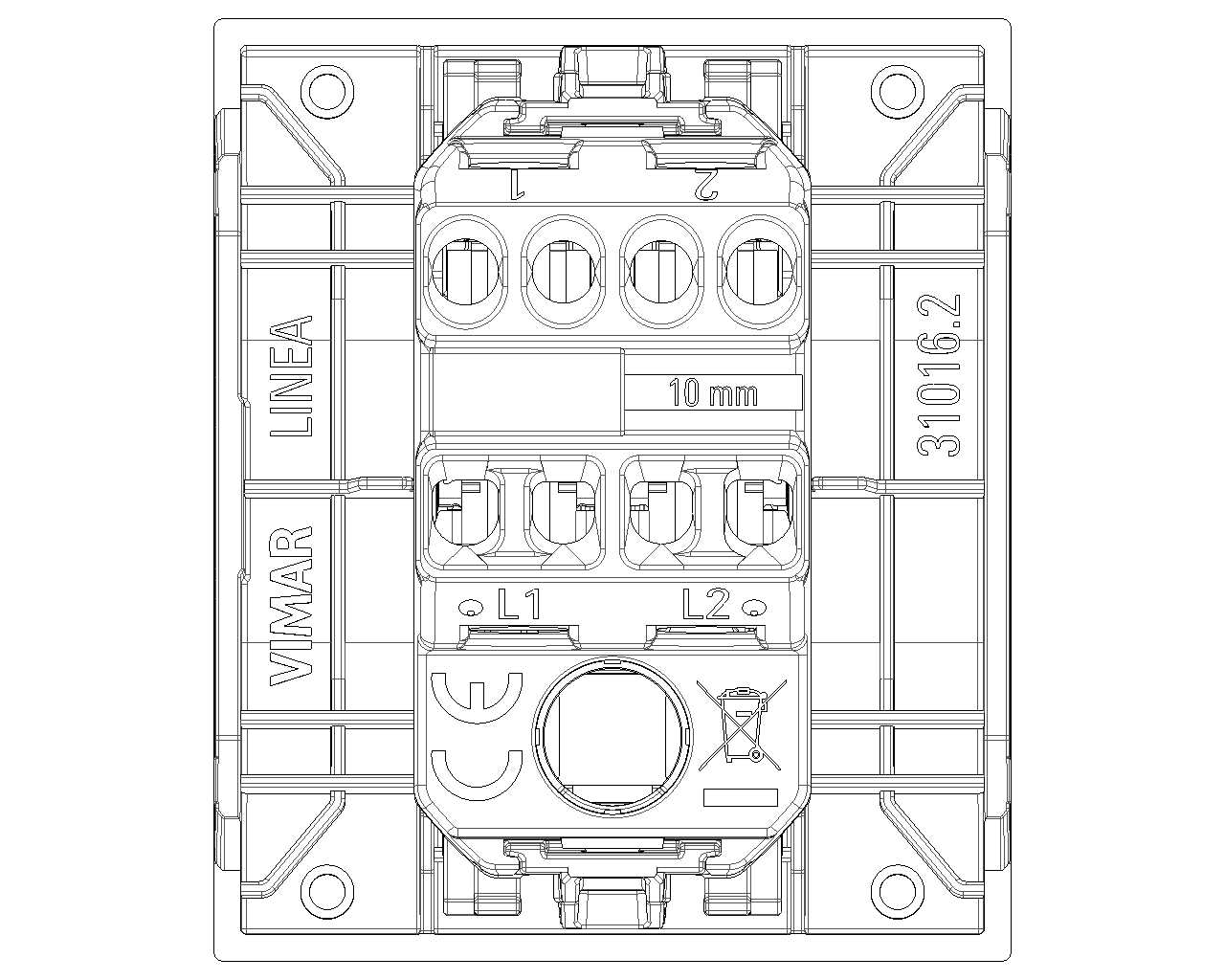

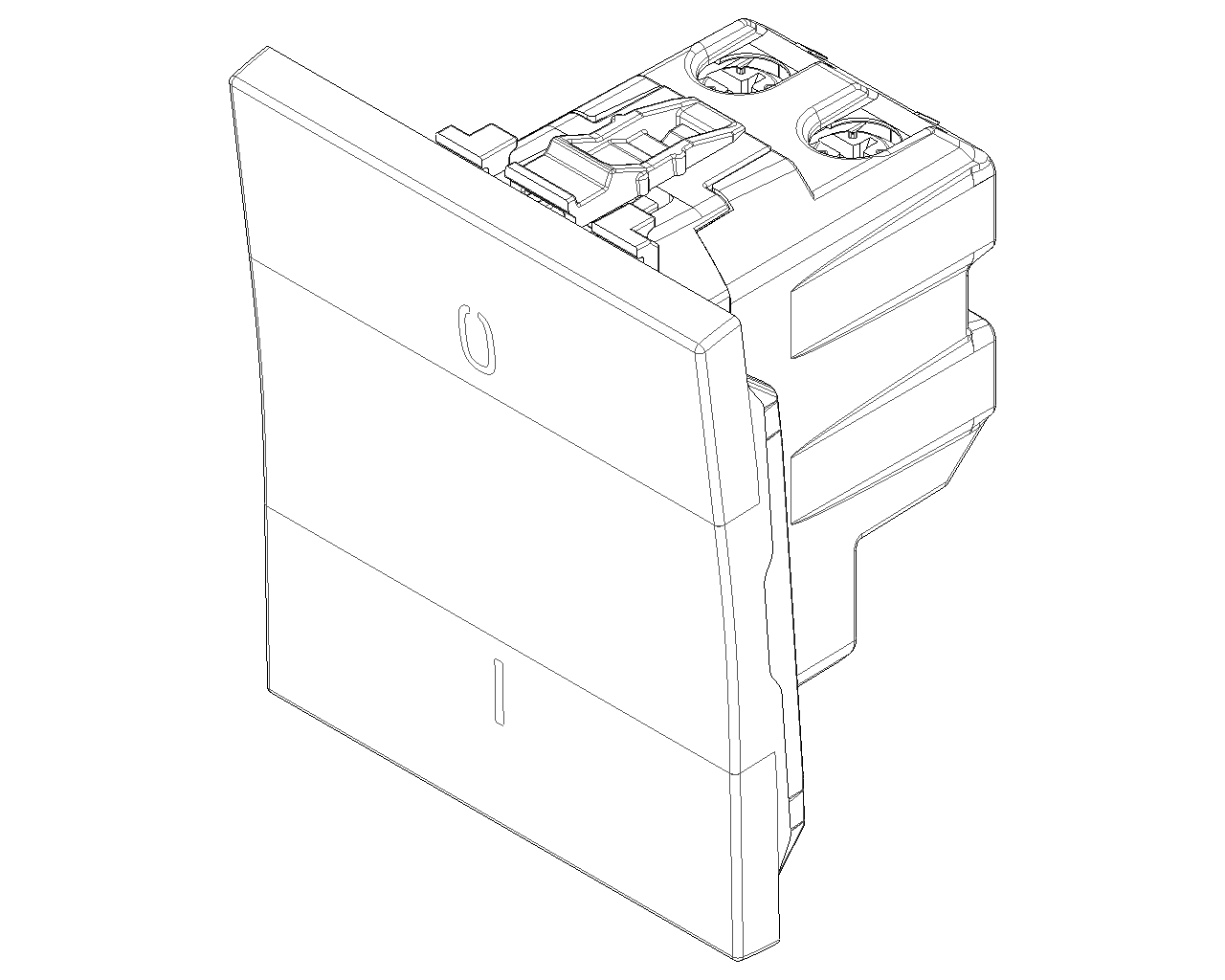

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Switch 2x1-pole
Switch 2x1-pole
Operating method
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
2
2
Push button switch
No
No
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
Label space/information surface
Yes
Yes
Imprint/indication
Other
Other
Lighting
Optional
Optional
Function lighting
Control and orientation
Control and orientation
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Impact strength
Other
Other
Nominal voltage
250 V
250 V
Rated current
20,00 A
20,00 A
Connection type
Screwed terminal
Screwed terminal
Heating switch
Yes
Yes
Washing machine switch
Yes
Yes

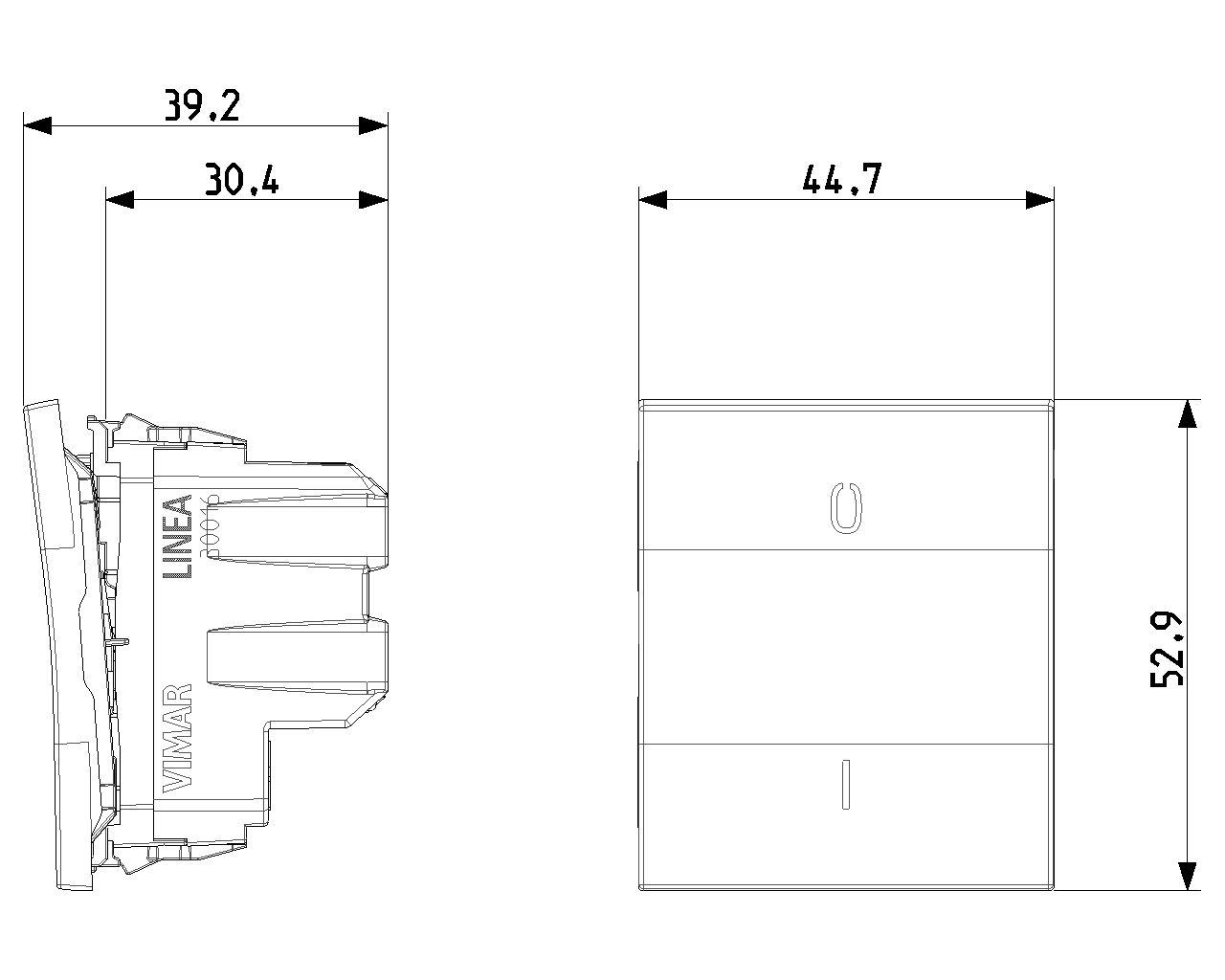

Device width
44,70 mm
44,70 mm
Device height
52,90 mm
52,90 mm
Device depth
39,20 mm
39,20 mm
Built-in depth
30,40 mm
30,40 mm
Min. depth of built-in installation box
30,40 mm
30,40 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
Minimum order quantity: 10 NR
Barcode
8007352776173
1 NR
5.2x4.3x5.6 [cm]
42.8 [g]
8007352776180
10 NR
23x11x6.5 [cm]
498.2 [g]
8007352776197
120 NR
35x25x24 [cm]
6,314 [g]
