2P 45A 1-way switch 5M canvas - 30019.C

Download as PDF PDF Add to portfolio
Immagine 30019.C
download product photo

30019.C
Wiring devices / Traditional wiring devices / LINEA / Devices

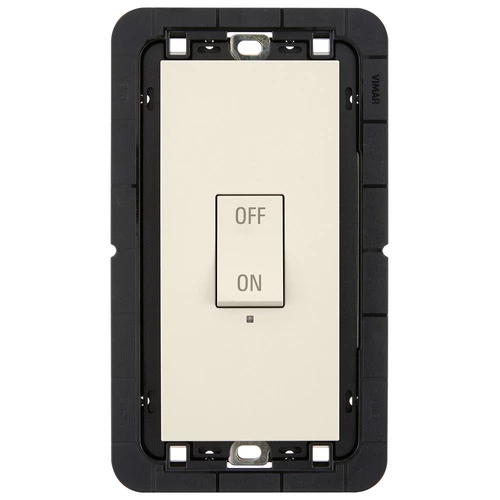

2P 45A 1-way switch 5M canvas
2P 45 A 250 V~ lightable 1-way switch, complete with mounting frame for installation in rectangular BS mounting boxes, to be completed with BS 5-module cover plate, canvas. Max 200 W for lamps with built-in ballast (IEC 60669-1:2017)

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Switch 2x1-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Beige
Label space/information surface
Yes
Imprint/indication
Other
Lighting
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 V
Rated current
45,00 A
Monitoring contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
Yes
Device width
82,70 mm
Device height
144,20 mm
Device depth
30,45 mm
Built-in depth
21,00 mm
Min. depth of built-in installation box
21,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352777217
1 NR
8.5x3.6x14.8 [cm]
135.8 [g]
Barcode Qty 5 NR
8007352777224
5 NR
19.3x15.8x9.6 [cm]
777.4 [g]
