30019.G
Wiring devices / Traditional wiring devices / LINEA / Devices

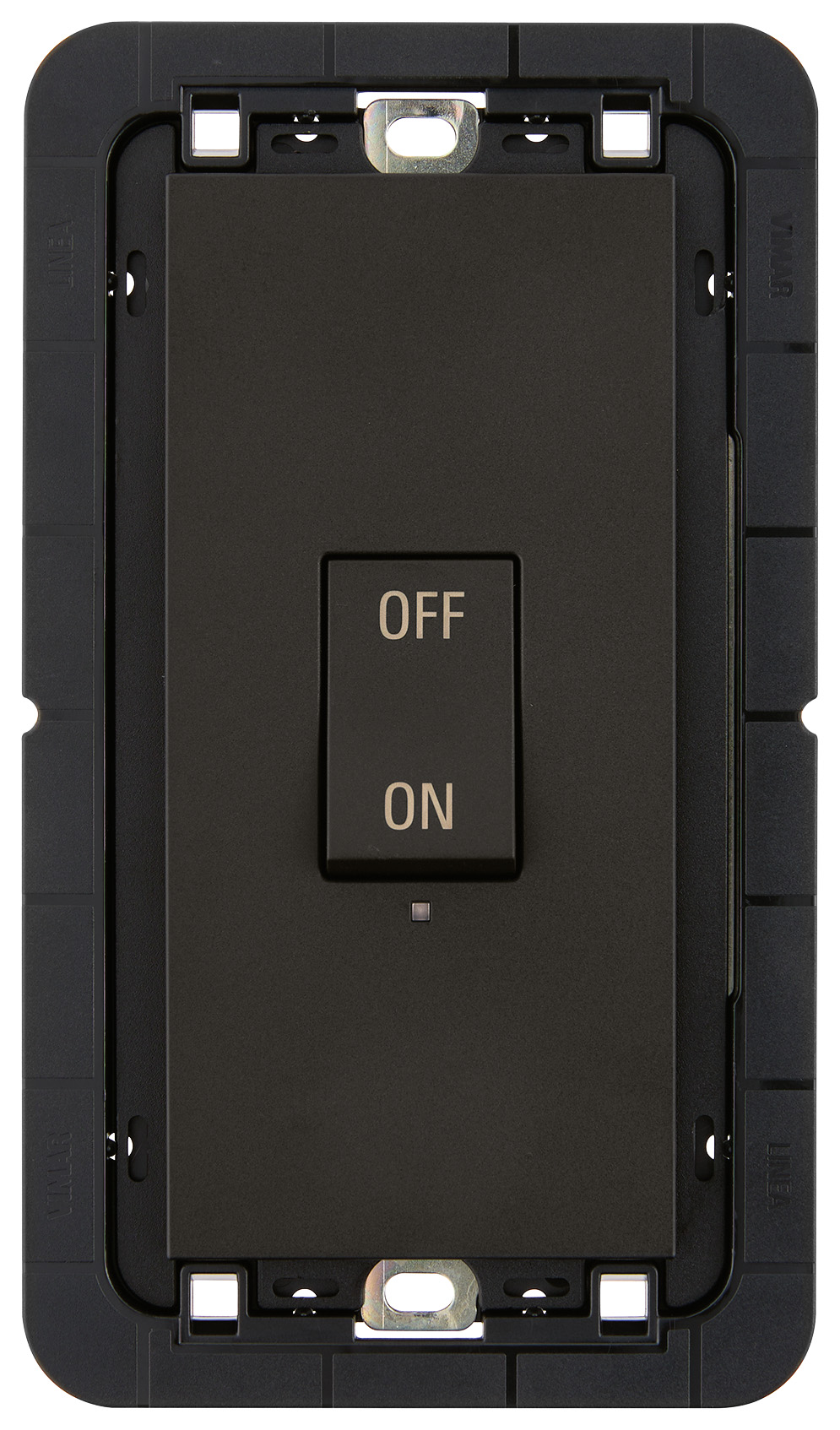

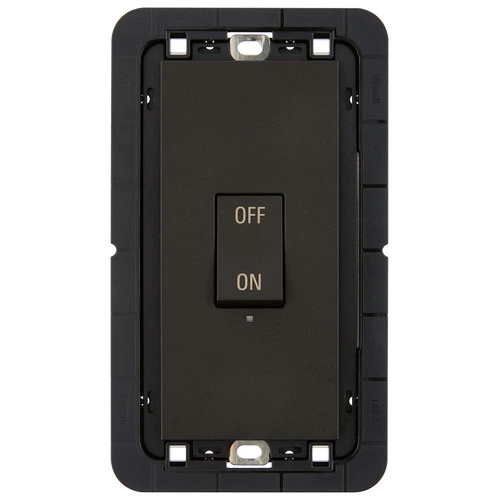

2P 45A 1-way switch 5M black
2P 45 A 250 V~ lightable 1-way switch, complete with mounting frame for installation in rectangular BS mounting boxes, to be completed with BS 5-module cover plate, black. Max 200 W for lamps with built-in ballast (IEC 60669-1:2017)
Product Status
3 - Active

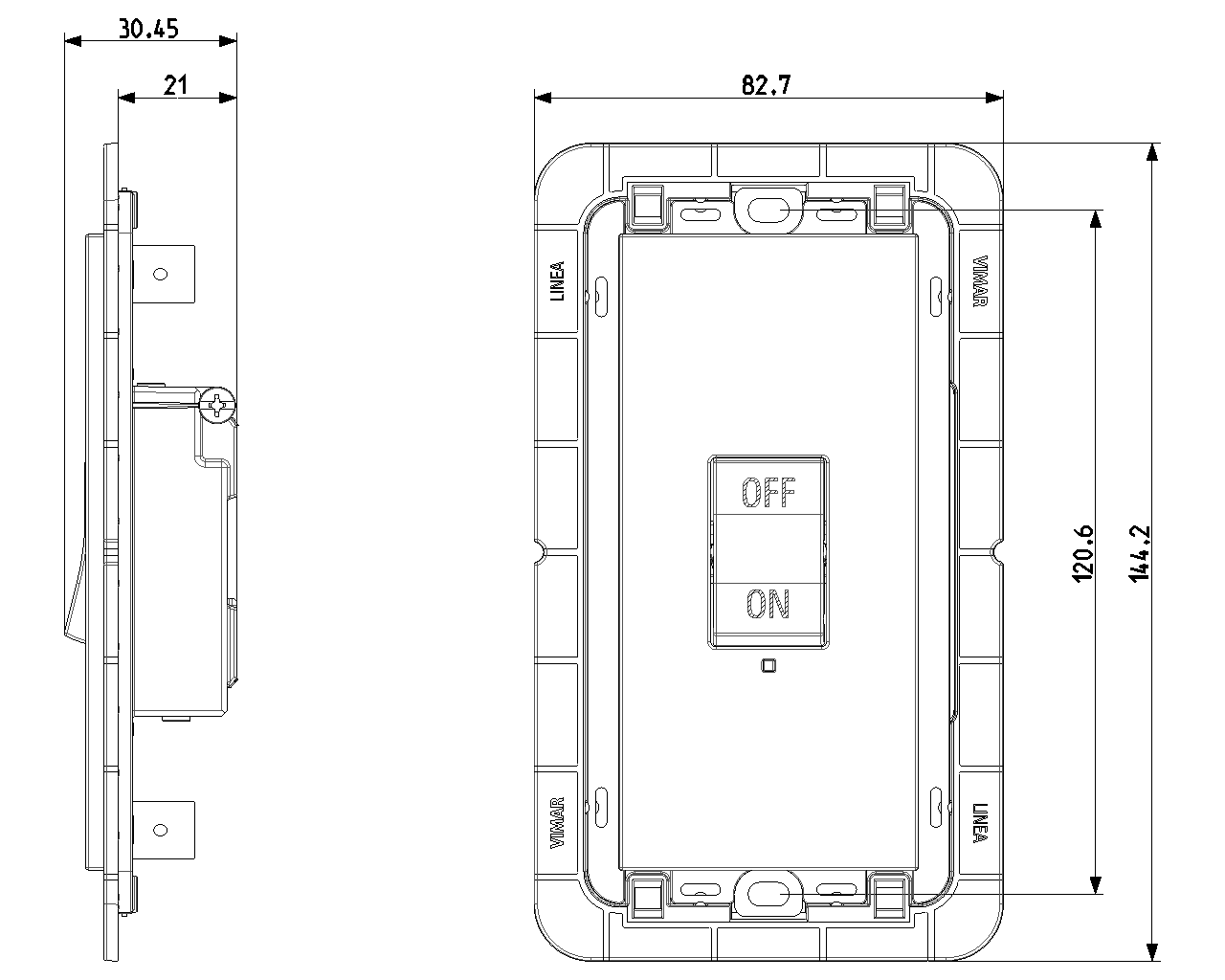

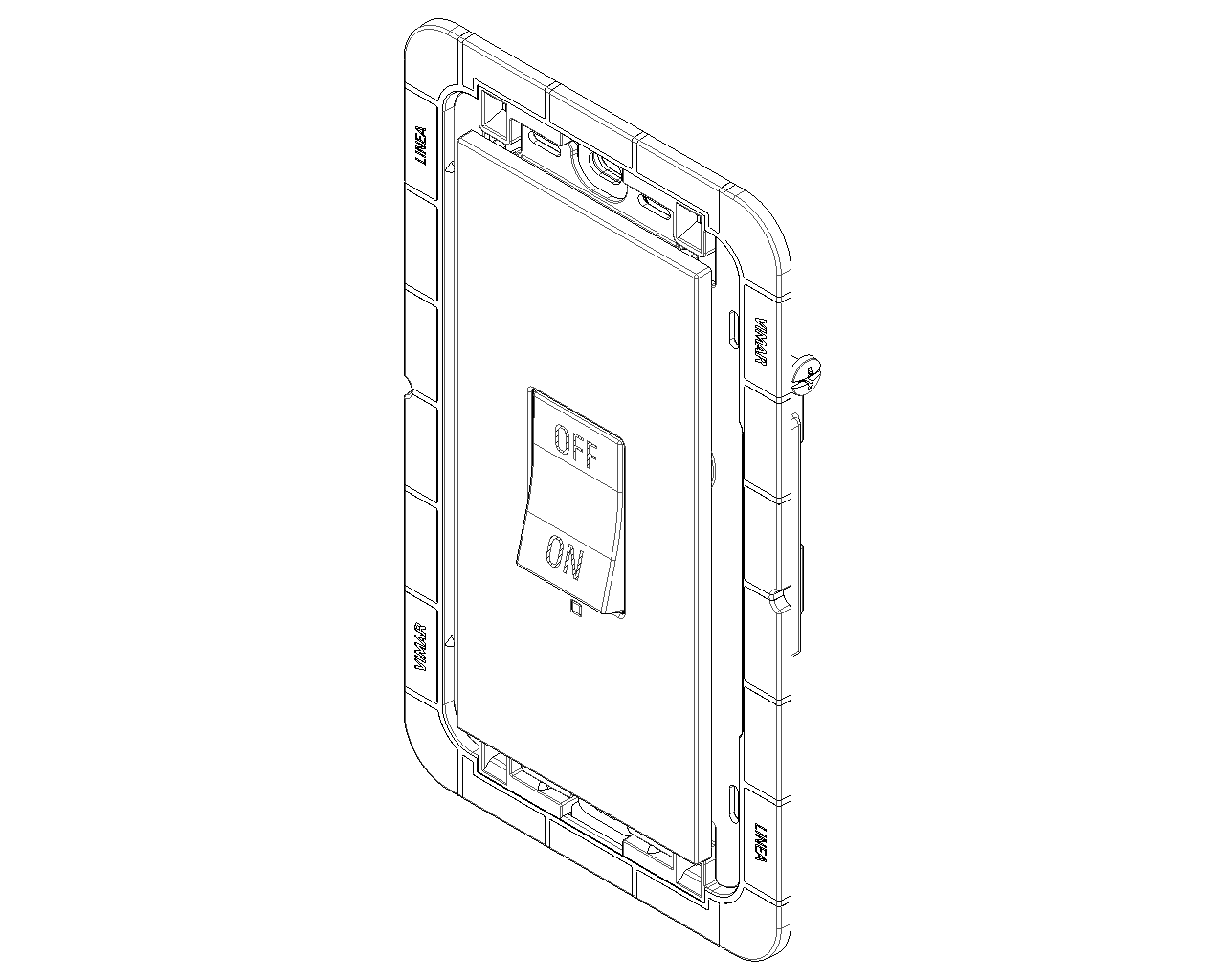

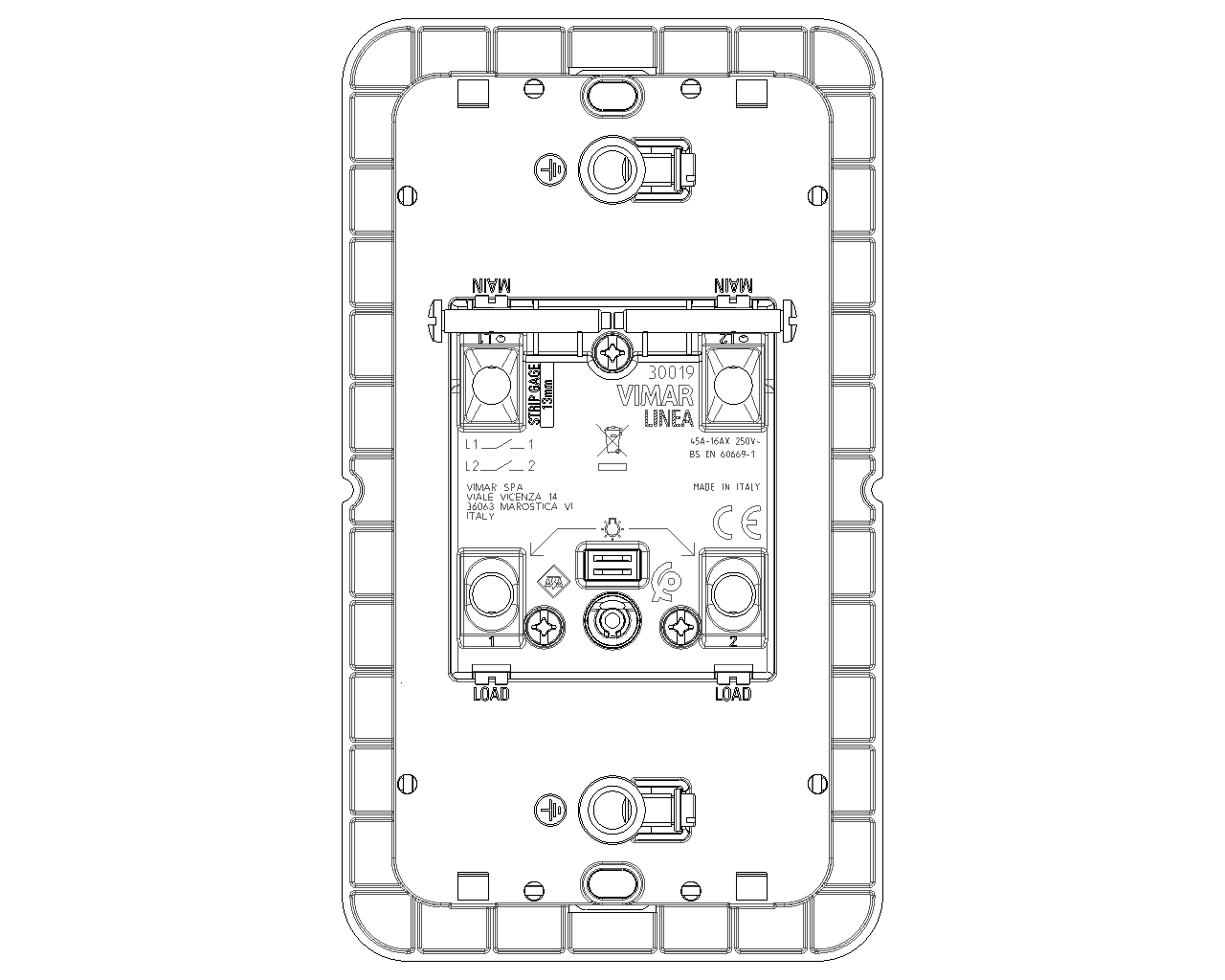

Drawings
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Switch 2x1-pole
Switch 2x1-pole
Operating method
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Black
Black
RAL-number (similar)
7021
7021
Label space/information surface
Yes
Yes
Imprint/indication
Other
Other
Lighting
Optional
Optional
Function lighting
Control and orientation
Control and orientation
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Impact strength
Other
Other
Nominal voltage
250 V
250 V
Rated current
10,00 A
10,00 A
Monitoring contact
No
No
Connection type
Screwed terminal
Screwed terminal
Heating switch
Yes
Yes
Washing machine switch
Yes
Yes
Device width
82,70 mm
82,70 mm
Device height
144,20 mm
144,20 mm
Device depth
30,45 mm
30,45 mm
Built-in depth
21,00 mm
21,00 mm
Min. depth of built-in installation box
21,00 mm
21,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
Minimum order quantity: 5 NR
Barcode
8007352777231
1 NR
8.5x3.6x14.8 [cm]
135.8 [g]
8007352777248
5 NR
19.3x15.8x9.6 [cm]
777.4 [g]
