13A switched/fused connection unit whiteCode 30049.LB
- 30049.LB
- Wiring devices / Traditional wiring devices / LINEA / Devices

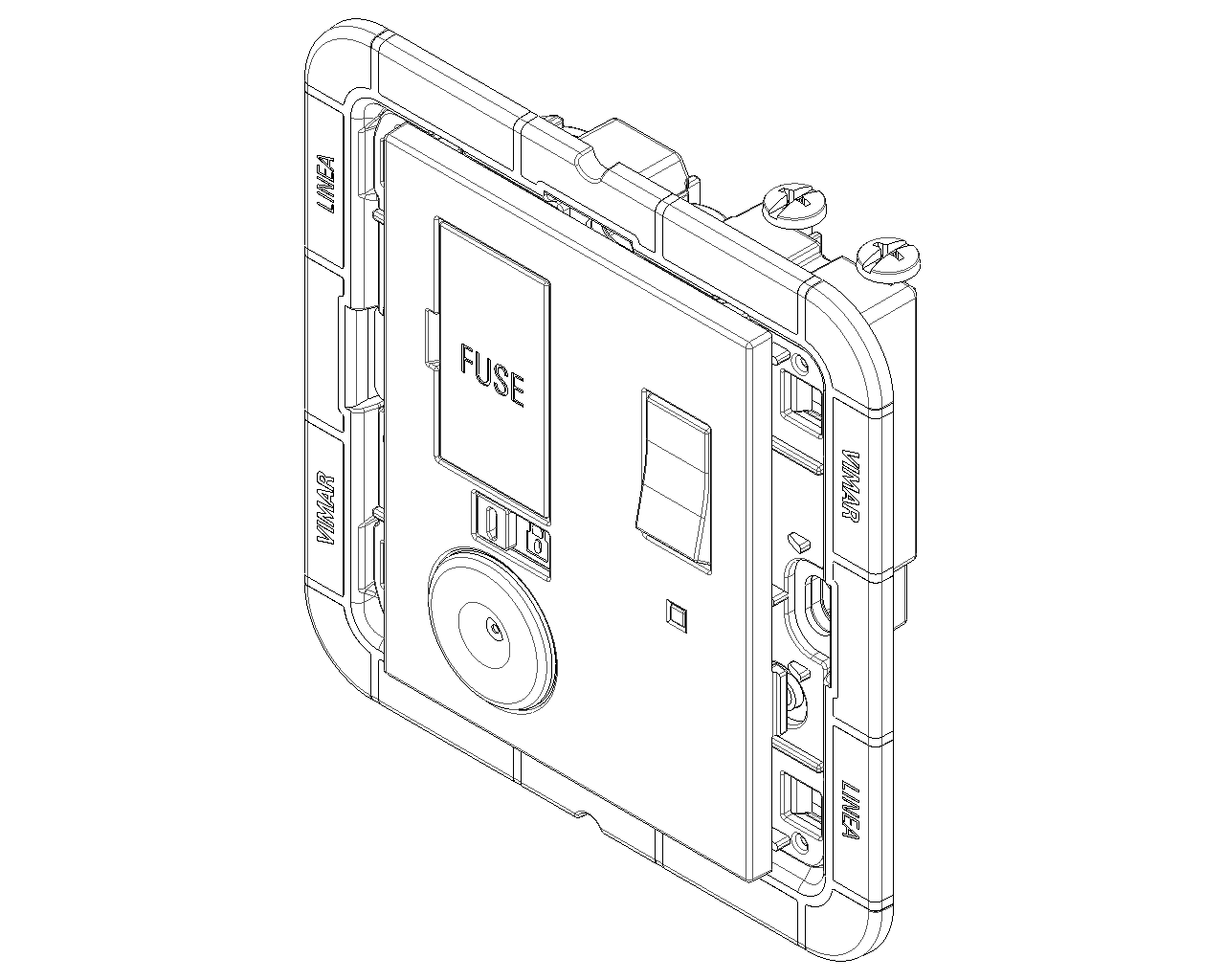

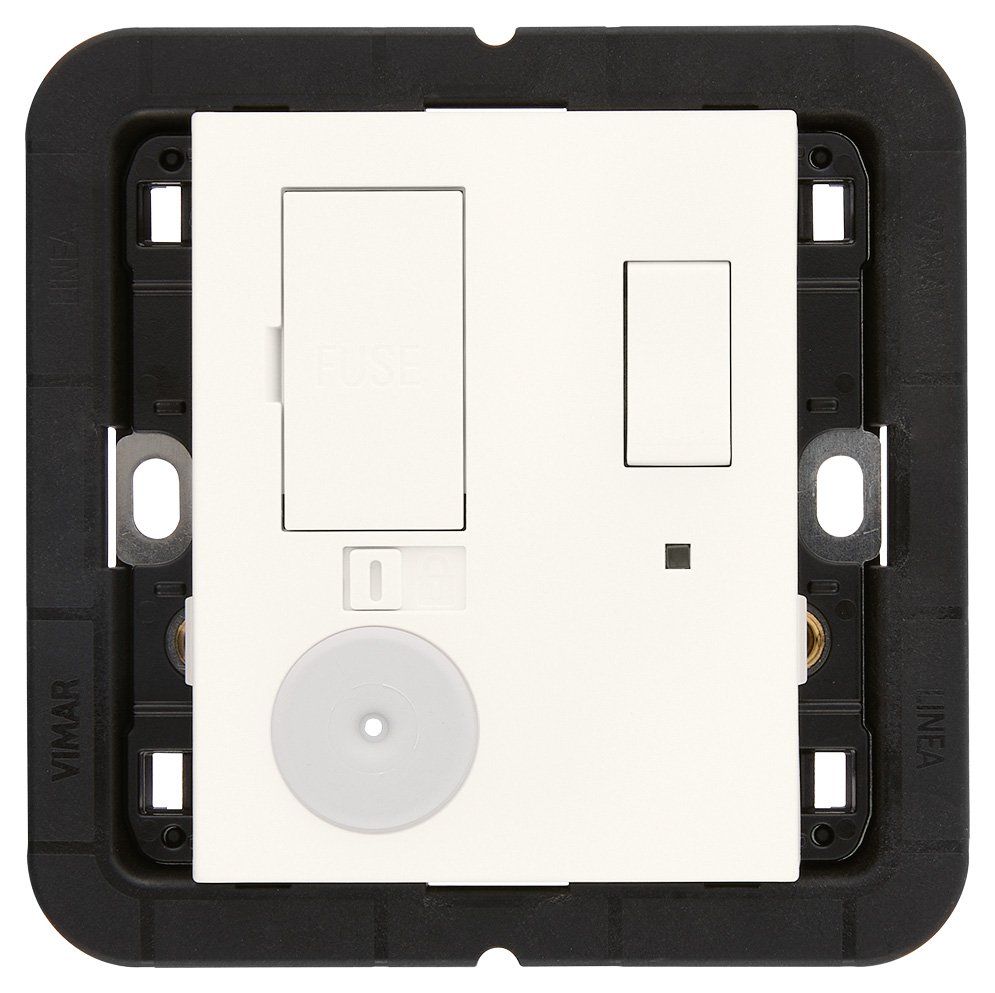

- 13A switched/fused connection unit white
- 13 A 250 V~ connection unit with 2P 1-way switch with pilot light, cable output, protection fuse complete with mounting frame for installation in square BS mounting boxes, to be completed with BS 3-module cover plate, white
- Product Status
- 3 - Active
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Switch 2-pole
Switch 2-pole
Operating method
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
3
3
Push button switch
No
No
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
Label space/information surface
Yes
Yes
Imprint/indication
Other
Other
Lighting
Yes
Yes
Function lighting
Control and orientation
Control and orientation
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Impact strength
Other
Other
Nominal voltage
250 V
250 V
Rated current
13,00 A
13,00 A

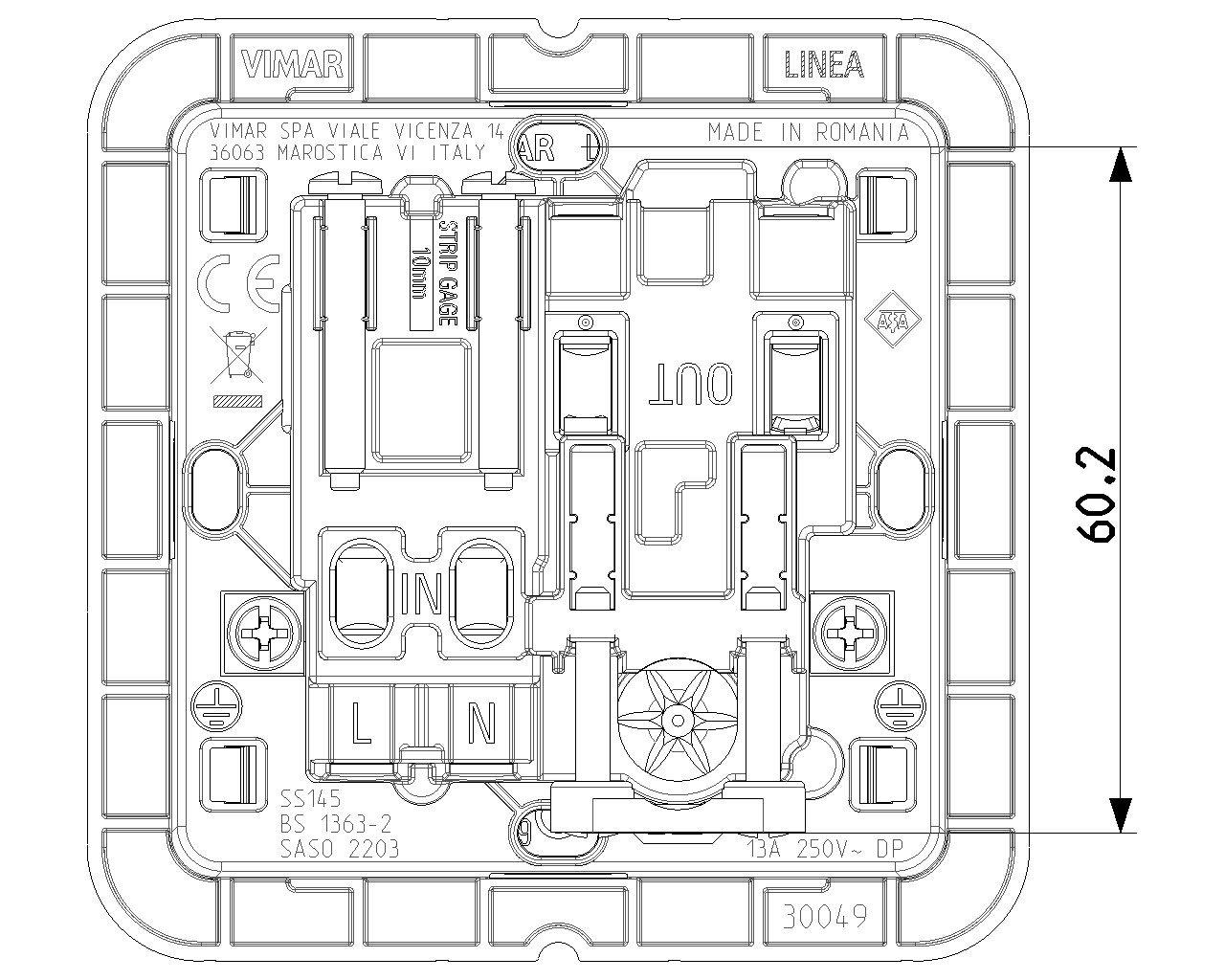

Connection type
Screwed terminal
Screwed terminal
Heating switch
No
No
Washing machine switch
No
No

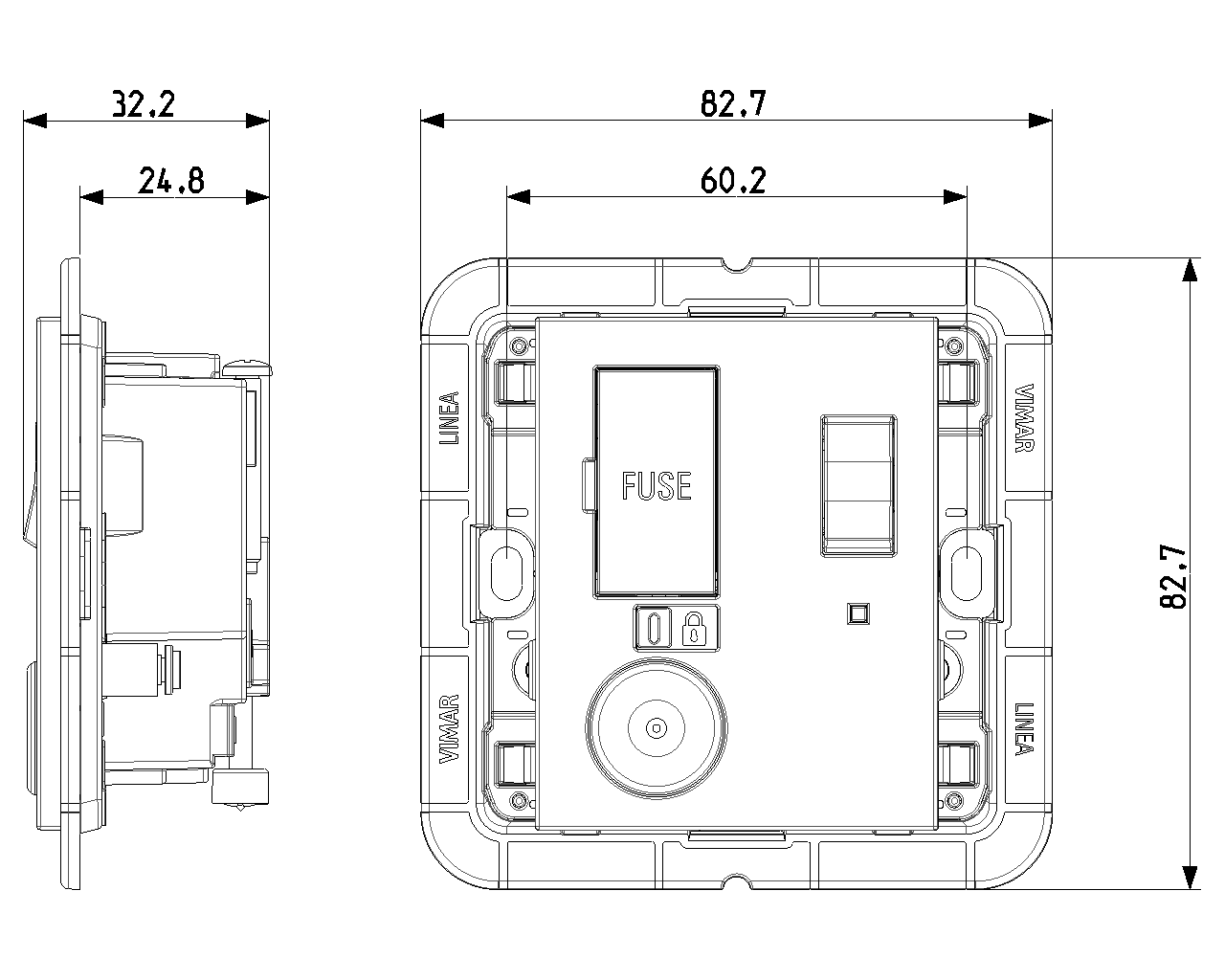

Device width
82,70 mm
82,70 mm
Device height
82,70 mm
82,70 mm
Device depth
32,20 mm
32,20 mm
Built-in depth
24,80 mm
24,80 mm
Min. depth of built-in installation box
24,80 mm
24,80 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
Compliant with UK Building Regulations Part M
Yes
Yes
Minimum order quantity: 10 NR
Barcode

8007352777347
1 NR
8.5x3.6x8.5 [cm]
118.6 [g]

8007352777354
10 NR
18.5x18x9.8 [cm]
1,295.6 [g]

8007352777361
80 NR
40x39x22 [cm]
10,844.8 [g]
