13A switched/fused connection unit black - 30049.LG

Download as PDF PDF Add to portfolio

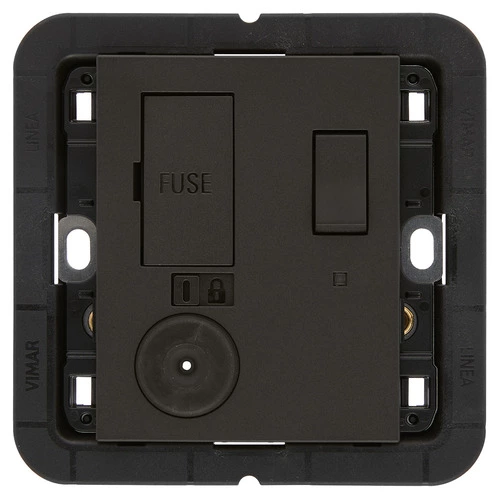

Immagine 30049.LG
download product photo

30049.LG
Wiring devices / Traditional wiring devices / LINEA / Devices

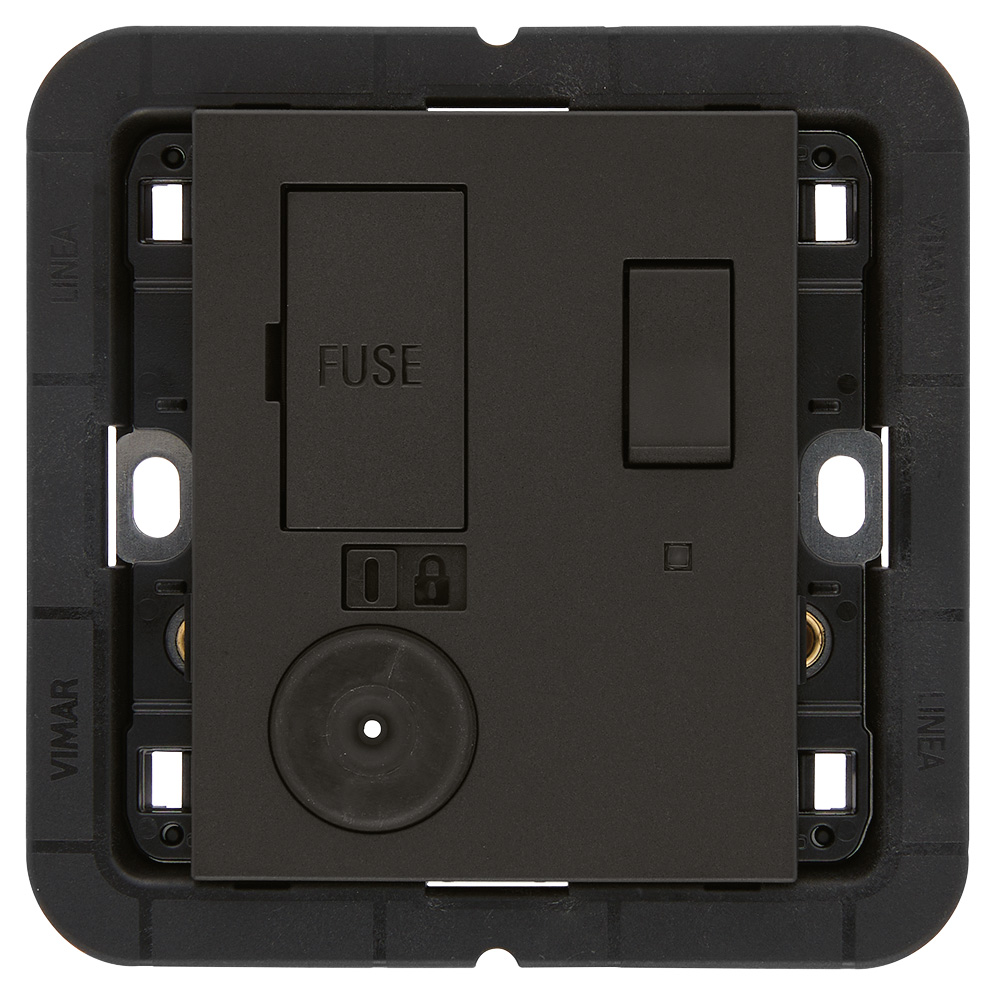

13A switched/fused connection unit black
13 A 250 V~ connection unit with 2P 1-way switch with pilot light, cable output, protection fuse complete with mounting frame for installation in square BS mounting boxes, to be completed with BS 3-module cover plate, black

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Switch 2-pole
Operating method
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
3
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Black
RAL-number (similar)
7021
Label space/information surface
Yes
Imprint/indication
Other
Lighting
Yes
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 V
Rated current
13,00 A
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
Yes
Device width
82,70 mm
Device height
82,70 mm
Device depth
32,20 mm
Built-in depth
24,80 mm
Min. depth of built-in installation box
24,80 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352777408
1 NR
8.5x3.6x8.5 [cm]
109.2 [g]
Barcode Qty 10 NR
8007352777415
10 NR
18.5x18x9.8 [cm]
1,205 [g]
Barcode Qty 80 NR
8007352777422
80 NR
40x39x22 [cm]
9,640 [g]
