IoT roller shutter control mechanismCode 30804
- 30804
- Wiring devices / View Wireless wiring devices / LINEA / Devices

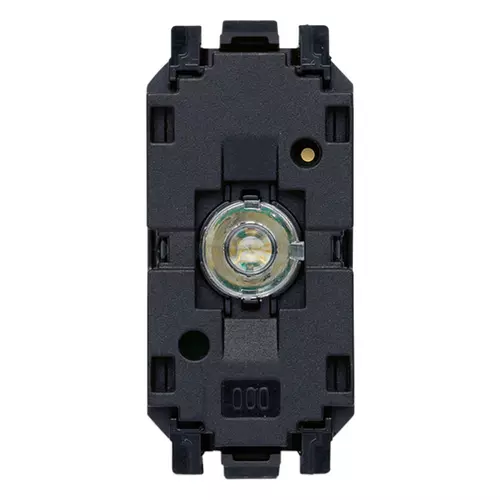

- IoT roller shutter control mechanism
- VIEW Wireless electronic control mechanism for 1 roller shutter with slat orientation and change-over relay output for cosφ 0.6 motor 2 A 100-240 V~, local or remote control, double IoT technology on Bluetooth 5.0 standard for the creation of VIEW Wireless mesh system and on Zigbee 3.0 standard, 1 input for external push button to recall a scenario, favourite position recall function, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, to be completed with Linea 1-module interchangeable buttons
- Compatible with SmartThings hub
- Product Status
- 3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Light multilanguage instructions sheet (938 kb)
- Foglio istruzioni Full (519 kb)
- Feuille d’instructions Full (508 kb)
- Hoja de instrucciones Full (507 kb)
- Full instructions sheet (503 kb)
- Φυλλάδιο οδηγιών Full (645 kb)
- Anweisungsblatt Full (506 kb)
- ورقة الإرشادات Full (574 kb)
- Manuale app View Wireless (19693 kb)
- Manuel appli View Wireless (43543 kb)
- Manual app View Wireless (43542 kb)
- Manual View Wireless app (42589 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (43825 kb)
- Installationsanleitung View Wireless (43598 kb)

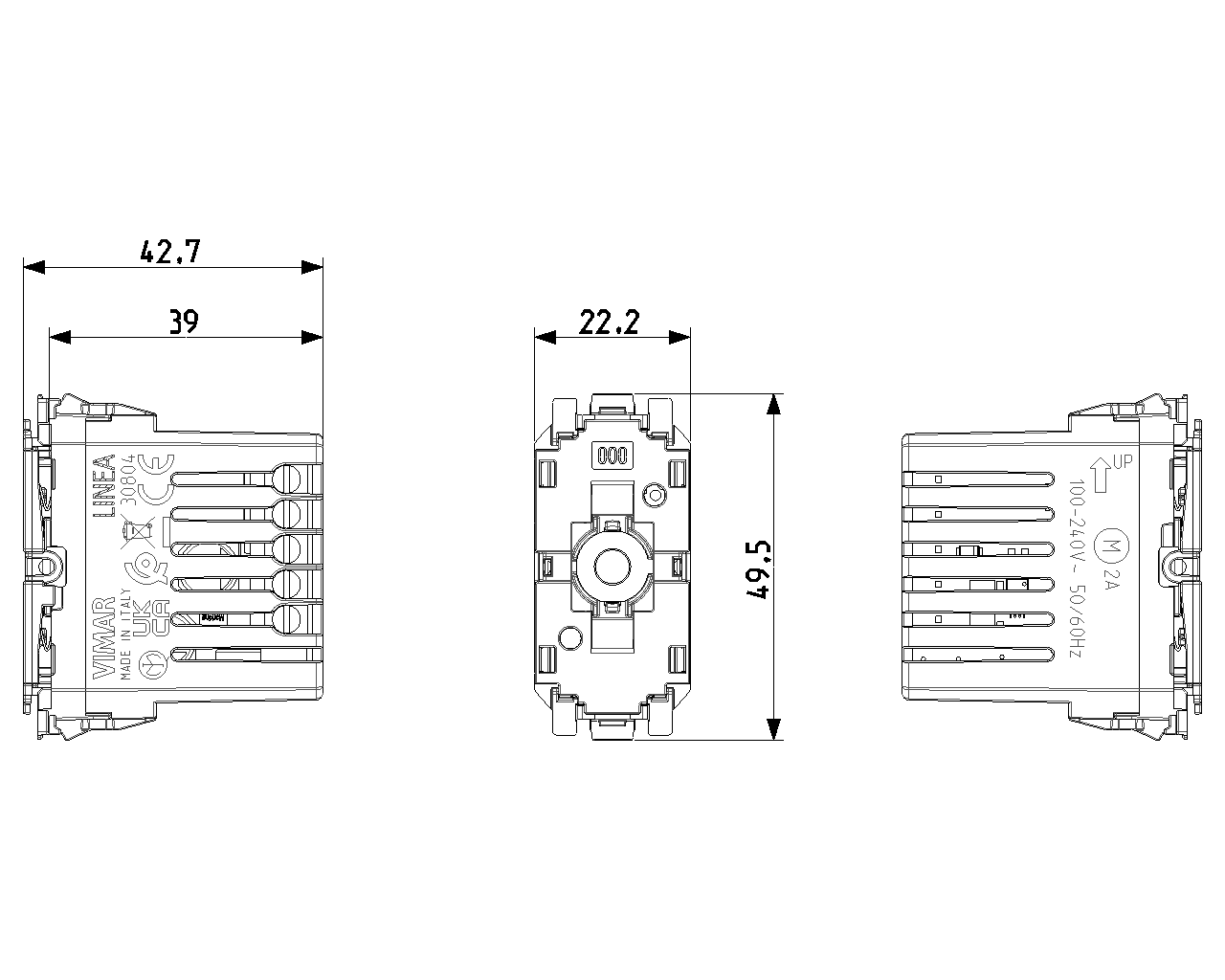

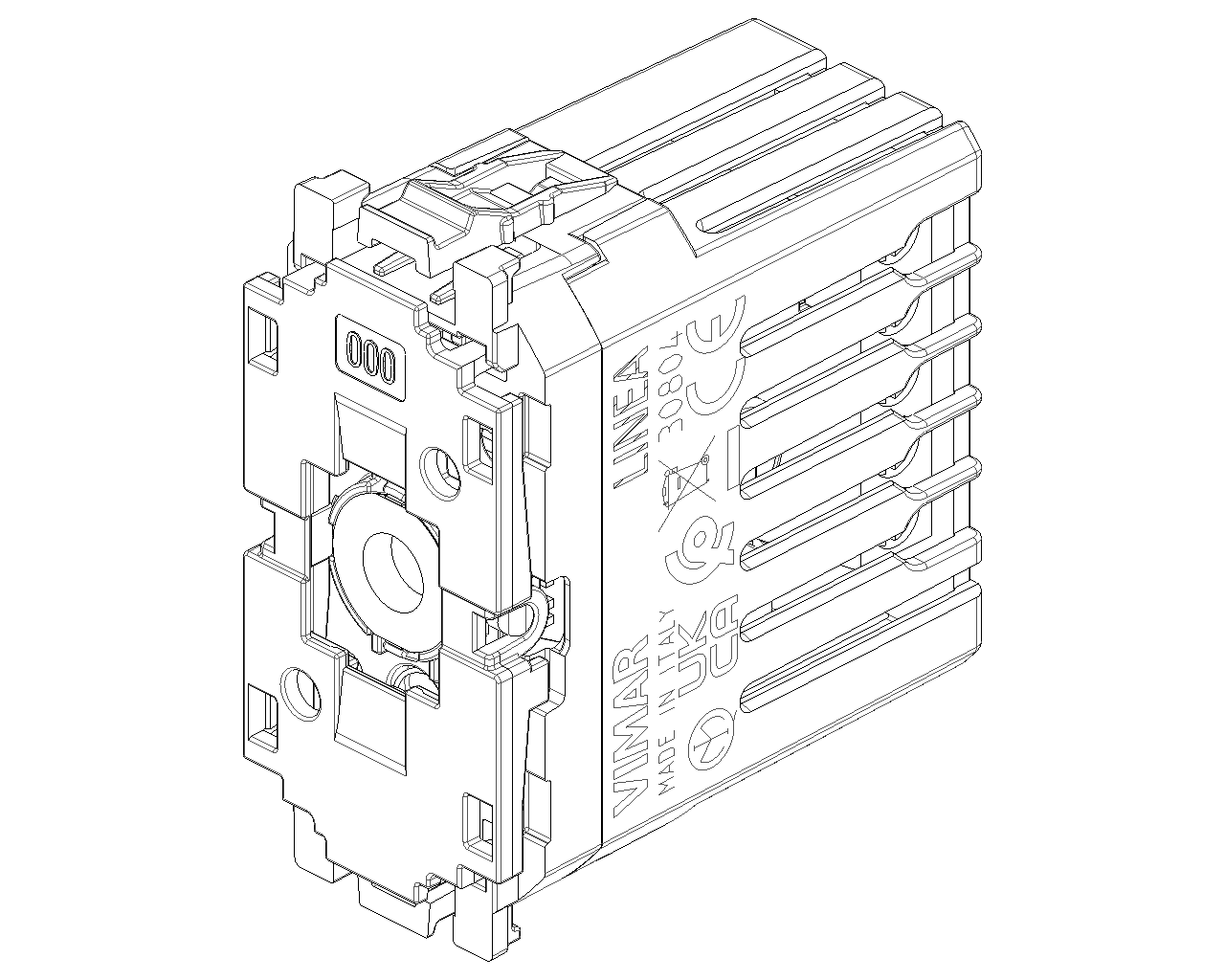

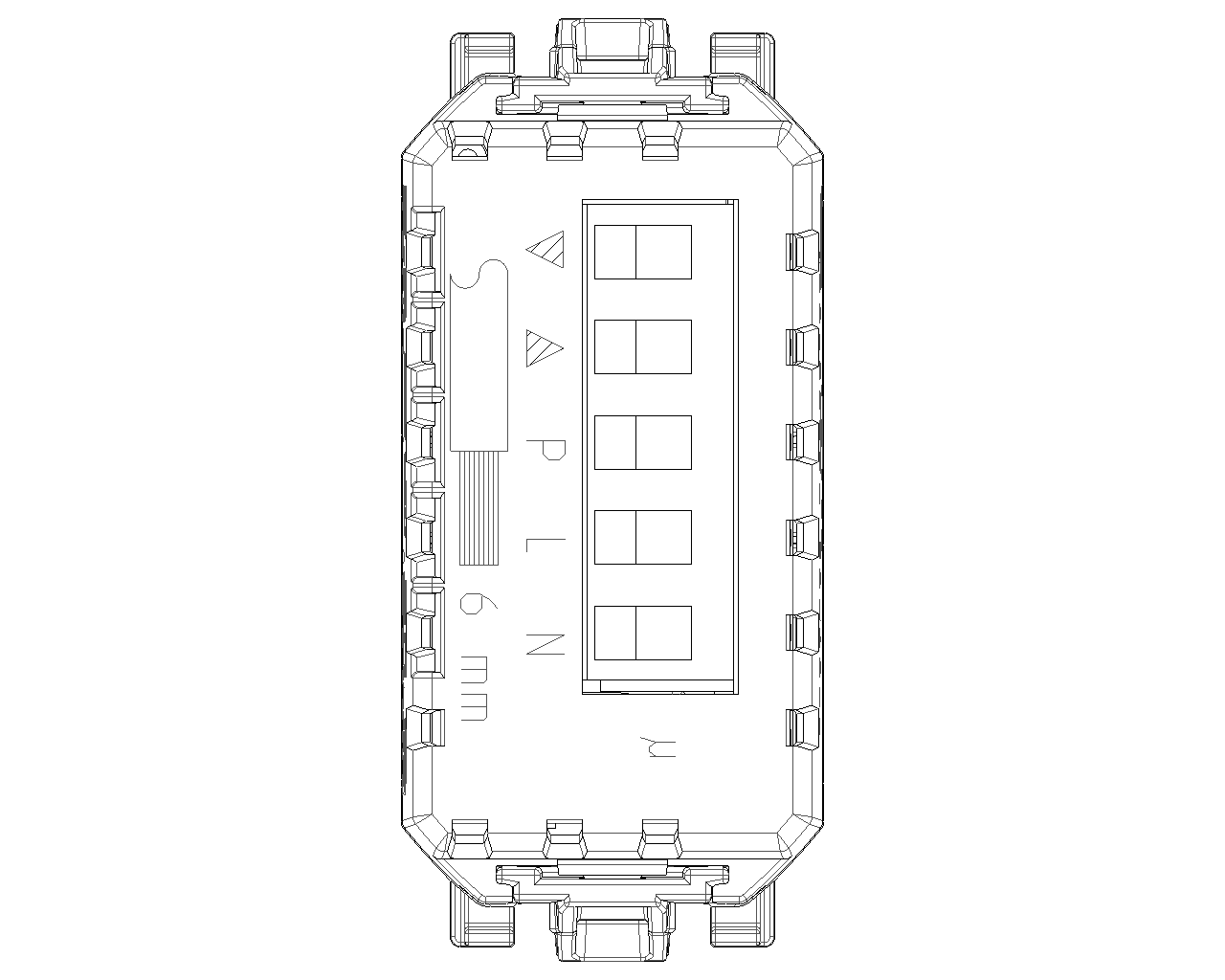

Drawings
Class group
Installation bus systems
Installation bus systems
Class
Shutting actuator for bus system
Shutting actuator for bus system
Bus system KNX
No
No
Bus system KNX-RF (Radio Frequency)
No
No
Bus system radio frequency
Yes
Yes
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Zigbee
Zigbee
Mounting method
Built-in
Built-in
Width in number of modular spacings
0
0
Local operation/hand operation
Yes
Yes
With LED indication
Yes
Yes
37. Marking - Morocco
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
47. Works with SmartThings
Minimum order quantity: 1 NR
Barcode
8007352688971
1 NR
5.1x3.5x5.5 [cm]
45.4 [g]
8007352744868
60 NR
27x23x12.5 [cm]
2,858.8 [g]
