IP Dome Plus motorcam-6Mpx 2,8-12mm IK10 - 4622.2812GAE

Download as PDF PDF Add to portfolio
Immagine 4622.2812GAE
download product photo

4622.2812GAE
Safety / ELVOX CCTV / IP / Cameras

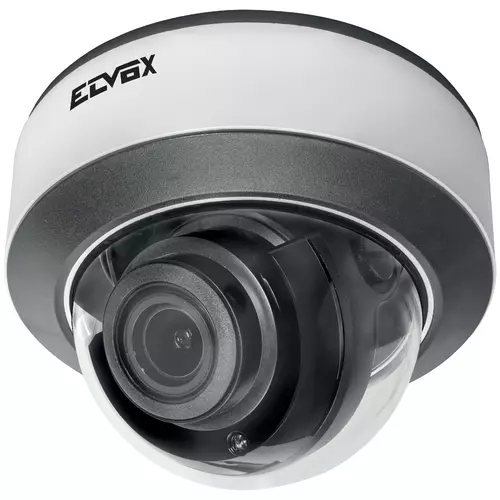

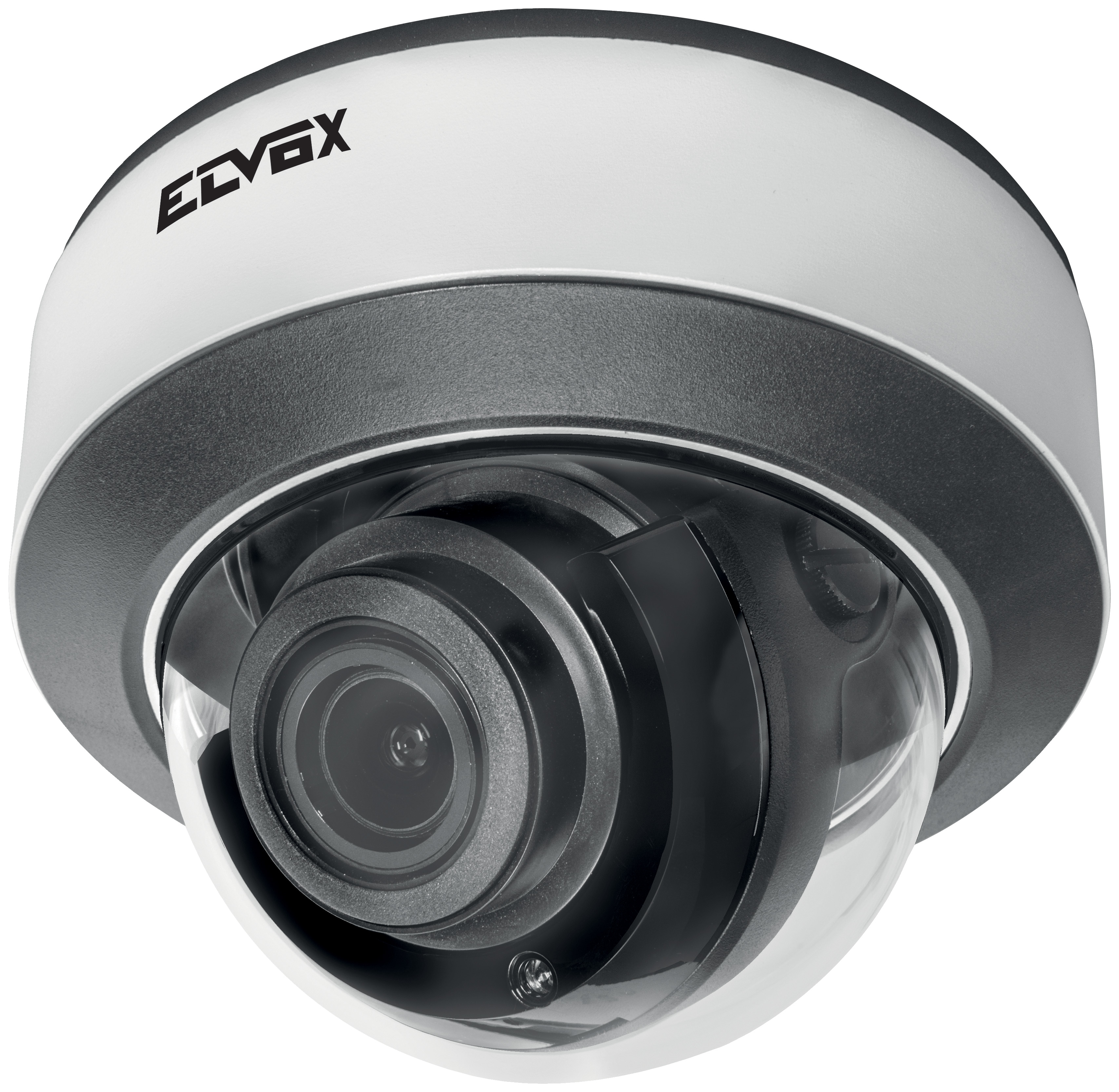

IP Dome Plus motorcam-6Mpx 2,8-12mm IK10
Day & Night colour IP Plus Dome camera, CMOS 1/2.5” sensor, 6 Mpx resolution (3296x1856), 2.8-12 mm motor-driven varifocal lens, mechanical IR filter, H.265+ Multistream, PoE or 12 Vdc power supply, SD CARD slot, IR 30- 50 m,CVBS, built-in microphone, AV functions with target detection and video classification, H-WDR, HLC, BLC, ROI, 3DNR, Mask, Motion, DC-Iris, Smart IR, RTSP functions, protection degree IP67 and IK10. Dimensions: Ø 141x114 mm. Weight 930 g

Product Status
3 - Active

You may also be interested in

46922.042
46922.042 - IP camera contacts bracket
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Construction type
Dome shape
Thermal camera
No
Number of pixels (Megapixel)
6
With lens
Yes
Modular (lens and camera separated)
No
Focal size
2,80 - 12,00 mm
Shutter control
DC
Lens connection
Other
Motor zoom
Yes
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
Yes
Communication medium wireless
No
Type of interface
Other
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3af (PoE)
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
50 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
256
Number of digital inputs
1
Number of digital outputs
1
Number of audio inputs
1
Number of audio outputs
1
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
Yes
Impact strength
IK10
Degree of protection (IP)
IP67
Horizontal field of view
37,00 - 109,00
With microphone
Yes
With loudspeaker
No
Power consumption
8,40 W
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
14.100,00 mm
Height
100,00 mm
Width
141,00 mm
Depth
100,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

45. NDAA compliant

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352753778
1 NR
18x18x17.8 [cm]
1,174.2 [g]
