8-port Switch Gbit PoE at 2Uplink - 46260.10P.03

Download as PDF PDF Add to portfolio
Immagine 46260.10P.03
download product photo

46260.10P.03
Safety / ELVOX CCTV / IP / Networking

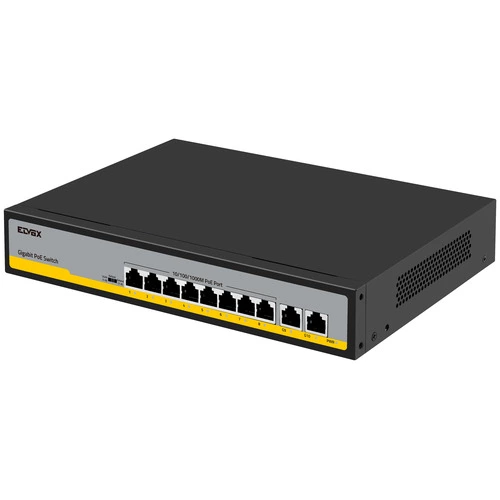

8-port Switch Gbit PoE at 2Uplink
Gigabit Ethernet switch with 10 RJ45 10/100/1000 Mbps auto-sensing ports, auto MDI/MDI-X, activity LED indicator, 8 PoE ports Standard IEEE 802.3af/at (End-Span 1/2+,3/6-) + 2 Uplink. Compatible with 10/100/1000 BASE-T, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards, 2K MAC table. Port 1 supports HiPoE up to 60 W. Power supply 100-240 Vac. Dimensions: 268×181×44 mm.

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Installation material for data and telecommunication networks
Class
Network switch
Ethernet
Yes
Number of ports 10/100 Mbps RJ45
10
Number of ports 10/100/1000 Mbps RJ45
10
Number of ports 1000 Mbps RJ45
10
Number of ports 10 Gbps RJ45
0
Number of ports 10 Gbps Mini GBIC
0
Number of ports 100/1000 Mbps Mini GBIC
0
Number of ports 1000 Mbps Mini GBIC
0
Number of ports 40 Gbps Mini GBIC
0
Number of ports 100 Gbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
0
Number of ports 1000 Mbps GBIC
0
Number of ports 10/100 Mbps M12
0
Number of ports 100 Mbps SC
0
Number of ports 1000 Mbps SC (SX)
0
Number of ports 1000 Mbps SC (LX)
0
Number of ports 100 Mbps ST
0
Number of ports 100 Mbps POF
0
Number of ports 1000 Mbps POF
0
Number of other ports
0
Power over Ethernet (PoE)
802.3af (PoE)
Number of ports PoE
8
Max. PoE power
110 W
Max. power consumption
6,50 W
Redundant power supply
No
Mounting method
Desk type
Number of max. stackable switches
0
Number of module slots
0
Layer 2
No
Layer 3
No
Manageable
No
Degree of protection (IP)
IP00
Height
27,00 mm
Width
207,00 mm
Depth
95,00 mm
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352784758
1 NR
31.6x28.5x7.1 [cm]
1,669 [g]
Barcode Qty 10 NR
8007352790025
10 NR
54x43.5x33.5 [cm]
16,690 [g]
