4-port Switch Gbit PoE at 1Uplink 1SFP - 46260.5P.03

Download as PDF PDF Add to portfolio

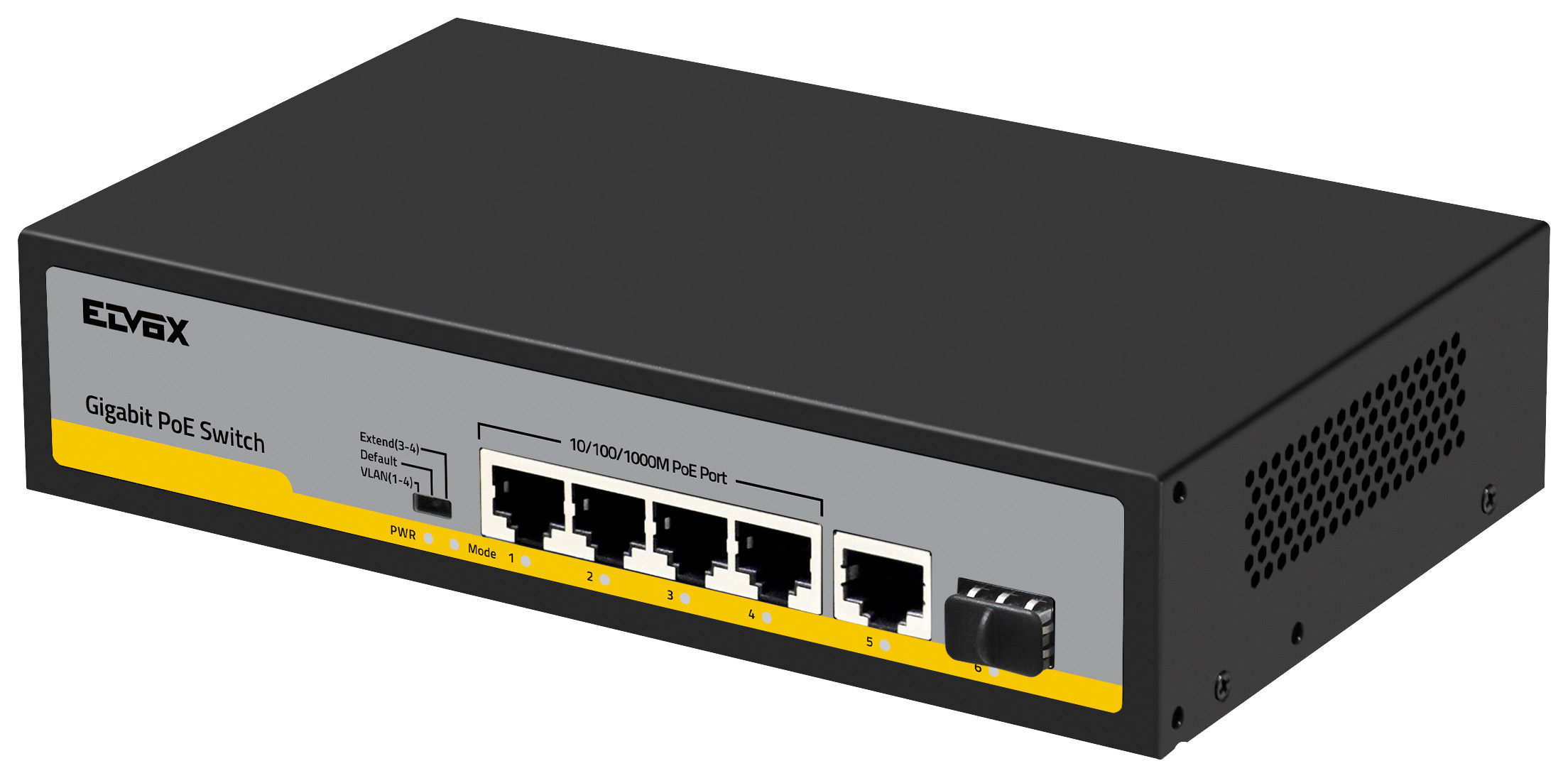

Immagine 46260.5P.03
download product photo

46260.5P.03
Safety / ELVOX CCTV / IP / Networking

4-port Switch Gbit PoE at 1Uplink 1SFP
Gigabit Ethernet switch with 5 RJ45 10/100/1000 Mbps auto-sensing ports, auto MDI/MDI-X, activity LED indicator, 4 PoE ports Standard IEEE 802.3af/at (End-Span 1/2+,3/6-) + 1 Uplink + 1SFP. Compatible with 10/100/1000 BASE-T, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards, 2K MAC table. Port 1 supports HiPoE up to 60 W. Power supply 100-240 Vac. Dimensions: 200x118x44 mm.

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Installation material for data and telecommunication networks
Class
Network switch
Ethernet
Yes
Number of ports 10/100 Mbps RJ45
5
Number of ports 10/100/1000 Mbps RJ45
5
Number of ports 1000 Mbps RJ45
5
Number of ports 10 Gbps RJ45
0
Number of ports 10 Gbps Mini GBIC
0
Number of ports 100/1000 Mbps Mini GBIC
0
Number of ports 1000 Mbps Mini GBIC
0
Number of ports 40 Gbps Mini GBIC
0
Number of ports 100 Gbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
0
Number of ports 1000 Mbps GBIC
1
Number of ports 10/100 Mbps M12
0
Number of ports 100 Mbps SC
0
Number of ports 1000 Mbps SC (SX)
1
Number of ports 1000 Mbps SC (LX)
0
Number of ports 100 Mbps ST
0
Number of ports 100 Mbps POF
0
Number of ports 1000 Mbps POF
0
Number of other ports
0
Power over Ethernet (PoE)
802.3af (PoE)
Number of ports PoE
4
Max. PoE power
60 W
Max. power consumption
3,79 W
Redundant power supply
No
Mounting method
Desk type
Number of max. stackable switches
0
Number of module slots
0
Layer 2
No
Layer 3
No
Manageable
No
Degree of protection (IP)
IP00
Height
27,00 mm
Width
125,00 mm
Depth
73,00 mm
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352784741
1 NR
24.5x19x6 [cm]
930 [g]
Barcode Qty 10 NR
8007352790018
10 NR
40x33x28 [cm]
9,300 [g]
