Wi-Fi bullet camera 4Mpx for 46305.D kit - 46301.D4

Download as PDF PDF Add to portfolio
Immagine 46301.D4
Foto gallery 1
Foto gallery 2
Foto gallery 3
Foto gallery 4
Foto gallery 5
Foto gallery 6
download product photo

46301.D4
Safety / ELVOX CCTV / IP / Cameras

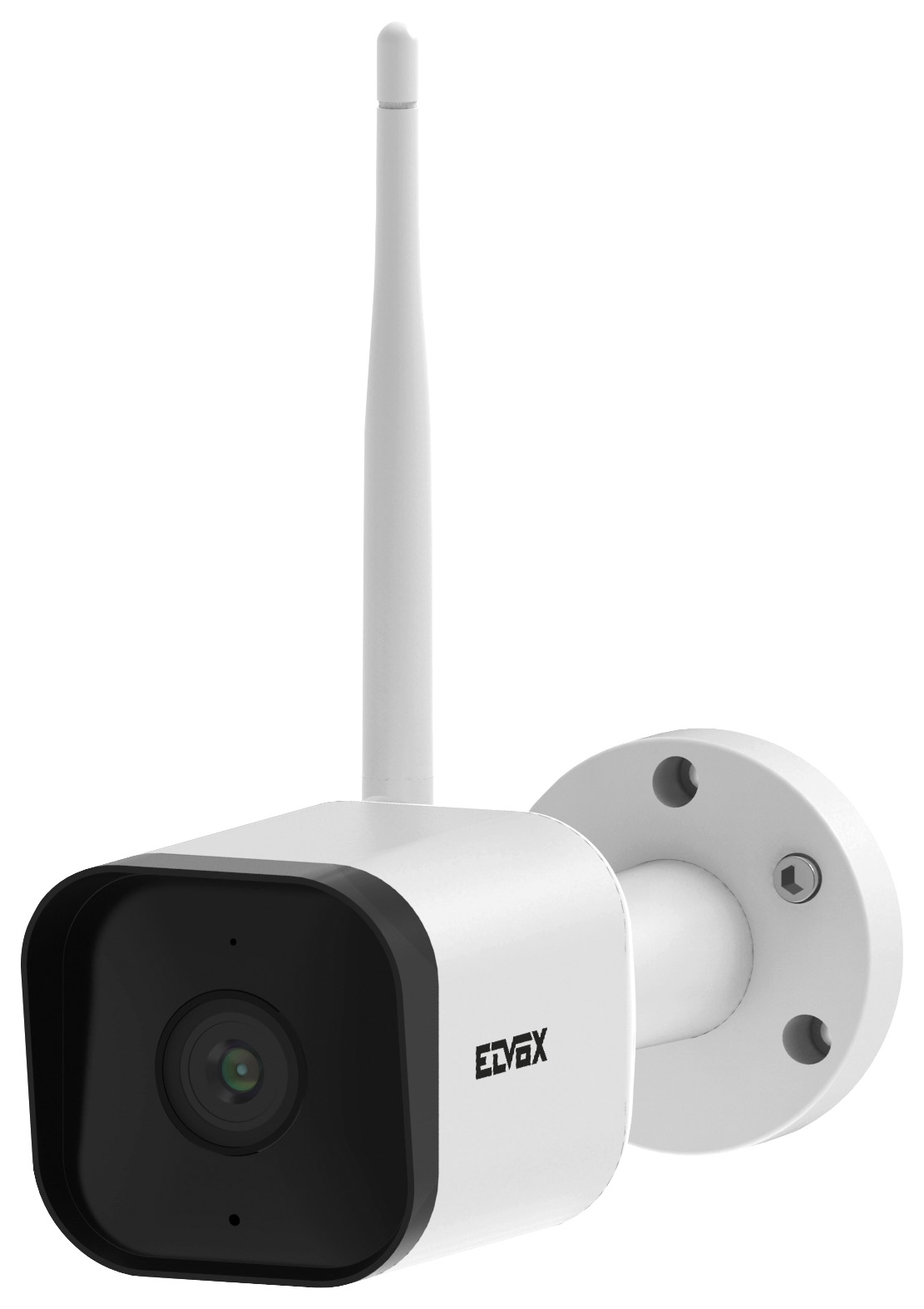

Wi-Fi bullet camera 4Mpx for 46305.D kit
Wi-Fi IP Bullet camera dedicated to the Wi-Fi KIT code 46305.D, 2K resolution, (4Mpx, 2560 x1440), indoor/outdoor installation (IP65), repeater function and open-air installation up to 200m from the NVR, 3.6mm lens with 95° view angle, H.265 compression, 12 VDC plug power supply unit included, IR night vision 10m. Dimensions: 164x58x163mm. Weight 300 g

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Construction type
Bullet shape
Thermal camera
No
Number of pixels (Megapixel)
4
With lens
Yes
Modular (lens and camera separated)
No
Shutter control
DC
Lens connection
Other
Motor zoom
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
No
Communication medium wireless
No
Type of interface
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
None
Picture system
PAL
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
10 m
With white light
Yes
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
256
Number of digital inputs
0
Number of digital outputs
0
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
IK00
Degree of protection (IP)
IP65
With microphone
Yes
With loudspeaker
Yes
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
7.500,00 mm
Height
75,00 mm
Width
7.500,00 mm
Depth
168,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352796225
1 NR
19x9x14.5 [cm]
600 [g]
