Additional adjustable supply unit - 6582.1

6582.1
ELVOX Door entry system / Multi-wire video entry system / Shared A/V components / System components

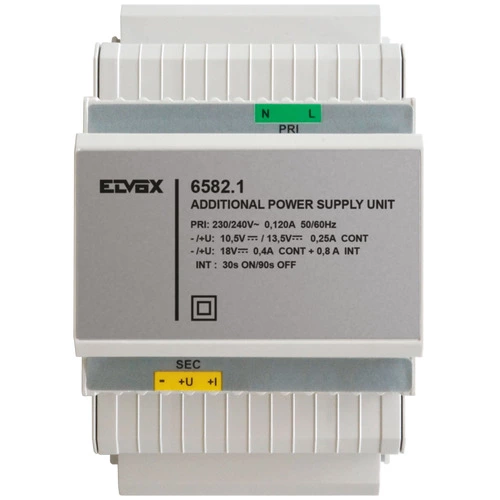

Additional adjustable supply unit
Additional linear power supply unit with adjusTable 10.5 VDC, 13.5 VDC and 18 VDC output, 230/240 V~ 50/60 Hz 30 VA power supply, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (1120 kb)
• SI - Schemi Installativi - 49401521A0 (802 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique (components and systems)

Class
Power supply door communication

Application
Other

Input voltage
230 V

Type of current
DC

Output voltage
10,50 V

Height
118,40 mm

Width
71,80 mm

Installation technique
Bus system

Integrated door opening circuit
No

Control function
No

Evaluation function
No

Service indication
No

Mounting method
Other

Programming lock
No

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406318169

1 NR

13.5x8.5x7.5 [cm]

626 [g]
