Back box for entrance panels, 3 modulesCode 9193

Download as PDFPDF

9193: ELVOX Door entry system / 2F/2F+ video door entry system / Outdoor stations / Mult.ser.Pix,He,12,13,8,Pa,Ste

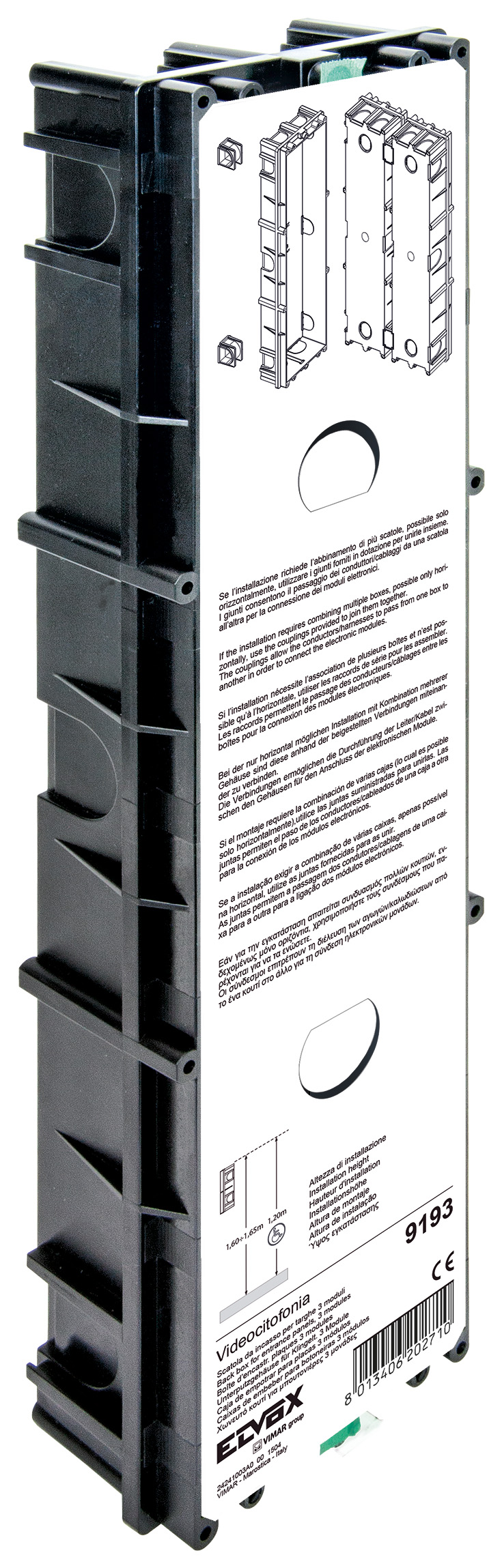

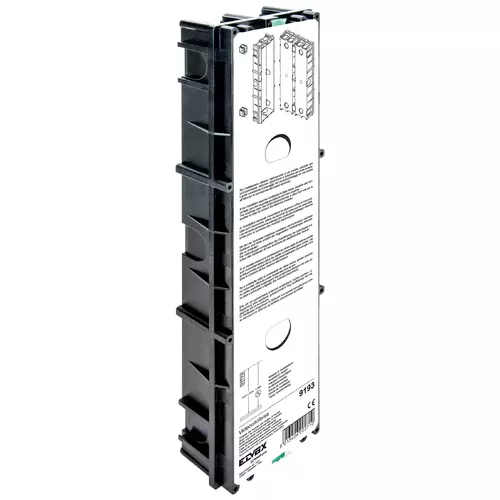

Back box for entrance panels, 3 modules: Mounting box for entrance panels for 3 modules, provided with antimortar cover and spacer for installation in banks<(>,<)> light blue. Dimensions 94x365x50 mm
Product Status: 3 - Active

You may also be interested in

41133.02 - Pixel frame+plate 3M slate grey

41133.04 - Pixel frame+plate 3M anodized grey

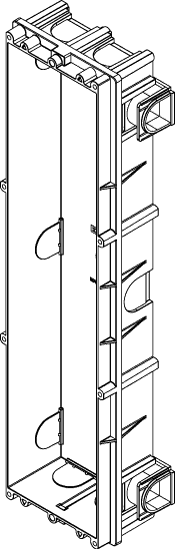

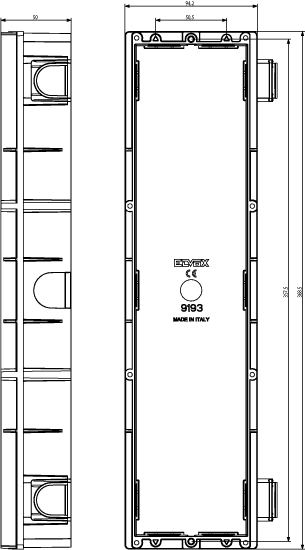

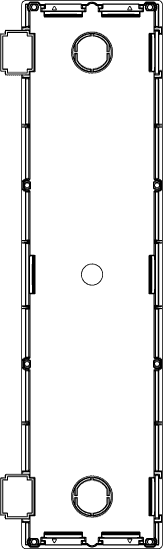

Drawings

Class group
Communication technique (components and systems)

Class
Mounting frame for door station

Number of units
3

Material
Aluminium

Colour
Other

Mounting method
Built-in

Height
368,50 mm

Depth
6,00 mm

Minimum order quantity: 1 NR

Barcode

8013406202710

36.5x10x5 [cm]

256 [g]

8013406225948

10 NR

39x27x21.3 [cm]

2,822 [g]

Question:	Which flush mounting box must I use to install the PIXEL panel?
Answer:	It is possible to use standard flush mounting boxes (art.9191,9192,9193, according to dimensions)
