Pixel frame+plate 3M slate grey - 41133.02

41133.02
ELVOX Door entry system / Video entry outdoor stations / Shared A/V components / Mounting frames/frames

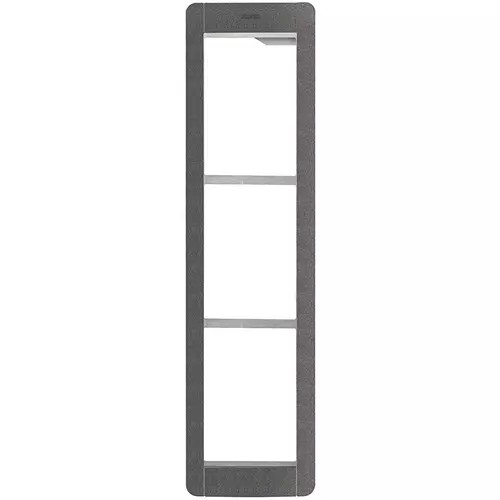

Pixel frame+plate 3M slate grey
Mounting frame and plate, 3 modules, slate grey. Dimensions 99.5x391 mm

Product Status
3 - Active

You may also be interested in

9193 - Back box for entrance panels, 3 modules

41143.02 - Pixel rainproof cover 3M slate grey

41153.02 - Pixel surface box 3M slate grey

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (5969 kb)
• Label printer module for entrance panels (2191 kb)

Video

• Pixel video door entry panel
• Retrofit with existing back boxes
• After Installation
• Interacting with the TAB Free
• Installation and configuration

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique (components and systems)

Class
Mounting frame for door station

Number of units
3

Material
Aluminium

Colour
Grey

Mounting method
Surface mounted

Height
391,00 mm

Depth
40,70 mm

00. CE Marking - EU

Minimum order quantity: 1 NR

---

Barcode

8013406272171

1 NR

40.5x11x6 [cm]

415 [g]
