EKKO 400D linear operator 24V 4m 250kg - EAM3

EAM3
Safety / ELVOX Automations / Motors / Hinged

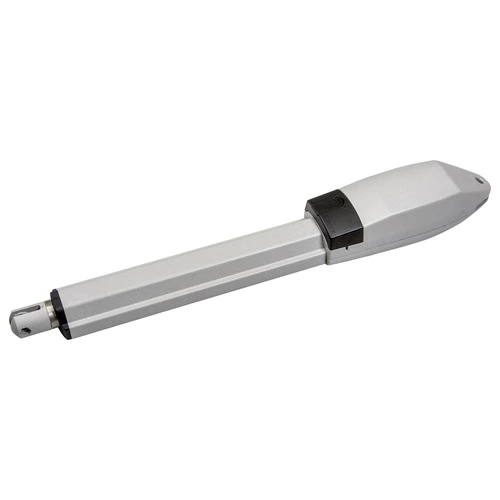

EKKO 400D linear operator 24V 4m 250kg
EKKO 400D non-reversible 24 V electromechanical linear operator for swing gates up to 4 m and 250 kg, complete with fixing brackets and motor with magnetic encoder

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Esploso serie EKKO 300D e 400D - EN (746 kb)
• Installer manual (1763 kb)

Class group
Gate operators, pumps and ventilators

Class
Swing gate operator

Model
One-wing, left and right

Max. width of door/gate wing
4.000 mm

Max. weight of door/gate leaf
550 kg

Type of current
DC

Motor voltage
24 V

Limit switch
Internal end switch

With motor control unit
No

With post fittings
Yes

With wing fittings
Yes

With key-switch
No

With radio receiver
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406228147

1 NR

103x16x17.2 [cm]

10,200 [g]

Share

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
