Radio tubular actuator 230Vac 30NmCode EV45ER/30

EV45ER/30

Safety / ELVOX Automations / Motors / Windows and doors

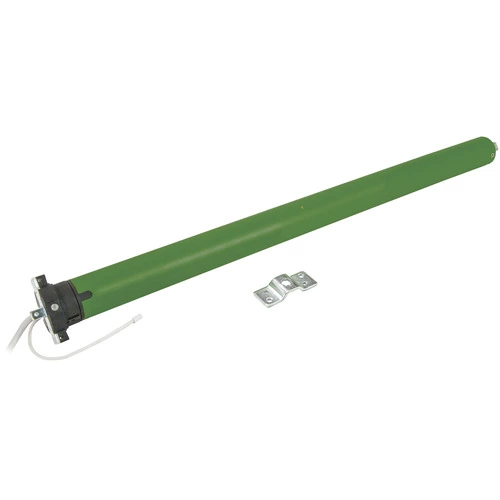

Radio tubular actuator 230Vac 30Nm

Ø45 mm tubular motor for roller shutters, 230 Vac, torque 30 Nm, rotation speed 15 rpm, absorbed power 191 W. With radio receiver and electronic limit switch incorporated in the motor. Residential, commercial and tertiary use, includes wall fixing bracket. Power cable length 2.5 m.

Product Status

2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Installer manual (2016 kb)

Class group
Drive systems for roller shutters, doors, windows

Class
Tube mounted motor

Outer diameter
45 mm

Torque
30 N/m

For roller blinds
Yes

For awnings
No

Max. weight of roller shutter
60 kg

Type of end switch
Electronic

Back jump
No

Electronic route monitoring
No

Electronic obstacle recognition
No

With carrier
Yes

With shaft adaptor
Yes

Length
675 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406288530

1 NR

73x8.5x8.5 [cm]

2,500 [g]

8013406292865

10 NR

73x43x18.5 [cm]

26,000 [g]
