Two rocker buttons+blind-actuator white - R16967.B

Download as PDF PDF Add to portfolio
Immagine R16967.B
download product photo

R16967.B
Smart systems&products / By-me Plus / IDEA / Devices

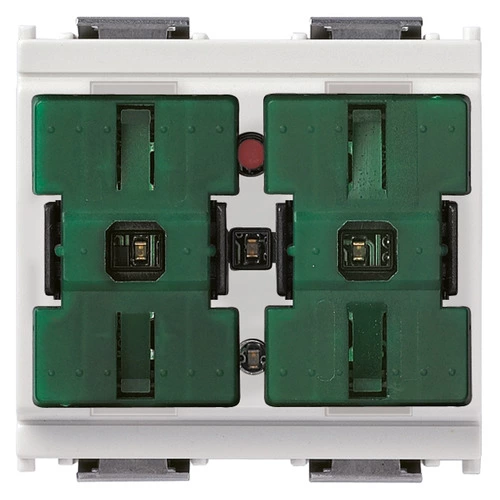

Two rocker buttons+blind-actuator white
Spare control device with two rocker buttons and 1 roller shutter actuator with change-over relay output for cosφ 0.6 motor 2 A 120- -230 V~, to be completed with 1 or 2 module interchangeable , white buttons - 2 modules

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Operating method
Push button
Number of rockers
2
Number of modules (module system)
200
Number of poles
1
Nominal voltage
230 V
Rated current
4,00 A
With lighting
Yes
Monitoring contact
No
Mounting method
Built-in
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
9001
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP40
Device width
49,80 mm
Device height
50,10 mm
Device depth
44,80 mm

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352617087
1 NR
11.2x9.6x9.8 [cm]
140.67 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
