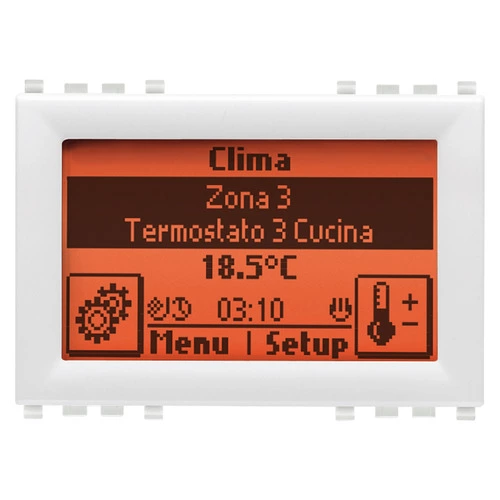

Touch control unit 3M white
Spare control unit and home automation system configuration, B&W touch screen, 1 input for temperature sensor, supplied with accessory V51923 for installation on DIN rail (60715 TH35), white - 3 modules. Complete with RJ45 front programming connector, cable and accessory V51921 for installation on DIN rail (60715 TH35)

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Manuale installatore (17585 kb)
• Manual del instalador (17240 kb)
• Installer manual (17199 kb)
• Installationsanleitung (17194 kb)
• Multilanguage user manual (6037 kb)
• By-me automation-fw Compatibility (206 kb)
• By-me burglar alam-fw Compatibility (99 kb)

Video

• Programming using the 3M control unit

Class group
Installation bus systems

Class
Signalling and operation panel for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Other bus systems
None

Radio frequent bidirectional
No

Model
Signalling and operating panel

Mounting method
Flush-mounted

Text field
Yes

Display
Monochrome

Touch function
Yes

Additional interfaces
Other

With bus connection
Yes

Material
Plastic

Material quality
Other

Colour
White

RAL-number (similar)
9016

Degree of protection (IP)
IP40

00. CE Marking - EU

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352617650

1 NR

22x15.9x8.2 [cm]

446 [g]
