IP40 surface consumer unit 12M +door - V50412

Download as PDF PDF Add to portfolio

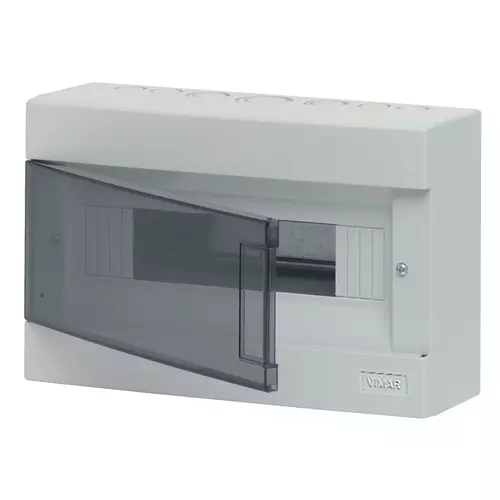

Immagine V50412
download product photo

V50412
System infrastructure / Enclosures and control units / Switchboards / Surface mounting

IP40 surface consumer unit 12M +door
Surface mounting consumer unit with vertically hinged transparent door, 12 (12+1) modules, top and bottom knockouts, RAL 7035 grey. Pre-set for support for earth terminal block V51861

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted
Number of rows
1
Width in number of modular spacings
12
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
0,00 mm
Inner depth
94,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
Colour
Grey
EMC-version
No
RAL-number
0
Degree of protection (IP)
IP40
Height
185,00 mm
Width
160,00 mm
Depth
95,00 mm

00. CE Marking - EU

01. IMQ - Italy

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352152618
1 NR
28.5x18.5x9.5 [cm]
691.6 [g]
Barcode Qty 8 NR
8007352152625
8 NR
62x42x26 [cm]
6,434 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
