IP55 surface consumer unit 24M+door grey - V51124

Pdf
V51124

Consumer units / Surface mounting / IP55 consumer units

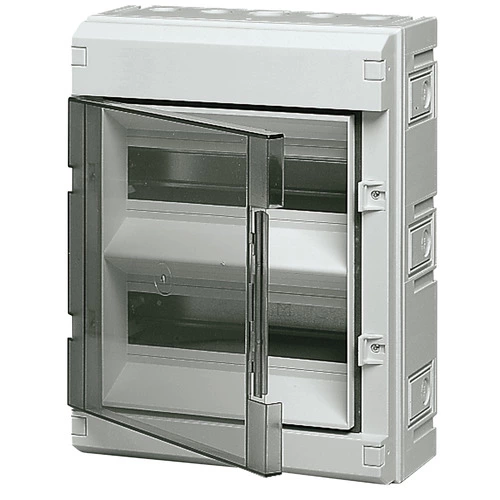

IP55 surface consumer unit 24M+door grey
Surface mounting consumer unit with horizontally hinged transparent door, 24 modules, RAL 7035 grey. Adjustable DIN (60715 TH35) rail to accomodate non-standard products. Screwcaps for double insulation. Pre-set for support for earth terminal block V51856. It can be used with cable entry V51790 and adjoined to additional consumer units with joining accessories V51905 or V51912

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted (plaster)
Number of rows
2
Width in number of modular spa
24
Type of cover
Door
Cover model
Closed
Transparent cover/door
Yes
Material housing
Plastic
Height
375,00 mm
Width
285,00 mm
Depth
140,00 mm
Built-in depth
0,00 mm
Internal depth
139,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP55
With lock
No
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352078994
1 NR
28.5x37.5x14 [cm]
2,070 [g]
Barcode Qty 6 NR
8007352079007
6 NR
46x60x40 [cm]
13,699.33 [g]
