Flush consumer unit 24M smokegrey - V53124

Pdf
V53124

Consumer units / Flush mounting / Consumer units

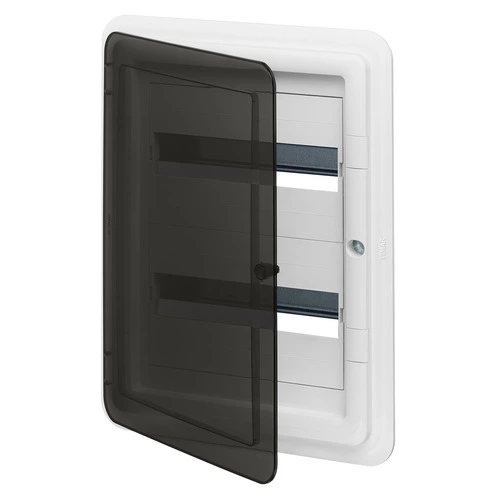

Flush consumer unit 24M smokegrey
24-module flush mounting consuner unit, IP40, with DIN (60715 TH35) rail and smoked glass door

Product Status
3 - Active

Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush mounted (plaster)
Number of rows
3
Width in number of modular spa
24
Type of cover
Door
Cover model
Closed
Transparent cover/door
Yes
Material housing
Plastic
Height
445,00 mm
Width
345,00 mm
Depth
108,00 mm
Built-in depth
75,50 mm
Internal depth
107,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP40
With lock
Yes
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352510142
1 NR
46.5x36.5x14 [cm]
1,980.4 [g]
