Flush consumer unit 72M white - V53172.B

Pdf
Vimar - V53172.B - Flush consumer unit 72M white
Vimar - V53172.B - Flush consumer unit 72M white
V53172.B

Consumer units / Flush mounting / Consumer units

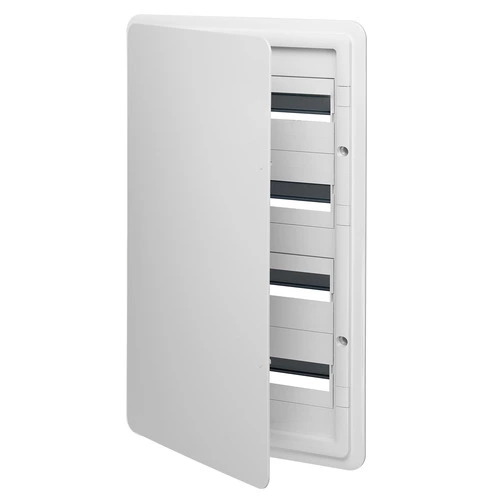

Flush consumer unit 72M white
72-module flush mounting consuner unit, IP40, with DIN (60715 TH35) rail and blind white door

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. V53172.B
PNG DXF
rear view art. V53172.B
PNG DXF
3D view art. V53172.B
PNG DXF
Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush mounted (plaster)
Number of rows
4
Width in number of modular spacings
72
Type of cover
Door
Cover model
Closed
Transparent cover/door
No
Material housing
Plastic
Height
745,00 mm
Width
455,00 mm
Depth
116,20 mm
Built-in depth
75,50 mm
Internal depth
115,20 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
White
RAL-number
0
Degree of protection (IP)
IP40
With lock
Yes

01. IMQ - Italy

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352510210
1 NR
77x49x14 [cm]
4,620 [g]
