Flush junction box 479x154x70mm - V70009

Pdf
V70009

Enclosures and mounting boxes / Junction flush mounting boxes / Mounting boxes

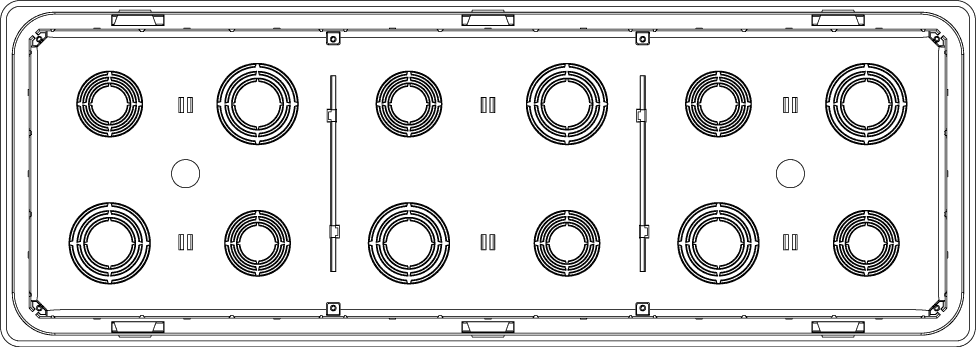

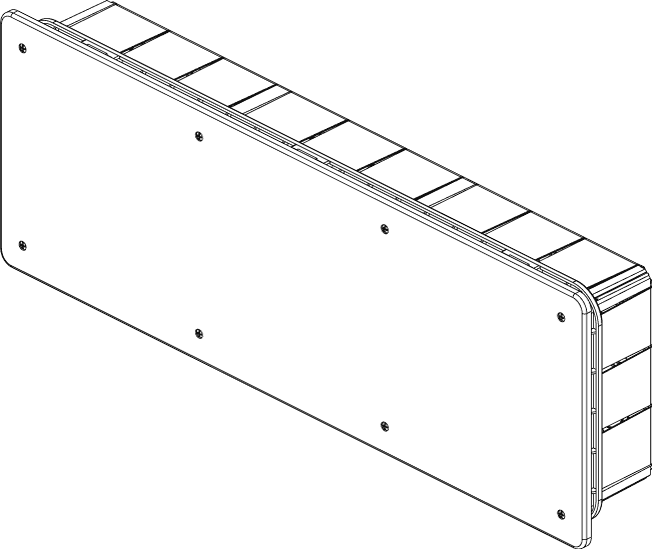

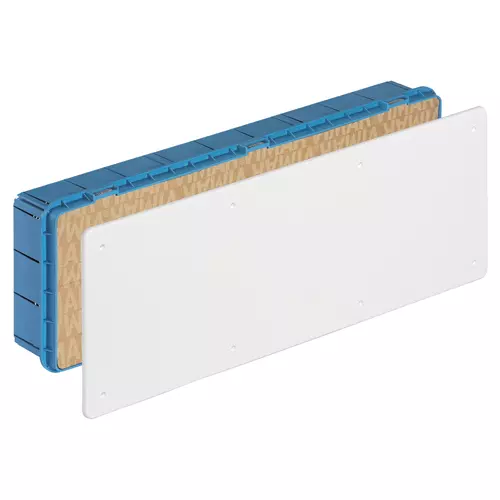

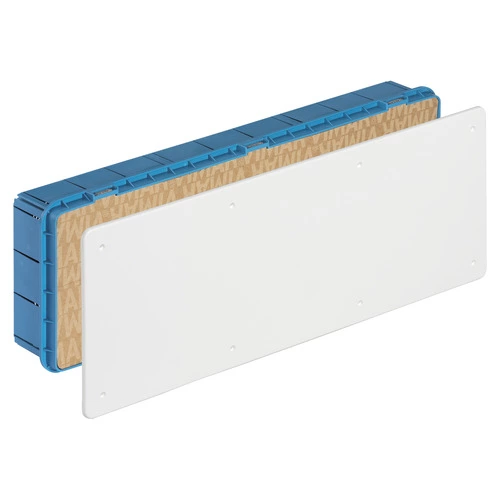

Flush junction box 479x154x70mm
Flush mounting junction box with white cover and fixing screws. Dimensions 479x154x70 mm

Product Status
3 - Active

You may also be interested in

Class group
Connection devices
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush mounted (plaster)
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Connectable
Yes
Equipped with
None
Diameter
0 mm
Length
479,00 mm
Width
479,00 mm
Depth
0,00 - 70,00 mm
Internal depth
70,00 mm
For number of electric fittings
0
Mounting switching equipment
Spread
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
Other
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
36
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
Blind cover
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
With nail lugs
No
Special application
None

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352082076
1 NR
50.4x17.9x7.6 [cm]
545.2 [g]
Barcode Qty 10 NR
8007352453586
10 NR
59x39x44 [cm]
6,710 [g]
Barcode Qty 160 NR
8007352453593
160 NR
120x80x190 [cm]
87,232 [g]
