Multimedia video touch screen 10in IP - 21553.2

Pdf

21553.2
Smart systems&products / By-me Plus / EIKON / Devices

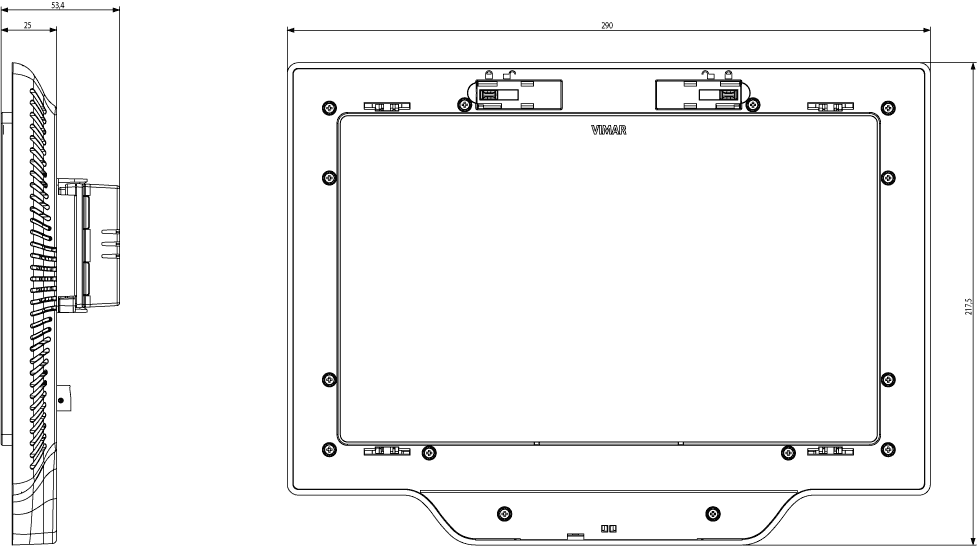

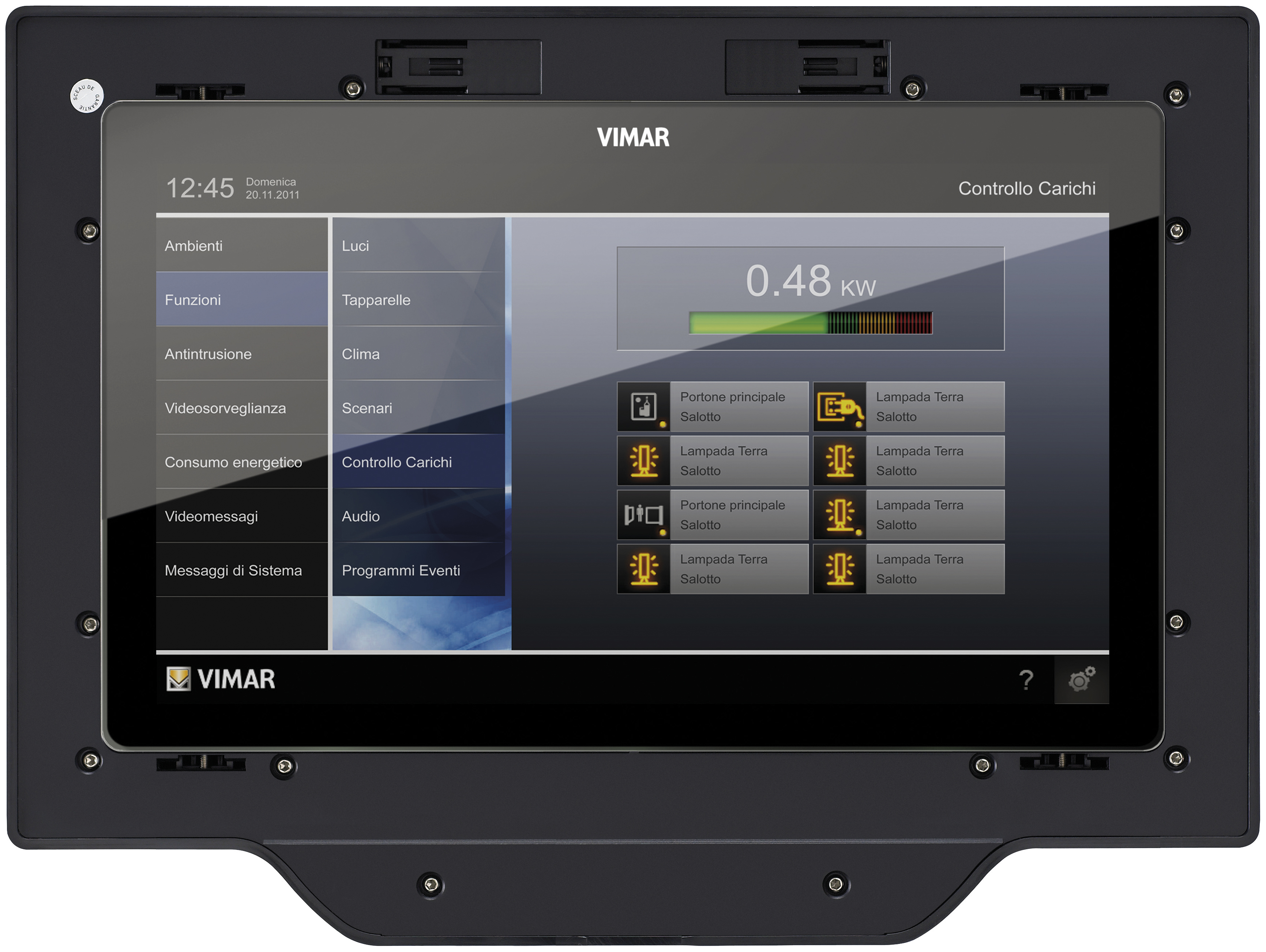

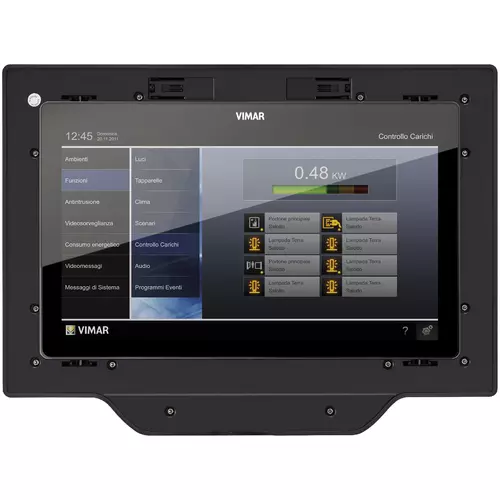

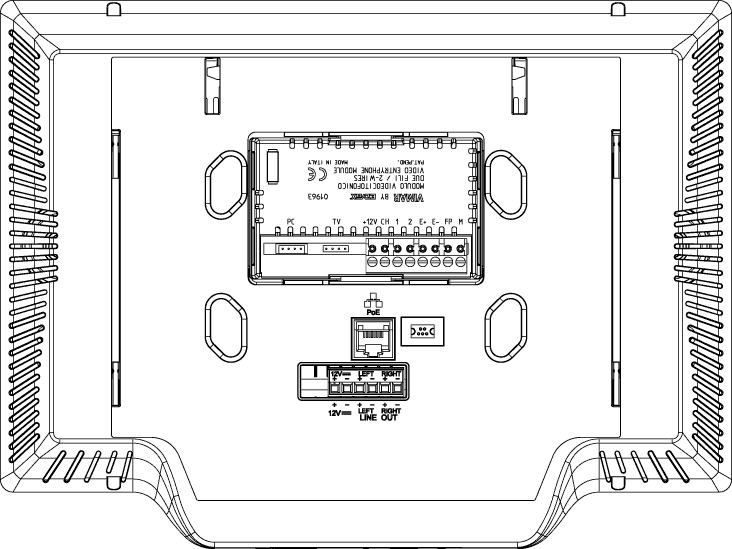

Multimedia video touch screen 10in IP
10 in IP multimedia video touch screen, Due Fili inner units for video door entry system and supervisor for home automation system via web server, supply voltage PoE or 12-30 Vdc, with built-in mounting frame for V71318 and V71718 mounting boxes

Product Status
9 - Discontinued

Question: Can the Touch screens and Full Flat Video Touch screens only be installed with EikonEvo series plaques?
Answer: Yes, the compatibility between new products and plaques is limited to the EikonEvo series.
Question: I can’t control the By-Alarm system from the various By-me touch screens (art.21554, 21553.2, etc.) or from the Webserver.
Answer: To manage the By-alarm system from By-me devices (WebServer, Touch) you must have correctly configured the WebServer and must check, on keypad 01705, that the “PC – CONTROL UNIT” parameter is enabled, i.e. set to “YES”.

Didn't find the answer you were looking for?

Ask a question

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
