0002.063.E
Safety / ELVOX CCTV / AHD / Accessories

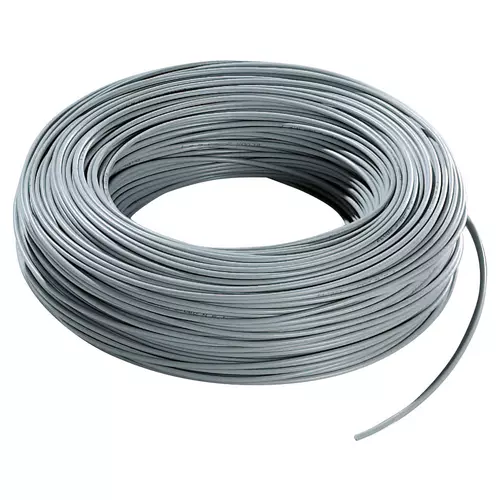

Cable 2x0,35+coaxial 75ohm PVC Eca 200m
Cable for video system, 2x0,35 mm2 + 75 ohm coaxial cable, with PVC sheath, CPR Eca class, suitable for installation with I Category power supply cables (U0 = 400 V), grey - 200 m reel
Product Status
3 - Active
Class group
Cables and wires (unassembled)
Cables and wires (unassembled)
Class
Coaxial cable
Coaxial cable
Inner conductor material
Other
Other
Inner conductor category
Class 6 = very flexible
Class 6 = very flexible
Diameter outer conductor
3,00 mm
3,00 mm
Armouring/reinforcement
None
None
With rodent protection
No
No
Material outer sheath
Polyvinyl chloride (PVC)
Polyvinyl chloride (PVC)
Colour outer sheath
Grey
Grey
UV resistant
No
No
Outer diameter approximate
0,35 mm
0,35 mm
Approved type of underground installation
Other
Other
Minimum order quantity: 200 M
Barcode

8013406301024
1 M
100x0.55x0.55 [cm]
42.01 [g]

8013406301031
200 M
33x33x10.5 [cm]
8,402 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
