2P+E 16A P30 axial outlet black - 00224

00224
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

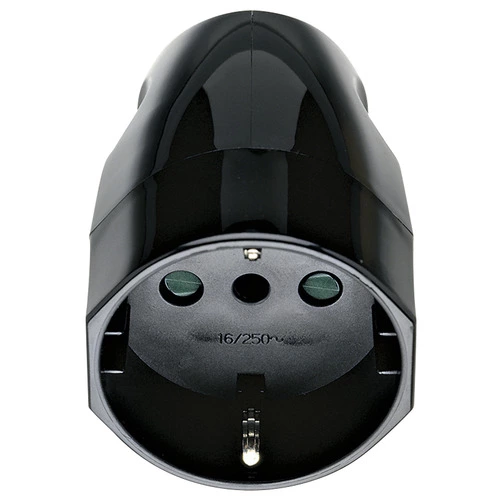

2P+E 16A P30 axial outlet black
Portable 2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts), axial cable entry, black

Product Status
3 - Active

You may also be interested in

00211 - 2P+E 10A S11 90°-plug black

00200 - 2P 10A S10 axial plug black

00201 - 2P+E 10A S11 axial plug black

00224.B - 2P+E 16A P30 axial outlet white

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Coupler with protective contact

Model
Italian type P30

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Degree of protection (IP)
IP20

Insert direction
Straight

Connection system
Screwed terminal

Suitable for protective contact pin
Yes

Colour
Black

RAL-number
0

Number of poles
2

Nominal voltage
250 V

Nominal current
16 A

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 50 NR

---

Barcode

8007352037328

1 NR

14x6x4.3 [cm]

51.7 [g]

8007352037335

50 NR

28.5x27x17 [cm]

2,930 [g]
