2P+E 16A P30 axial outlet white - 00224.B

Pdf

00224.B
Portable installation / Plugs and socket outlets / Portable plugs&socket outlets / Supernova series plugs&sockets

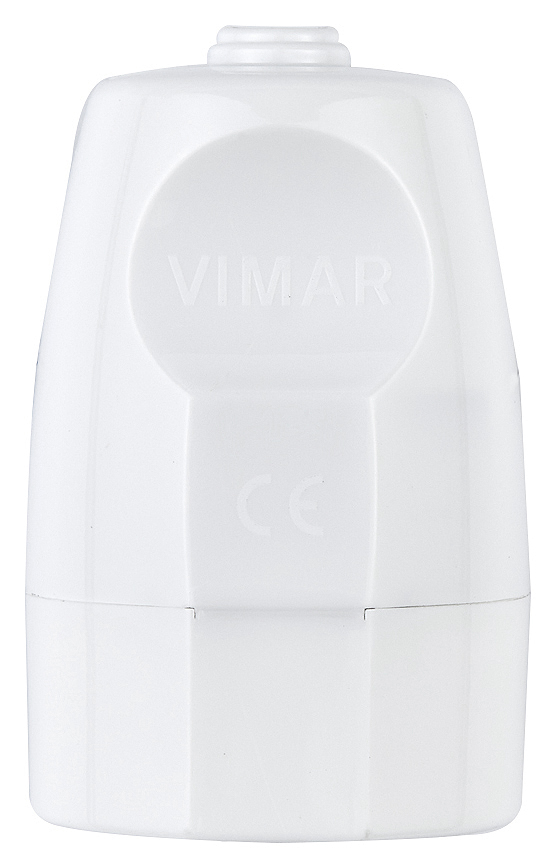

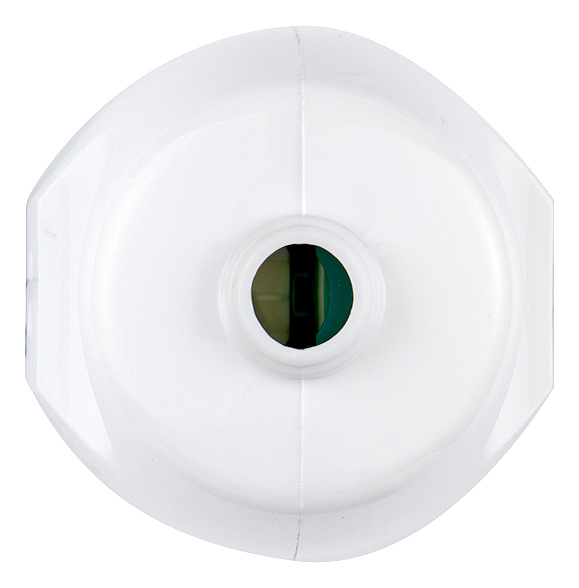

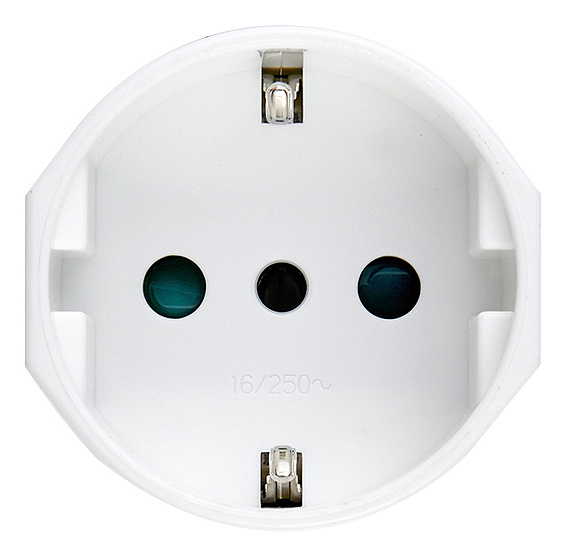

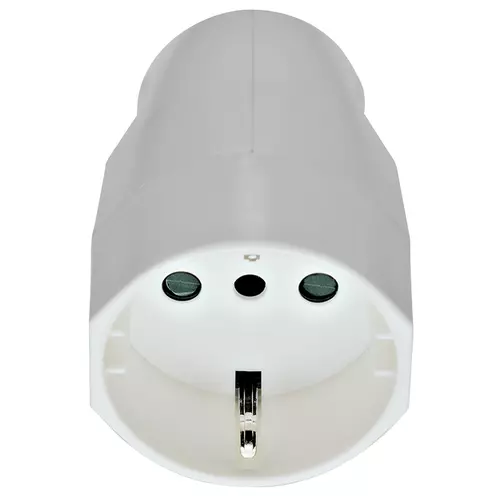

2P+E 16A P30 axial outlet white
Portable 2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts), axial cable entry, white

Product Status
3 - Active

You may also be interested in

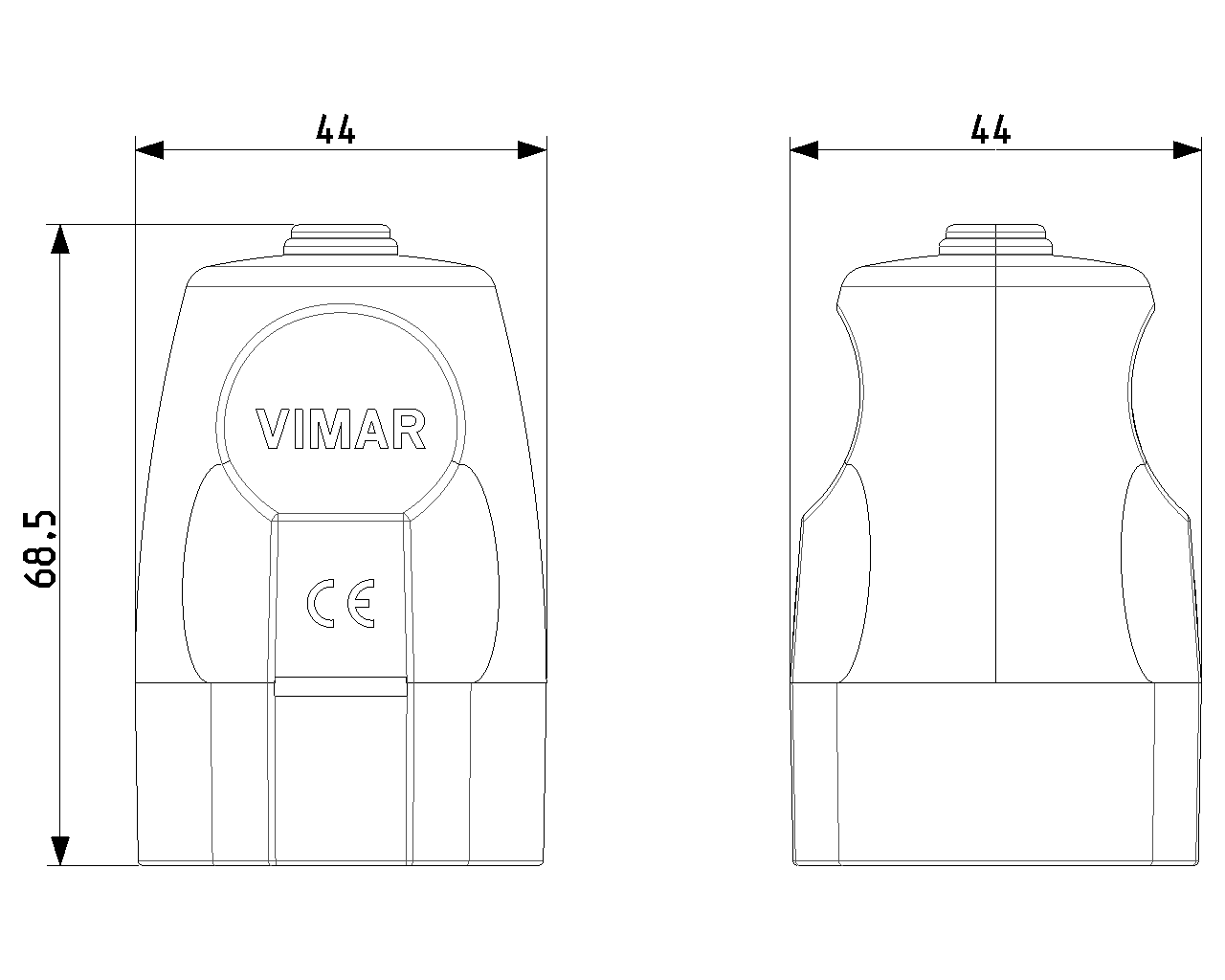

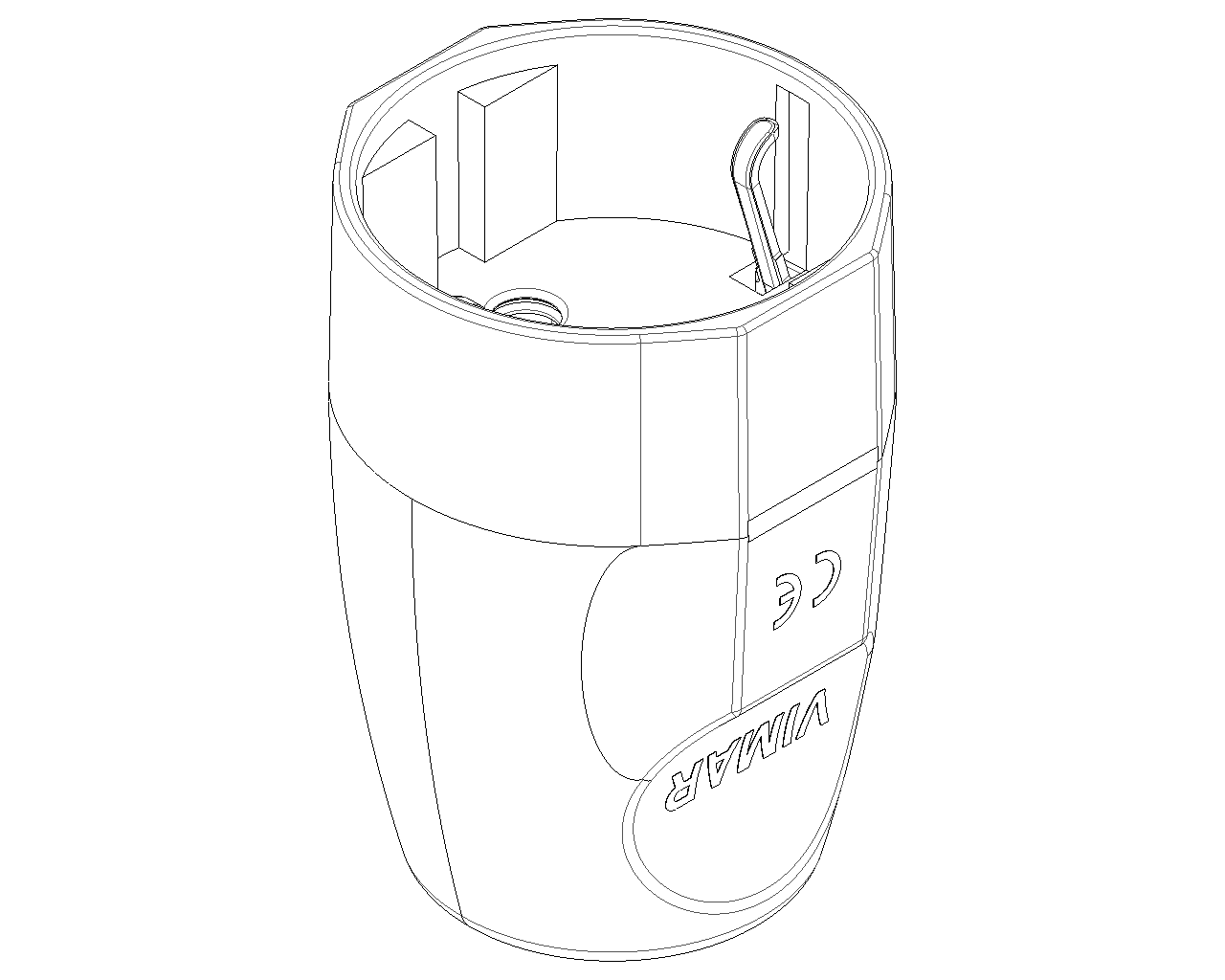

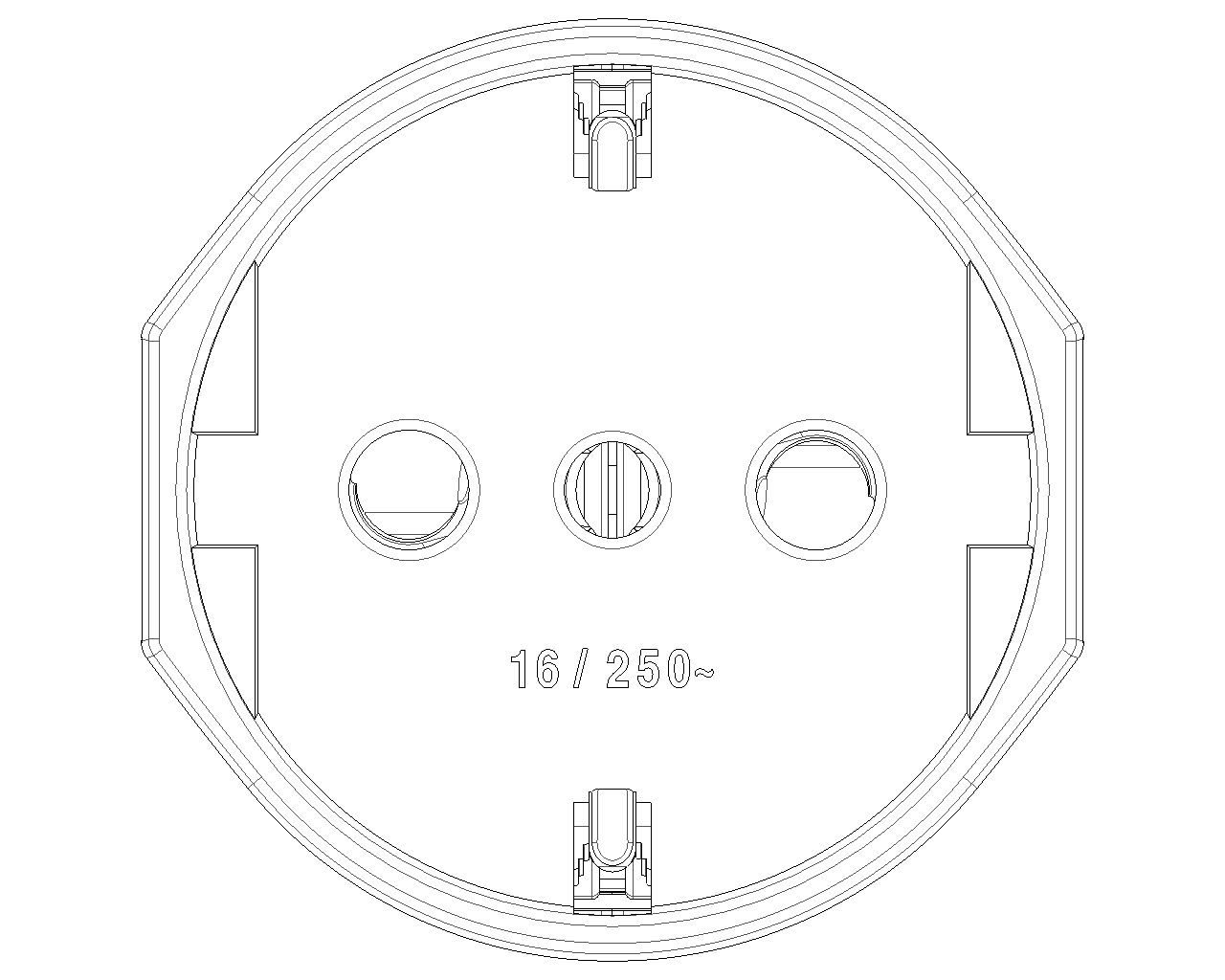

Drawings

Class group
Domestic switching devices
Class
Coupler with protective contact
Model
Italian type P30
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Degree of protection (IP)
IP20
Insert direction
Straight
Connection system
Screwed terminal
Suitable for protective contact pin
Yes
Colour
White
RAL-number
0
Number of poles
2
Nominal voltage
250 V
Nominal current
16 A

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

37. Marking - Morocco

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352037342
1 NR
14x6x4.2 [cm]
58.8 [g]
Barcode Qty 50 NR
8007352038349
50 NR
28.5x27x17 [cm]
2,940 [g]
