Linea 110-250V red LED unitCode 00943.R

Name: Linea 110-250V red LED unit
Brand: Vimar
Availability: InStock

Download as PDFPDF

00943.R: Wiring devices / Traditional wiring devices / Shared components / Accessories
Linea 110-250V red LED unit: LED signalling unit 110-250 V 50/60 Hz 0.4 W for aligned and axial controls, for front insertion under the button, red. Use in series at the load (indicator light off and controlled lamp ON) only with incandescent or halogen lamps. With other types of lamps, use in parallel with the load (indicator light on and controlled lamp on) or connected directly to the power supply (indicator light always on)
Product Status: 3 - Active

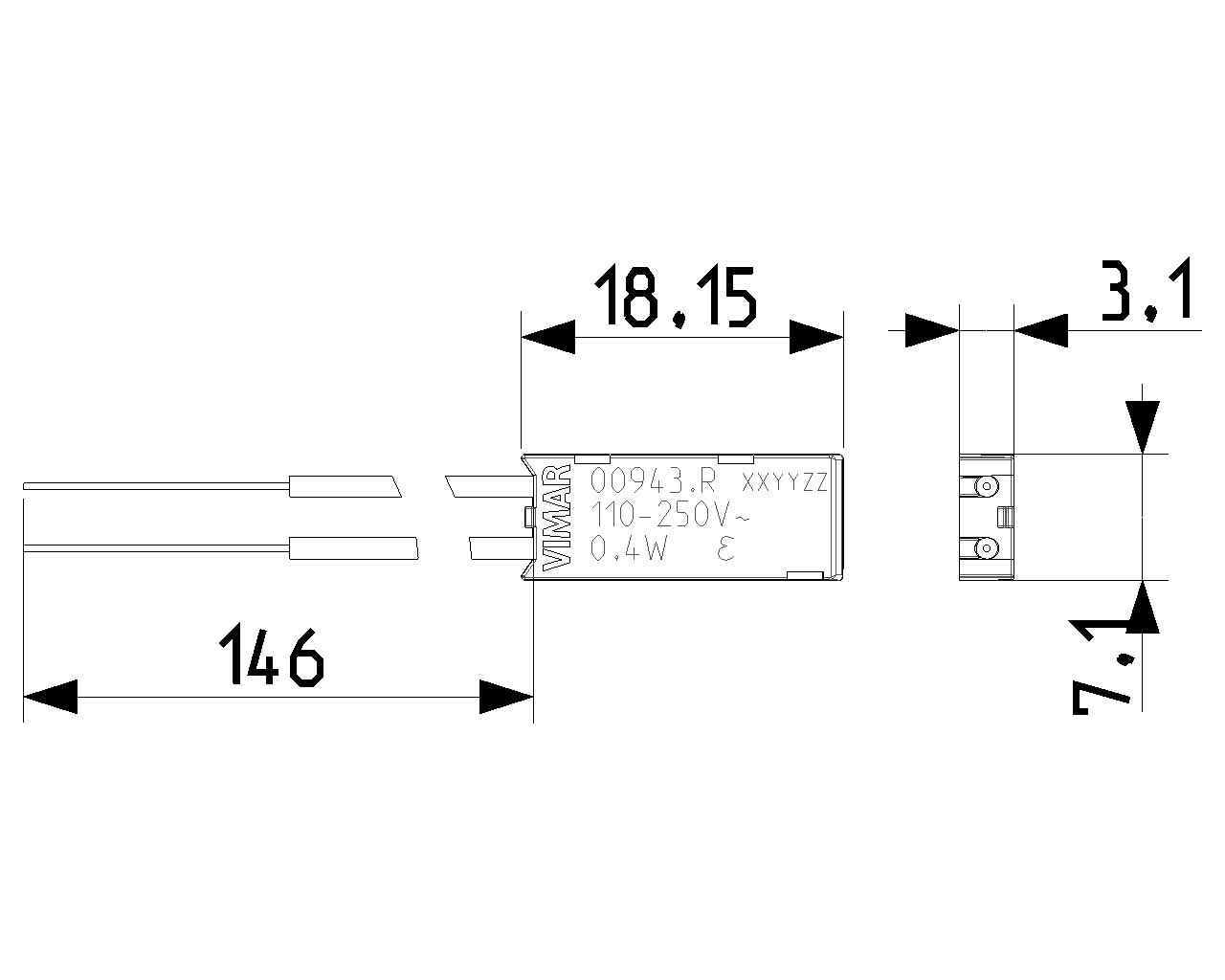

Drawings

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Illumination insert for domestic switching devices

Application
Switch/push button

Lamp type
LED

With light source
Yes

Colour light source
Red

Lamp holder
Other

Nominal voltage
110,00 - 250,00 V

Nominal electricity consumption
360,00 mA

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352681613

1 NR

0.7x15x0.7 [cm]

1 [g]

8007352681620

50 NR

13.9x11.9x7.4 [cm]

100 [g]

8007352747012

1,000 NR

38.5x29.5x25 [cm]

2,460 [g]
