Supply unit 120-230V~ 29Vdc 1280mA - 01401

Pdf

01401
Smart systems&products / By-me Plus / Shared components / DIN devices

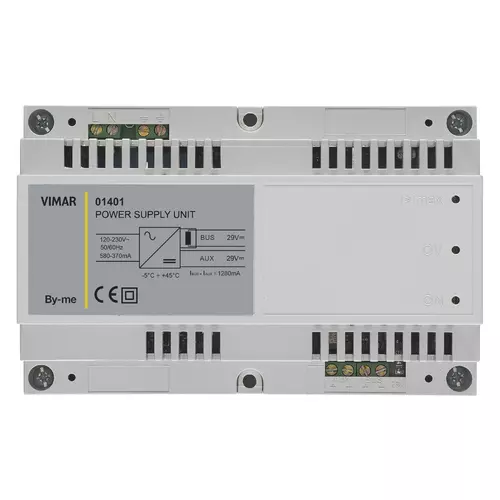

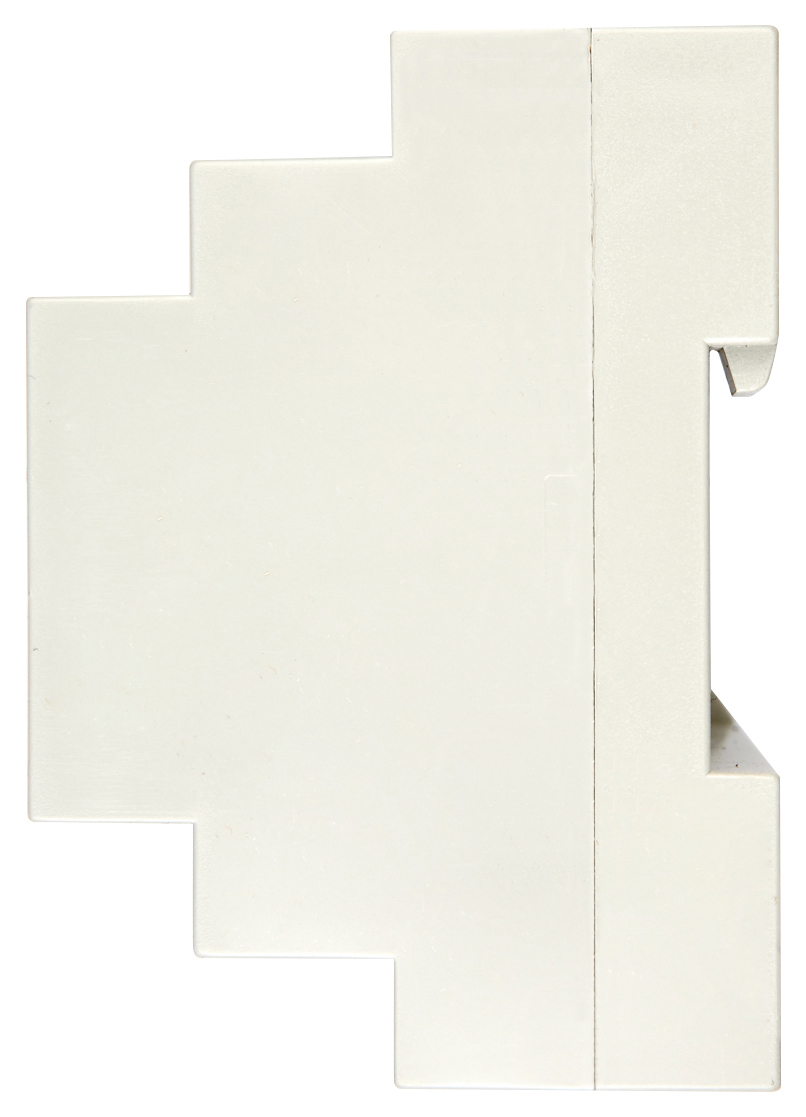

Supply unit 120-230V~ 29Vdc 1280mA
Power supply with 29 Vdc 1280 mA output, supply voltage 120-230 V~ 50/60 Hz, with decoupling coil (choke) for DIN (60715 TH35) rail installation, occupies 8 17,5 mm modules

Product Status
3 - Active

Sheets, Manuals, Documentation

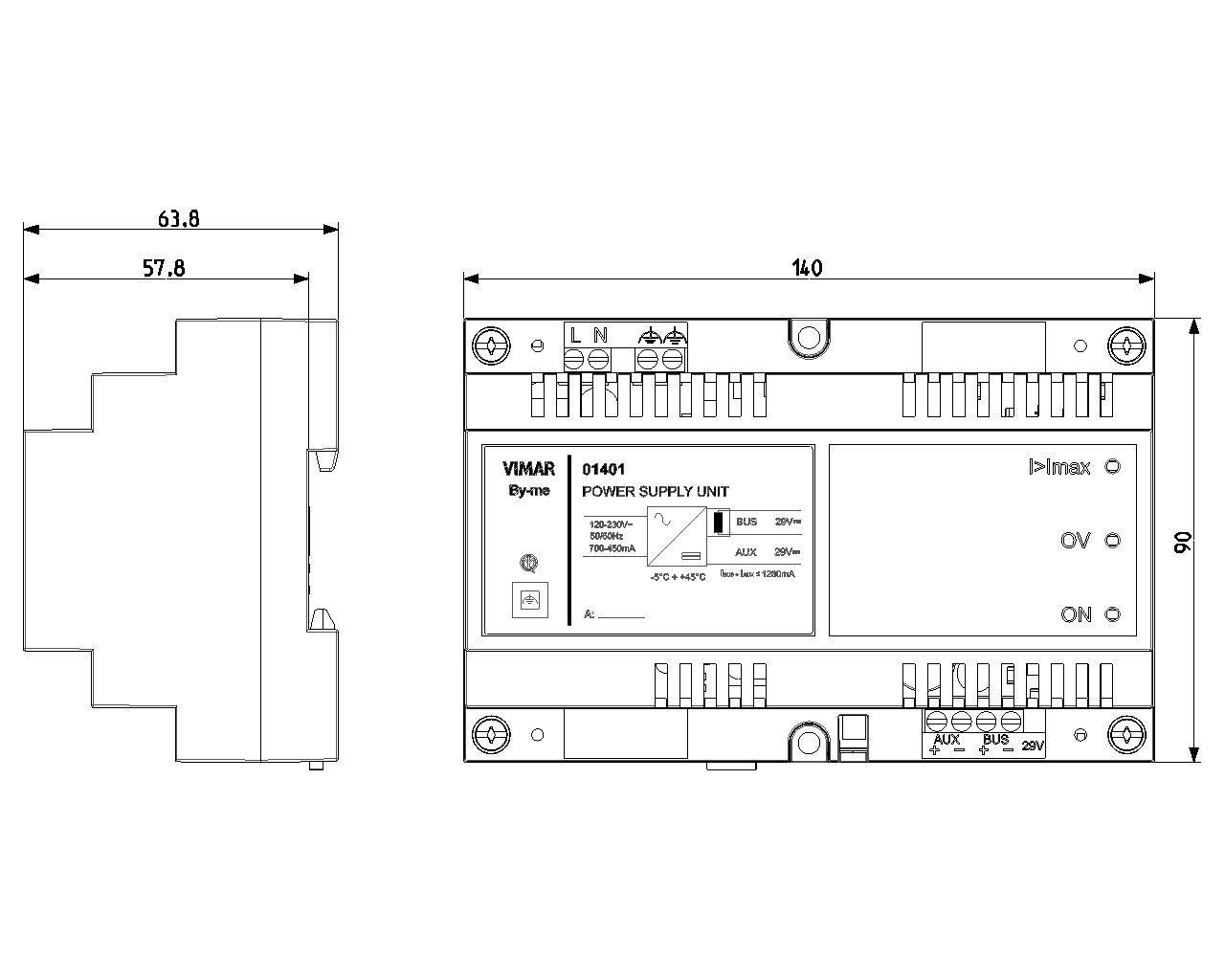

Drawings

Class group
Installation bus systems
Class
Power supply for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
Other
Width in number of modular spacings
8
With LED indication
Yes
Bus voltage stockable
No
Number of integrated choke coils
1
Number of lines to feed
2
Max. output current
1.280,00 mA

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352506121
1 NR
15.8x12.4x9.6 [cm]
519.1 [g]
Barcode Qty 30 NR
8007352573192
30 NR
59.5x26.5x41.5 [cm]
16,150 [g]
Question: Is a BUS connection necessary to control 6 loads via articles 01455 and 01471?
Answer: The products indicated not only necessarily have to be connected to one another via BUS cable, but a system home automation system power supply unit must also be envisaged (e.g. 01400 or 01401 according to need) and they must be commissioned via the related configurator device.
