Domotic logic unit - 01468

01468
Smart systems&products / By-me Plus / Shared components / DIN devices

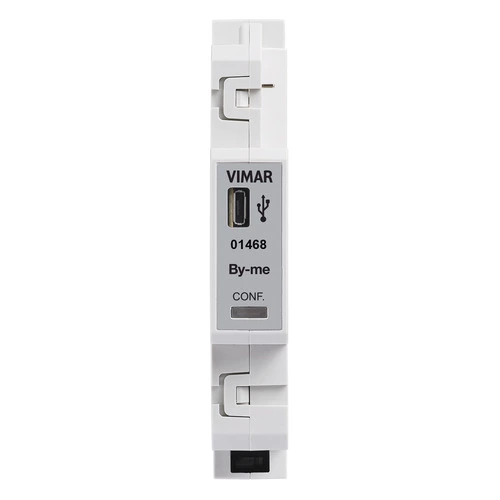

Domotic logic unit
Unit for implementing logic, mathematical, timing and messaging functions, installation on DIN rails (60715 TH35), for By-me home automation, configurable only with EasyTool Professional, occupies 1 module size 17.5 mm

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (487 kb)
• Manuale installatore (17947 kb)
• Installer manual (15305 kb)
• By-me automation-fw Compatibility (206 kb)

Video

• Clima2 01468
• Clima1 01468

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Logic component for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Other bus systems
Other

Mounting method
Other

Width in number of modular spacings
1

With bus connection
Yes

Logic object
Yes

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352512115

1 NR

14.2x6.7x5.9 [cm]

86.8 [g]
