Multifunct.autom.module 9IN 8OUT relay - 01470.1

01470.1
Smart systems&products / By-me Plus / Shared components / DIN devices

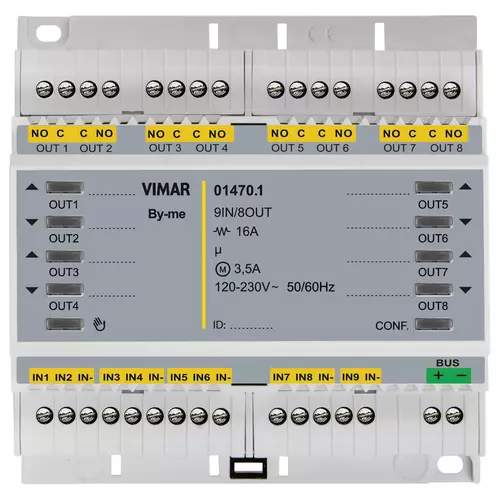

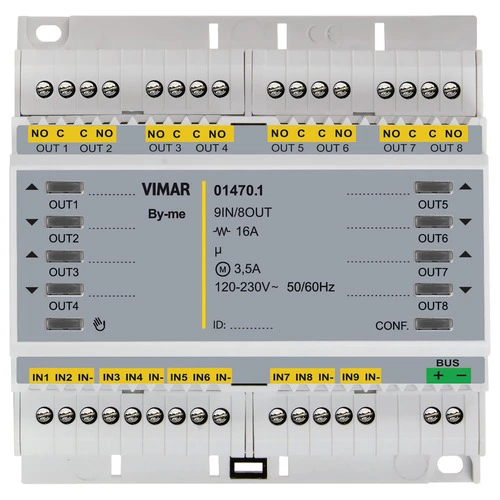

Multifunct.autom.module 9IN 8OUT relay
Module with 9 programmable inputs and 8 outputs, programmable digital inputs for contacts without potential, NO 16 A 120-230 V~ 50/60 Hz programmable relay outputs for lighting and laths orientation control, local control push buttons, By-me home automation, for DIN (60715 TH35) rail installation, occupies 6 17,5 mm modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (498 kb)
• Multilanguage instructions sheet (642 kb)
• Installation diagrams (361 kb)

---

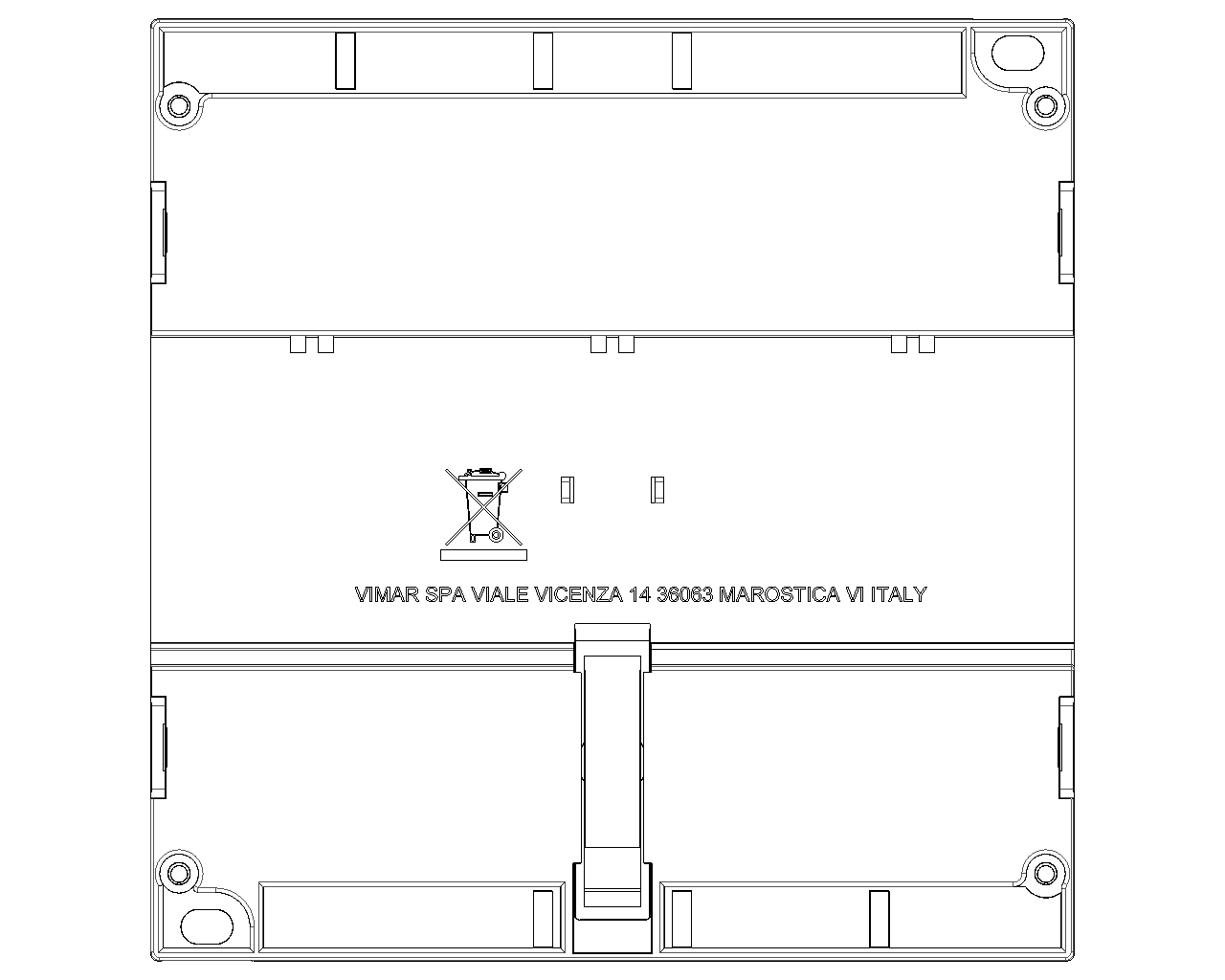

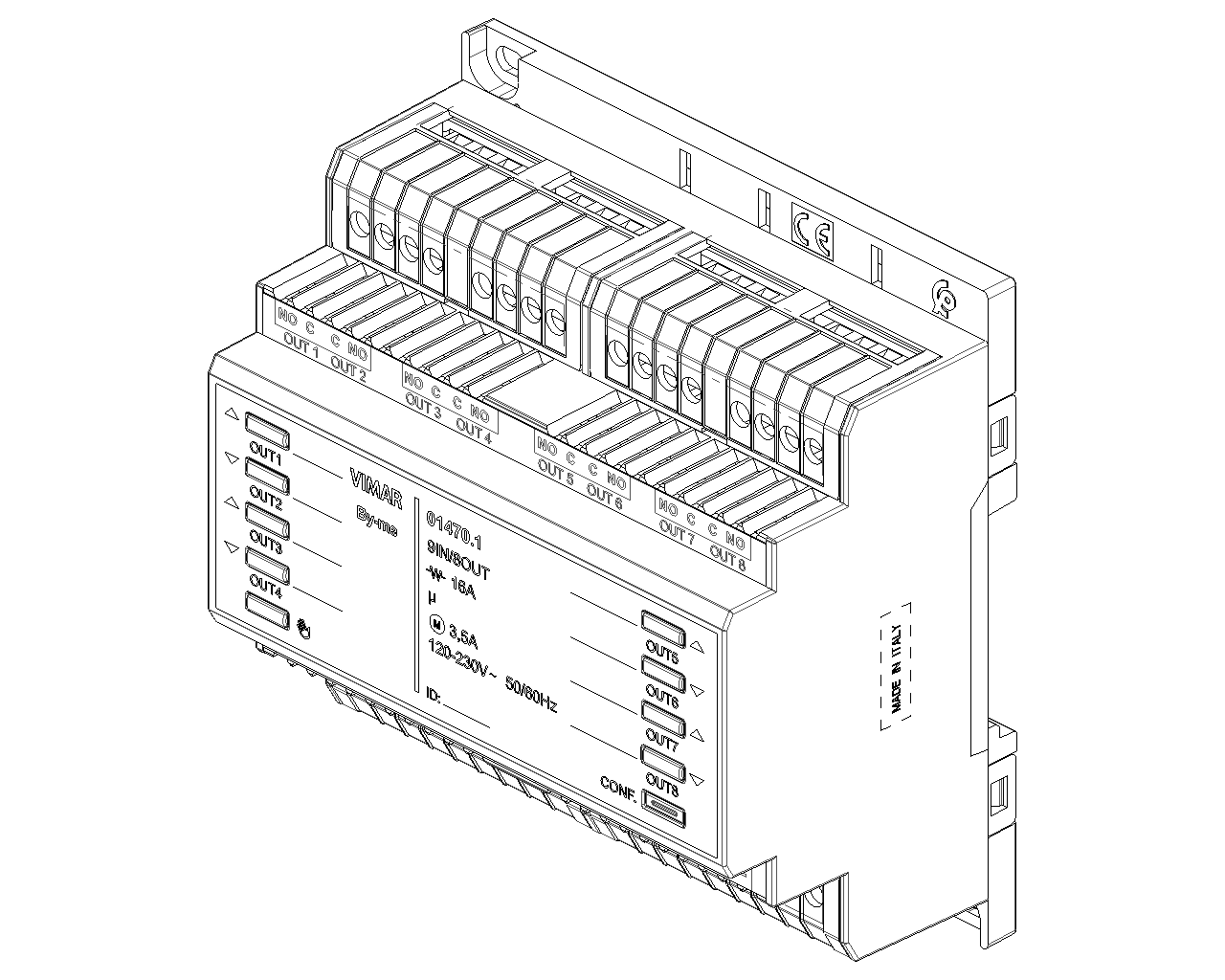

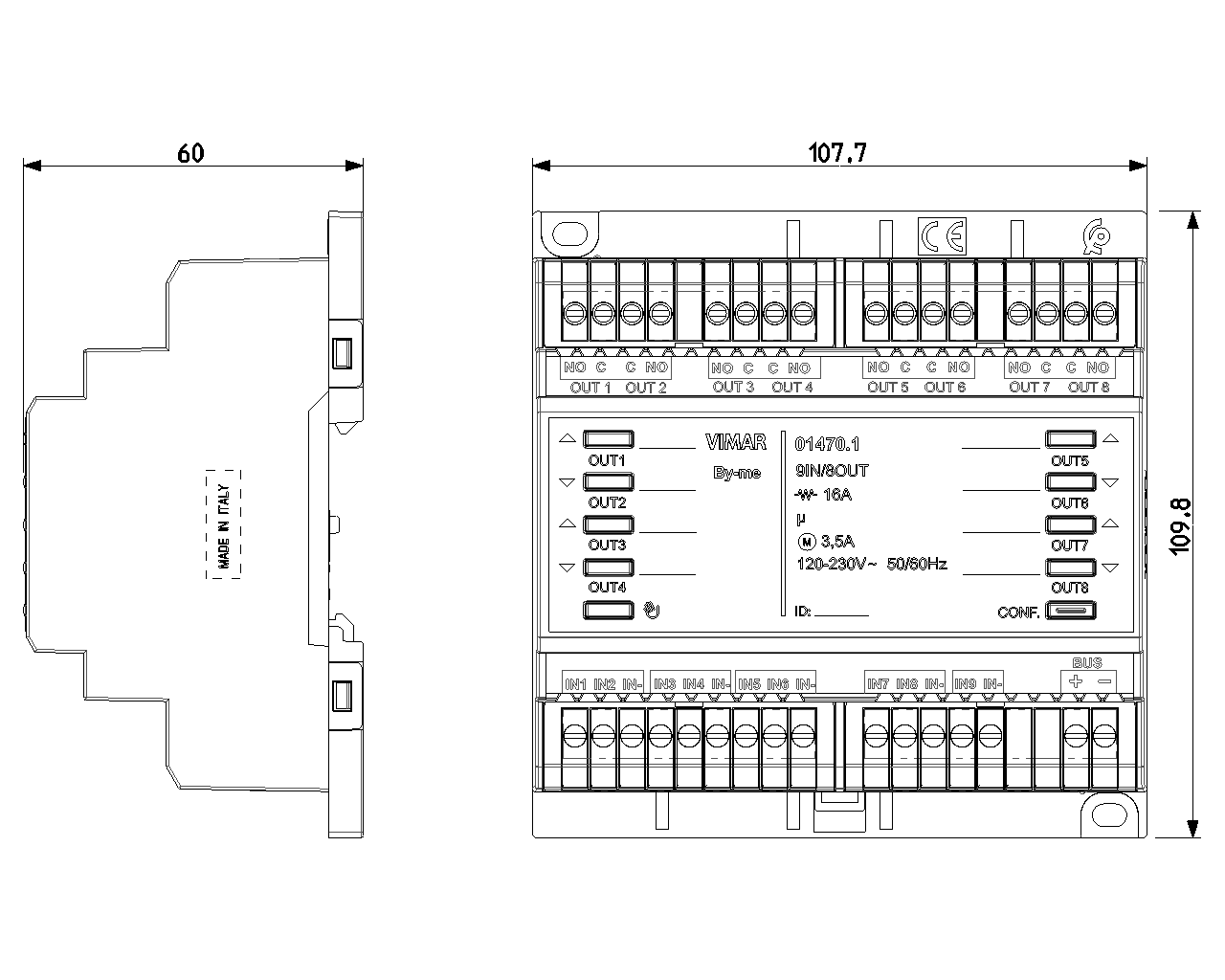

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Interface for bus system

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Radio frequent bidirectional
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Other

Surface finishing
Matt

Colour
Aluminium

RAL-number (similar)
7035

Transparent
No

With bus connection
Yes

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352609181

1 NR

11.7x10.8x7.1 [cm]

343.6 [g]
