By-me 4M DIN FCU Controller - 01473

Download as PDF PDF Add to portfolio

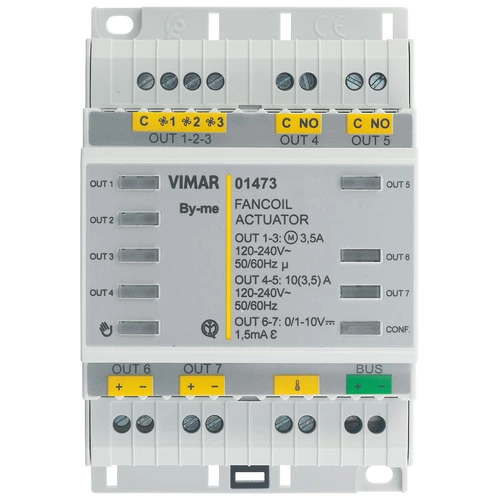

Immagine 01473
download product photo

01473
Smart systems&products / By-me Plus / Shared components / DIN devices

By-me 4M DIN FCU Controller
By-me Plus electronic control module with 1 NO 3.5 A relay output, 3-speed and proportional fan coil 50/60 Hz 120-240 VAC, 2 proportional analogue 0/1-10 V 1.5 mA outputs with re-scalable voltage, 2 NO 10(3.5) A 120-240 V~ 50/60Hz relay outputs, with function to control lights, fan coil, climate control, accesses, sprinkler system, push buttons for local control, By-me home automation system, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Product Status
3 - Active

Class group
Installation bus systems
Class
Analogue actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system KNX Secure
No
Bus system KNX Secure-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Mounting method
Other
Width in number of modular spacings
4
Model
Base module
With LED indication
Yes
With bus connection
Yes
Number of outputs
4
Output current
4 - 20 mA
Output voltage
0 - 10 V
Degree of protection (IP)
IP20

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352817678
1 NR

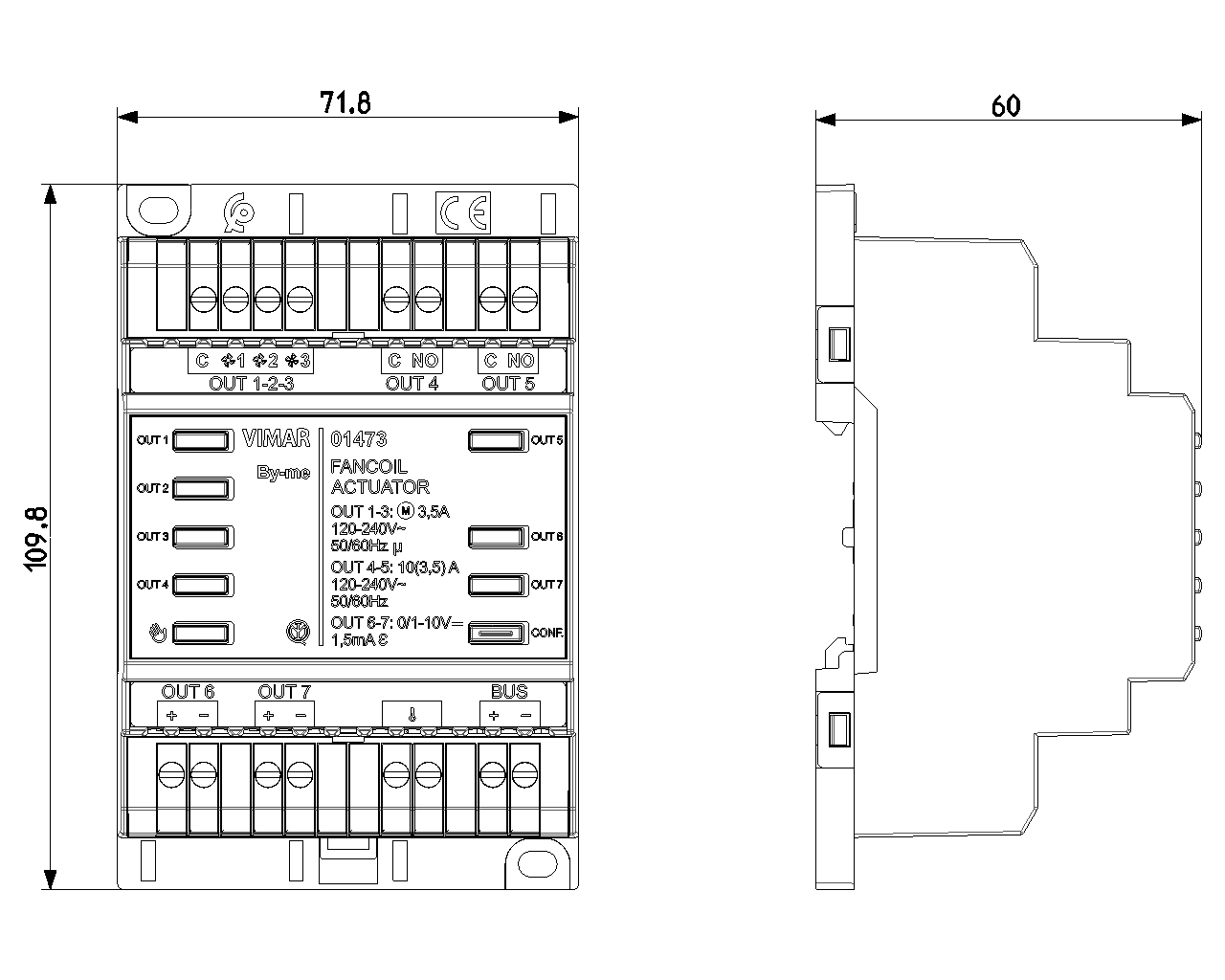

11.7x10.8x7.1 [cm]
337 [g]
