4-button home autom.control Flat 2M - 01480.AX

Pdf
Vimar - 01480.AX - 4-button home autom.control Flat 2M
Vimar - 01480.AX - 4-button home autom.control Flat 2M

01480.AX
Smart systems&products / By-me Plus / EIKON / Devices

4-button home autom.control Flat 2M
4-button home automation device, RGB LED location in darkness with brightness control, to be completed with interchangeable Eikon Exé Flat buttons - 2 modules

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

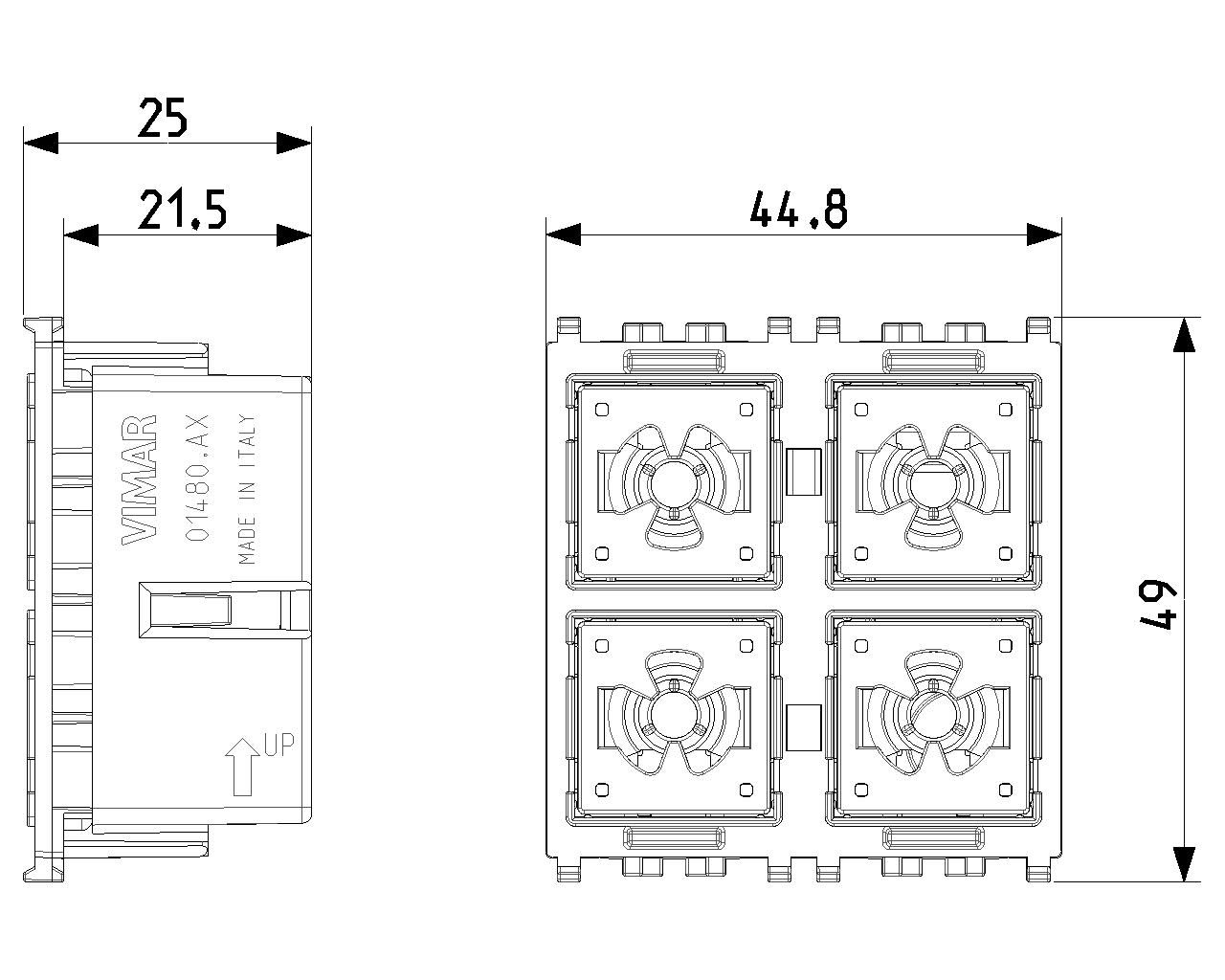

view encumbered art. 01480.AX
PNG DXF

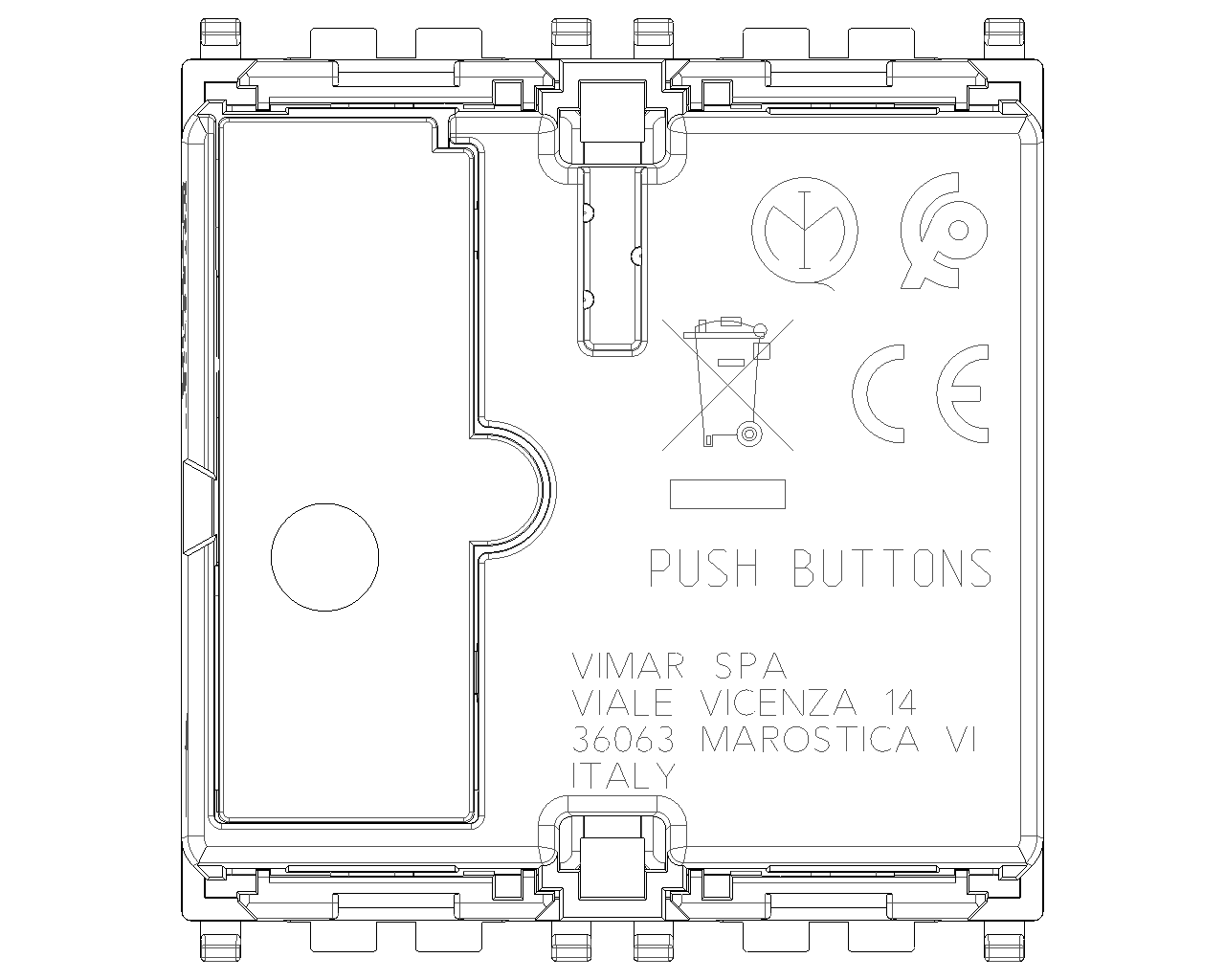

rear view art. 01480.AX
PNG DXF

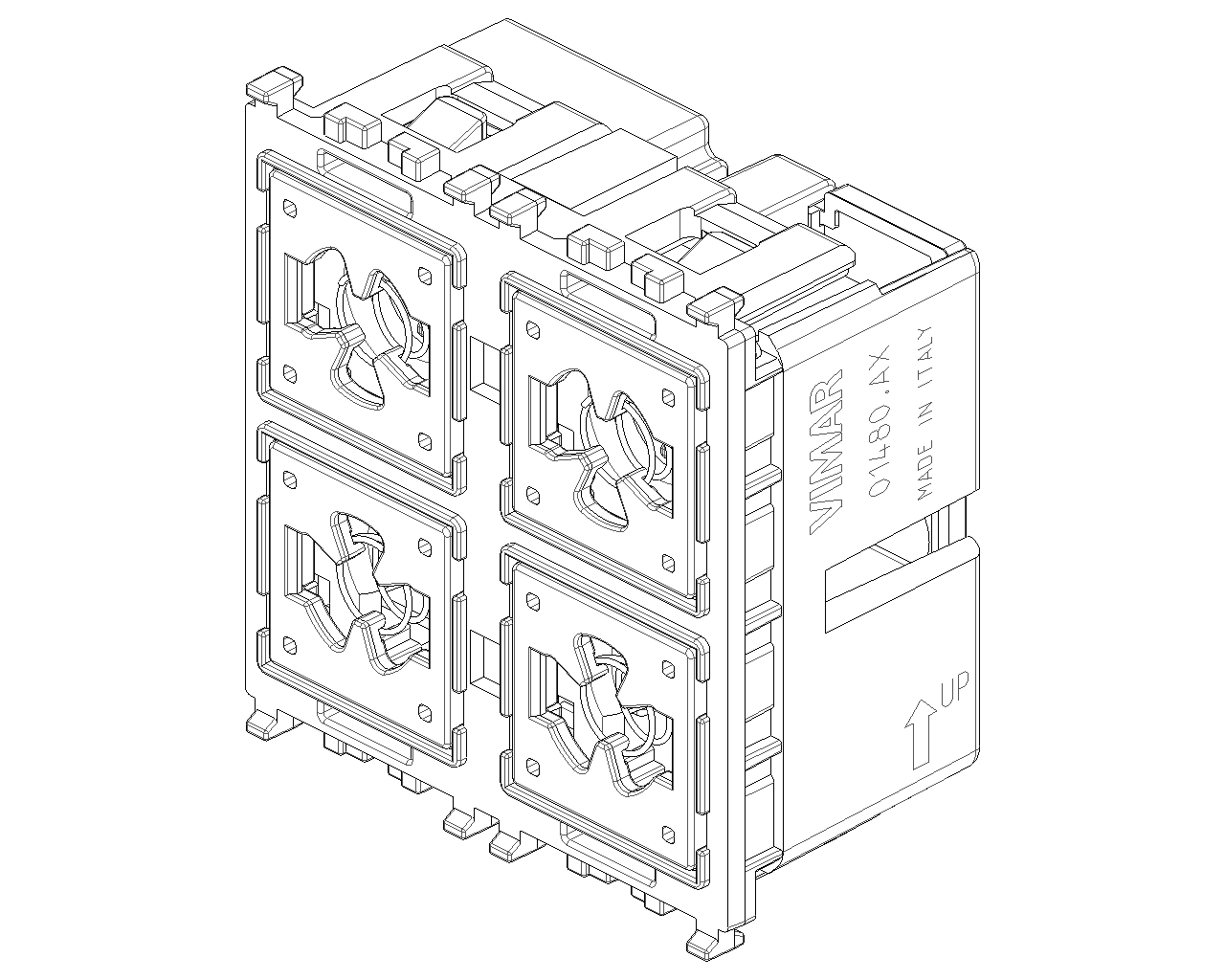

3D view art. 01480.AX
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Basic element with housing top
Model
Group push button
Method of operation
Push button
Number of modules (module system)
200
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Label space/information surface
Yes
Imprint
None
Device height
49,00 mm
Device depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352621428
1 NR
6x5.4x5.2 [cm]
43 [g]
Barcode Qty 60 NR
8007352633049
60 NR
37.5x30x13.5 [cm]
3,066 [g]
