01485.AX

Eikon EXÉ / Systems / Domotics - devices

6-button home autom.control Flat 3M
6-button home automation device, RGB LED location in darkness with brightness control, to be completed with interchangeable Eikon Exé Flat buttons - 3 modules

Product Status
4 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Basic element with housing top
Model
Group push button
Method of operation
Push button
Number of modules (module system)
3
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Label space/information surface
Yes
Imprint
None

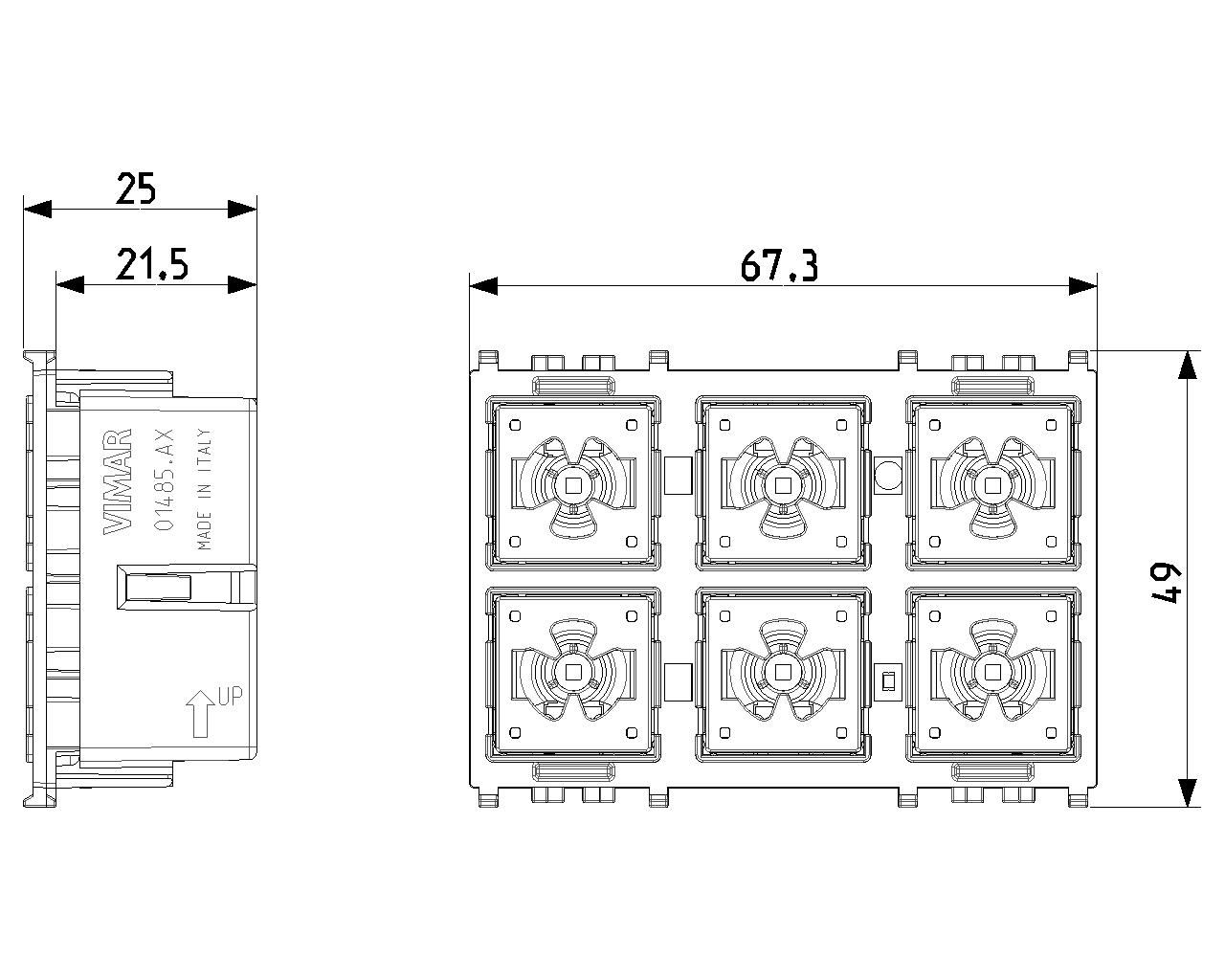

Height of device
49,00 mm
Depth of device
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352621442
1 NR
5.7x5.3x7.6 [cm]
54.2 [g]
Barcode Qty 5 NR
8007352628779
5 NR
21.4x11.6x6 [cm]
331.7 [g]
Barcode Qty 70 NR
8007352633094
70 NR
39.5x30x17 [cm]
4,643.8 [g]
