4-button control+dimm.LED 240V 2M - 01488

Pdf

01488
Smart systems&products / By-me Plus / Shared components / Devices

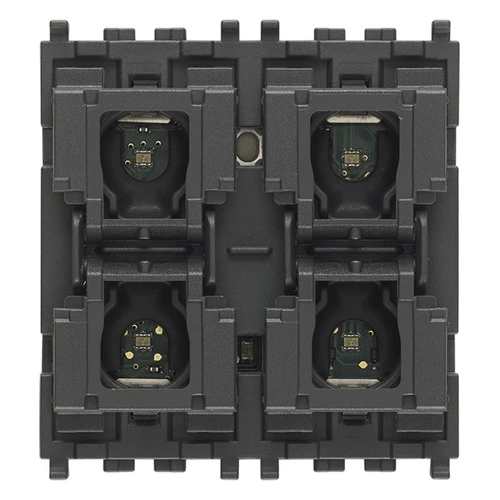

4-button control+dimm.LED 240V 2M
4-button home automation device and 240 V~ 50/60 Hz cutting-edge dimmer for 40-200 W incadescent lamps, 40-300 VA at 240 V~ and 20-150 VA at 120 V~ electronic transformers, 10-200 W at 240 V~, 5-100 W at 120 V~ CFL lamps, 3-200 W at 240 V~, 3-100 W at 120 V~ LED lamps, RGB LED location in darkness with brightness control, to be completed with interchangeable 1- or 2-module Eikon, Arké or Plana half-buttons -2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
No
With integrated DCF77 receiver
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
With bus connection
Yes

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352614031
1 NR
6x5.4x5.3 [cm]
67.4 [g]
Barcode Qty 10 NR
8007352614048
10 NR
28.1x13.1x6 [cm]
753.2 [g]
