Supply unit 640mA KNX - 01501.2

Pdf

01501.2
Smart systems&products / KNX / Shared components / DIN devices

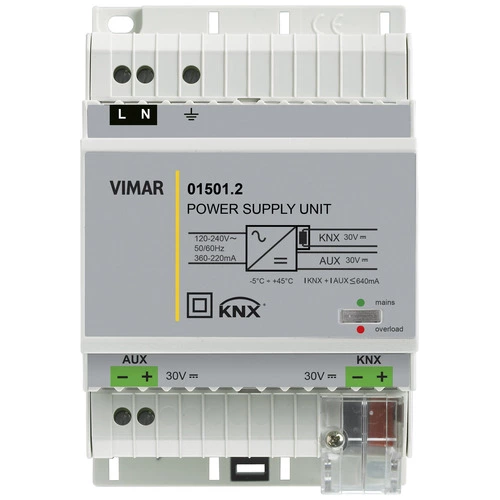

Supply unit 640mA KNX
Power supply unit for home automation with Bus output of 30 Vdc 640 mA, auxiliary output 30 V d.c., power supply 120-240 V~ 50/60 Hz, with decoupling coil, KNX standard, installation on DIN rail (60715 TH35) occupies 4 17,5 mm modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Power supply for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Mounting method
Other
Width in number of modular spacings
4
With LED indication
Yes
Bus voltage stockable
Yes
Number of lines to feed
2
Max. output current
640,00 mA

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352550148
1 NR
11.7x10.8x7.1 [cm]
276.8 [g]
