KNX secure microwave presence detector - 01527.2

Download as PDF PDF Add to portfolio

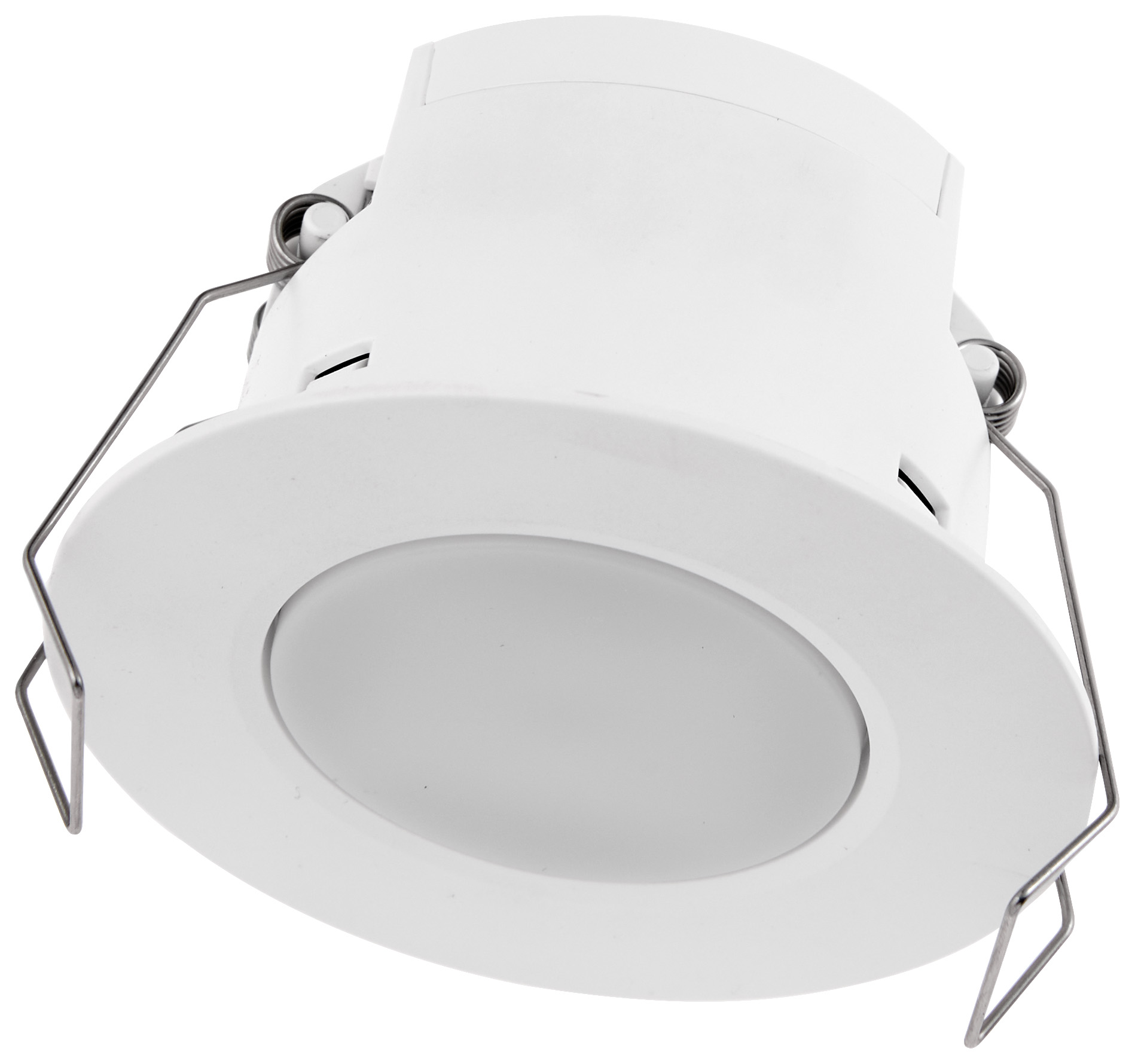

Immagine 01527.2

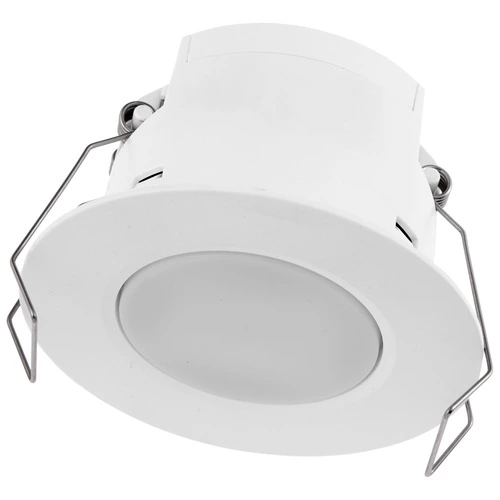

download product photo

01527.2
Smart systems&products / KNX / Surface mounting components / Non-modular components

KNX secure microwave presence detector
Detector with 360° infrared presence sensor for ON/OFF, constant control of illuminance, heating, air conditioning, ventilation according to brightness and/or movement, adjustable brightness range 1 - 1000 Lux, KNX secure standard, ceiling installation, dimensions 80x80x45 mm

Product Status
3 - Active

Class group
Installation bus systems
Class
Movement sensor for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequency)
No
Bus system KNX Secure
Yes
Bus system KNX Secure-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Compatible with Casambi
No
Radio frequency bidirectional
No
Model
Presence detector
Ceiling built-in mounting without installation box
Yes
Mounting method
Surface mounted
Suitable for ceiling mounting
Yes
Suitable for wall mounting
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
With bus connection
Yes
Substation input
No
Voltage supply over bus
Yes
Creep-under protection
No
Background monitoring
No
Operation mode switch
No
Animal zone
No
Switch-off delay self-learning
Yes
DALI-2 certified
No
Optimum mounting height
3,00 m
Diameter reach on floor
6,50 m
Width
65,00 mm
Height
65,00 mm
Depth
38,00 mm
Diameter
65,00 mm
Built-in width
65,00 mm
Built-in depth
38,00 mm
Built-in length
65,00 mm
Built-in diameter
53,00 mm
Min. depth of built-in installation box
38,00 mm
With connection cable
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352804203
1 NR
8x8x6.2 [cm]
74.5 [g]
