6-button KNX control Flat 3M - 01585.AX

01585.AX
Smart systems&products / KNX / EIKON / Devices

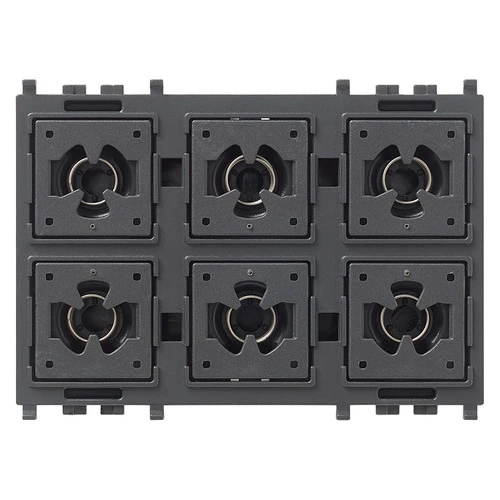

6-button KNX control Flat 3M
6-button KNX control Flat 3M

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (698 kb)
• Manuale installatore (2899 kb)
• Installer manual (1937 kb)

Product Software

• DB_ComandoSupervisione_KNX_REL-01.17_20230117.zip

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Multi operating device for bus system

Bus system KNX
Yes

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
No

Bus system LON
No

Bus system Powernet
No

Radio frequent bidirectional
No

Mounting method
Flush-mounted

Width in number of modular spacings
3

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

With bus connection
Yes

00. CE Marking - EU

27. KNX

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352621480

1 NR

5.7x5.3x7.7 [cm]

54.95 [g]

8007352633223

70 NR

39.5x30x17 [cm]

4,025 [g]
