2 buttons Flat w/o symbol white - 22751.0.01

Pdf
22751.0.01

Eikon EXÉ / Accessories / Vintage and Flat devices

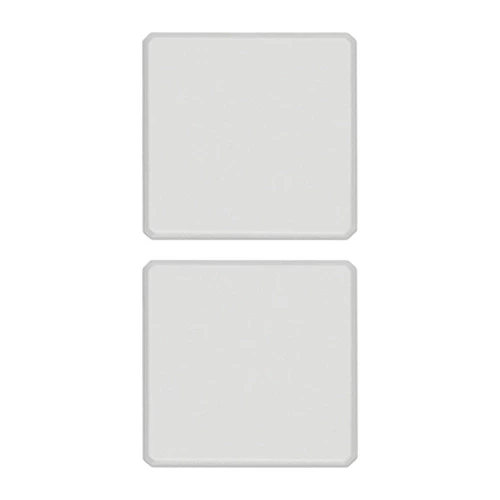

2 buttons Flat w/o symbol white
2 buttons Flat w/o symbol white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push-switch button
Assembly arrangement
Other
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
2
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Height of device
15,00 mm
Depth of device
8,25 mm
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352620988
1 NR
3.5x6.5x1.5 [cm]
2.62 [g]
Barcode Qty 20 NR
8007352620995
20 NR
14.5x11x7.5 [cm]
84.4 [g]
