Supply unit 100-240Vac 12Vdc 1,25A - 01831.1

Pdf
01831.1

Surface mounting equipments / Devices / Electronic devices

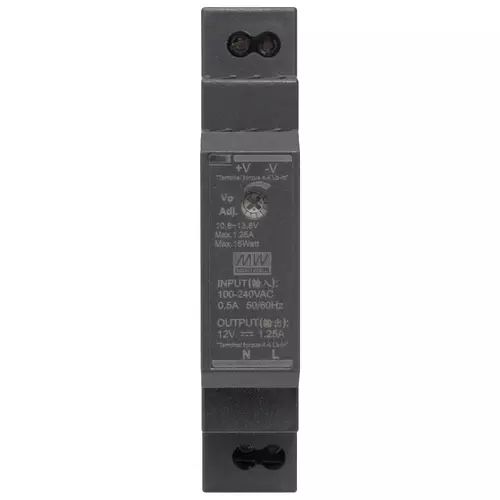

Supply unit 100-240Vac 12Vdc 1,25A
Power supply unit with 12 Vdc 1250 mA output, supply voltage 100-240 V~ 50/60 Hz, installation on DIN rail (60715 TH35), occupies 1 17.5 mm module

Product Status
3 - Active

Class group
Installation bus systems
Class
Power supply for bus system
Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
Yes
Bus system Powernet
No
Other bus systems
None
Mounting method
Other
Width in number of modular spacings
1
With LED indication
Yes
Bus voltage stockable
No
Number of lines to feed
1
Max. output current
1.250,00 mA

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352613102
1 NR
9.5x5.8x2.5 [cm]
80 [g]
