01860.60
Wiring devices / Traditional wiring devices / Shared components / Accessories

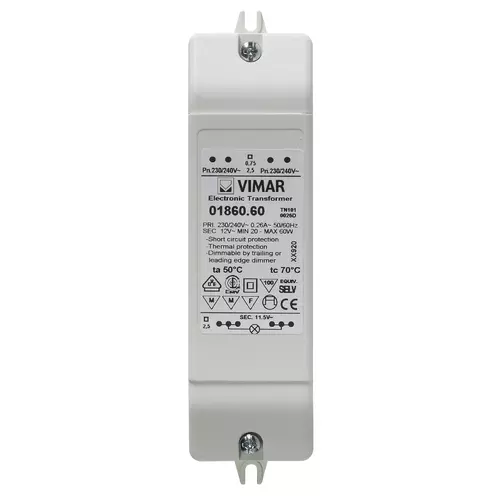

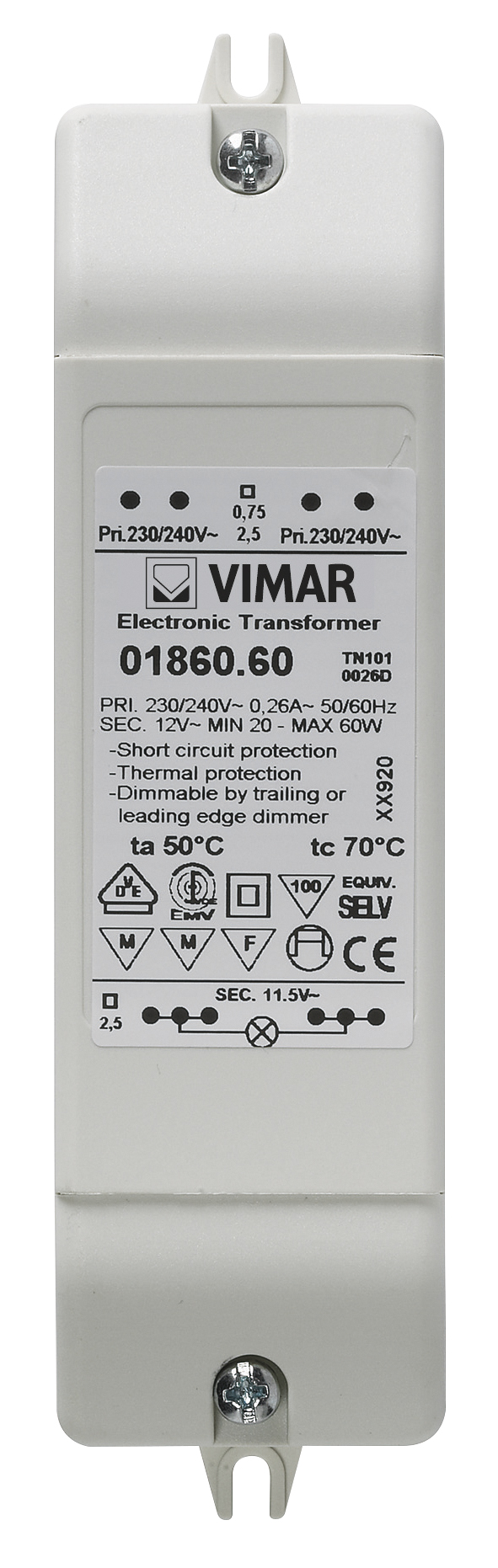

Transformer 20-60W
Dimmable electronic transformer for extra low voltage halogen lamps, 20-60 W 12 V~ (SELV) output, supply voltage 230-240 V~ 50-60 Hz
Product Status
2 - Will be discontinued
Sheets, Manuals, Documentation
Class group
Light control
Light control
Class
Transformer for low voltage light system/low voltage halogen lamp
Transformer for low voltage light system/low voltage halogen lamp
Type of transformer
Electronic transformer
Electronic transformer
Safety transformer
Yes
Yes
Input voltage
230 - 240 V
230 - 240 V
Output voltage
9 - 15 V
9 - 15 V
Power
20 - 60 W
20 - 60 W
Connection type primary side
Screw connection
Screw connection
Connection type secondary side
Screw connection
Screw connection
Surface-mounted
Yes
Yes
Built-in
Yes
Yes
Housing material
Plastic
Plastic
Colour
Other
Other
Short-circuit protected
Yes
Yes
Overload protection
Yes
Yes
Overtemperature protection
Yes
Yes
With secondary automatic circuit breaker
No
No
Number of output positions (pairs)
2
2
Length
39 mm
39 mm
Width
149 mm
149 mm
Height
27 mm
27 mm
Diameter
0 mm
0 mm
Minimum order quantity: 1 NR
Barcode
8007352240476
1 NR
15.2x4.1x3.3 [cm]
136.53 [g]
